RAM® Horizontal 6" Swing Arm Mount for Fishfinders & Plotters
Part#:UPC:
RAM-109HU
793442010910
- Features:
- Universal drill-down fishfinder mounting solution features 6" swing arm for ideal device placement

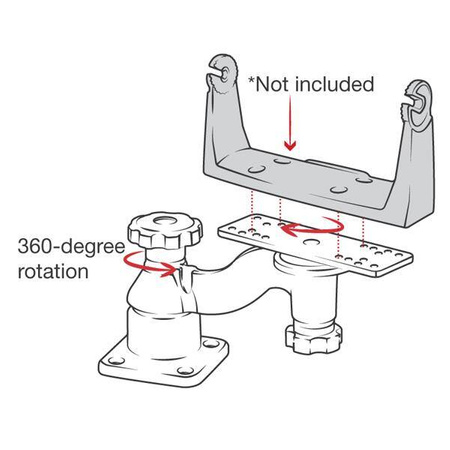

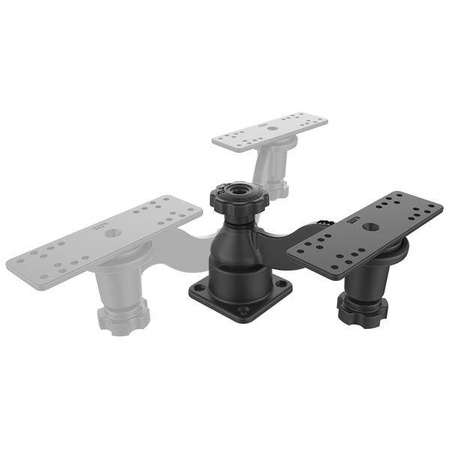

- Two pivot points allow for complete 360-degree rotation
- Made of powder-coated steel and high-strength composite
- Backed by a lifetime warranty
Brand
Symbol
RAM-109HU
Producer code
793442010910
Product Weight
948 g
1002 g
Product Dimensions
Overall Height: 5.41"|Total Swing Arm Length: 6"
Hole Pattern
Top Plate: See Drawing|Bottom Plate: 2.5" x 2.5"
AMPS 4-Hole
Plate Size
Top Plate: 6.25" x 2"|Bottom Plate: 3.47" x 3.47"
Weight Capacity
3628.74 gramss
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Component parts
RAM-109-1APU
RAM-109H-BU
RAM-111BTU
Garmin ECHOMAP Plus 72-97 Series
Garmin ECHOMAP UHD 62-95 Series
Garmin ECHOMAP Ultra 102sv
Garmin ECHOMAP Ultra 106sv
Garmin Fishfinders and GPS Chartplotters
Garmin GPSMAP 1223
Garmin GPSMAP 1223xsv
Garmin GPSMAP 1243
Garmin GPSMAP 1243xsv
Garmin GPSMAP 722
Garmin GPSMAP 722xs
Garmin GPSMAP 723
Garmin GPSMAP 723xsv
Garmin GPSMAP 742
Garmin GPSMAP 742xs
Garmin GPSMAP 743
Garmin GPSMAP 743xsv
Garmin GPSMAP 8410
Garmin GPSMAP 8410xsv
Garmin GPSMAP 8412
Garmin GPSMAP 8412xsv
Garmin GPSMAP 8416
Garmin GPSMAP 8416xsv
Garmin GPSMAP 8610
Garmin GPSMAP 8610xsv
Garmin GPSMAP 8612
Garmin GPSMAP 8612xsv
Garmin GPSMAP 8616
Garmin GPSMAP 8616xsv
Garmin GPSMAP 922
Garmin GPSMAP 922xs
Garmin GPSMAP 923
Garmin GPSMAP 923xsv
Garmin GPSMAP 942
Garmin GPSMAP 942xs
Garmin GPSMAP 943
Garmin GPSMAP 943xsv
Garmin Striker Plus 5cv
Garmin Striker Plus 7cv
Garmin Striker Plus 7sv
Garmin Striker Plus 9sv
Garmin Striker Vivid 5cv
Garmin Striker Vivid 7cv
Garmin Striker Vivid 7sv
Garmin Striker Vivid 9sv
Garmin echoMAP Chirp 72-95 Series
Humminbird Apex 13
Humminbird Apex 16
Humminbird Fishfinders and GPS Chartplotters
Humminbird Helix 10
Humminbird Helix 12
Humminbird Helix 15
Humminbird Helix 8
Humminbird Helix 9
Humminbird Solix 15
Lowrance Elite FS 7
Lowrance Fishfinders and GPS Chartplotters
Lowrance HDS Carbon 7
Lowrance HDS LIVE 12
Lowrance HDS LIVE 7
Lowrance HDS LIVE 9
Lowrance HOOK-9
Lowrance Hook Reveal 7 Series
Lowrance Hook Reveal 9 Series
Raymarine Fishfinders and GPS Chartplotters
Garmin ECHOMAP UHD2 5"
Garmin ECHOMAP UHD2 7"
Garmin ECHOMAP UHD2 9"
Lowrance HDS PRO 9
Lowrance HDS PRO 10
Lowrance HDS PRO 12
Lowrance HDS PRO 16
Garmin ECHOMAP Ultra 2 10"
Garmin ECHOMAP Ultra 2 12"
Lowrance Eagle 7
Lowrance Eagle 9
Ask a question
Write your opinion
- View details

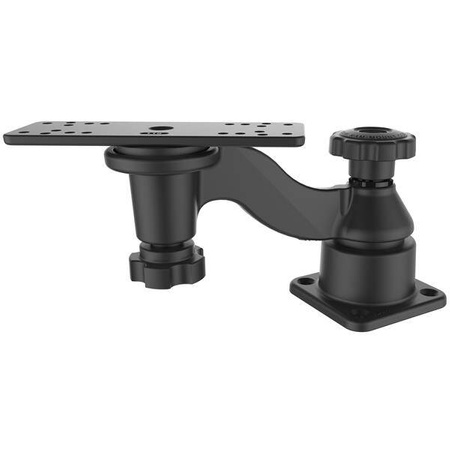

The RAM-109HU consists of a 6" long bent swing arm mounted on a horizontal surface base. At the device mounting end is a rectangular 6.25" x 2" plate. There are two pivoting points on the mount: one at the base of the swing arm and one at the center of the rectangular plate. Each pivoting point allows a complete 360-degree rotation. BrandSymbolRAM-109HUProducer code793442010910Product Weight948 g1002 gProduct DimensionsOverall Height: 5.41"|Total Swing Arm Length: 6"Hole PatternTop Plate: See Drawing|Bottom Plate: 2.5" x 2.5"AMPS 4-HolePlate SizeTop Plate: 6.25" x 2"|Bottom Plate: 3.47" x 3.47"Weight Capacity3628.74 gramssMaterialsMarine-grade aluminumPackaging TypePoly BagMounting TypeDrill DownDevice or Accessory TypeFishfinderChartplotterVehicle TypePower BoatComponent partsRAM-109-1APURAM-109H-BURAM-111BTU - CompatibilityGarmin ECHOMAP Plus 72-97 SeriesGarmin ECHOMAP UHD 62-95 SeriesGarmin ECHOMAP Ultra 102svGarmin ECHOMAP Ultra 106svGarmin Fishfinders and GPS ChartplottersGarmin GPSMAP 1223Garmin GPSMAP 1223xsvGarmin GPSMAP 1243Garmin GPSMAP 1243xsvGarmin GPSMAP 722Garmin GPSMAP 722xsGarmin GPSMAP 723Garmin GPSMAP 723xsvGarmin GPSMAP 742Garmin GPSMAP 742xsGarmin GPSMAP 743Garmin GPSMAP 743xsvGarmin GPSMAP 8410Garmin GPSMAP 8410xsvGarmin GPSMAP 8412Garmin GPSMAP 8412xsvGarmin GPSMAP 8416Garmin GPSMAP 8416xsvGarmin GPSMAP 8610Garmin GPSMAP 8610xsvGarmin GPSMAP 8612Garmin GPSMAP 8612xsvGarmin GPSMAP 8616Garmin GPSMAP 8616xsvGarmin GPSMAP 922Garmin GPSMAP 922xsGarmin GPSMAP 923Garmin GPSMAP 923xsvGarmin GPSMAP 942Garmin GPSMAP 942xsGarmin GPSMAP 943Garmin GPSMAP 943xsvGarmin Striker Plus 5cvGarmin Striker Plus 7cvGarmin Striker Plus 7svGarmin Striker Plus 9svGarmin Striker Vivid 5cvGarmin Striker Vivid 7cvGarmin Striker Vivid 7svGarmin Striker Vivid 9svGarmin echoMAP Chirp 72-95 SeriesHumminbird Apex 13Humminbird Apex 16Humminbird Fishfinders and GPS ChartplottersHumminbird Helix 10Humminbird Helix 12Humminbird Helix 15Humminbird Helix 8Humminbird Helix 9Humminbird Solix 15Lowrance Elite FS 7Lowrance Fishfinders and GPS ChartplottersLowrance HDS Carbon 7Lowrance HDS LIVE 12Lowrance HDS LIVE 7Lowrance HDS LIVE 9Lowrance HOOK-9Lowrance Hook Reveal 7 SeriesLowrance Hook Reveal 9 SeriesRaymarine Fishfinders and GPS ChartplottersGarmin ECHOMAP UHD2 5"Garmin ECHOMAP UHD2 7"Garmin ECHOMAP UHD2 9"Lowrance HDS PRO 9Lowrance HDS PRO 10Lowrance HDS PRO 12Lowrance HDS PRO 16Garmin ECHOMAP Ultra 2 10"Garmin ECHOMAP Ultra 2 12"Lowrance Eagle 7Lowrance Eagle 9
