RAM® Horizontal Swing Arm Mount for Lowrance Elite-5 Series
RAM® Horizontal Swing Arm Mount for Lowrance Elite-5 Series
RAM® Horizontal Swing Arm Mount for Lowrance Elite-5 Series
RAM® Horizontal Swing Arm Mount for Lowrance Elite-5 Series

RAM® Horizontal Swing Arm Mount for Lowrance Elite-5 Series

Part#:
RAM-109H-2B-B-LO11
UPC:
793442952142
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price280,15 €
290,12 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

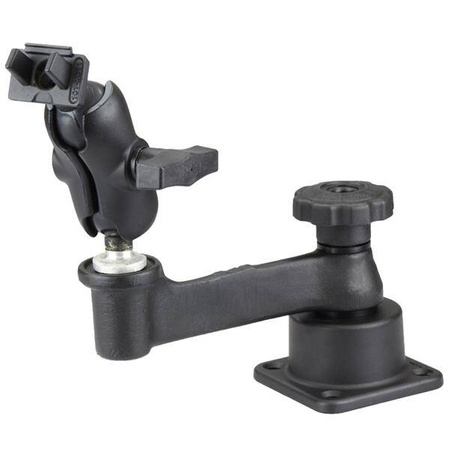

The RAM-109H-2B-B-LO11 consists of a 6" long STRAIGHT swing arm mounted on a horizontal surface mounting base. At the free end of the mount swing arm is a C size 1.5" ball.The connection between the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM ball and socket system. The bolt pivoting point allows a complete 360-degree rotation and the ball and socket system allows a 180-degree vertical pivot with a 360-degree rotation. Included is a short length C size double socket arm, also included is the RAM Lowrance adapter base includes a 1.5" diameter rubber ball and inserts directly to the back of Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti, HOOK-3, HOOK-4, HOOK-5 and MARK-5 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds.
Brand
RAM Mounts
Symbol
RAM-109H-2B-B-LO11
Producer code
793442952142
Product Weight
1070 g
Socket-to-Socket Length
3.56"
Hole Pattern
2.5" x 2.5"
Plate Size
3.47" x 3.47"
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Component parts
RAM-109H-2BU
RAM-201U-B
RAM-202U-LO11
Socket To Socket Length
3.56"
Ball Size
C Size (1.5")
Lowrance Elite-5
Lowrance Elite-5 Ti
Lowrance Elite-7 Ti
Lowrance Elite-7 Ti²
Lowrance HOOK-3
Lowrance HOOK-4
Lowrance HOOK-5
Lowrance MARK-5
Simrad GO5 XSE
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:
  • View details
    The RAM-109H-2B-B-LO11 consists of a 6" long STRAIGHT swing arm mounted on a horizontal surface mounting base. At the free end of the mount swing arm is a C size 1.5" ball.The connection between the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM ball and socket system. The bolt pivoting point allows a complete 360-degree rotation and the ball and socket system allows a 180-degree vertical pivot with a 360-degree rotation. Included is a short length C size double socket arm, also included is the RAM Lowrance adapter base includes a 1.5" diameter rubber ball and inserts directly to the back of Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti, HOOK-3, HOOK-4, HOOK-5 and MARK-5 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds.
    Brand
    RAM Mounts
    Symbol
    RAM-109H-2B-B-LO11
    Producer code
    793442952142
    Product Weight
    1070 g
    Socket-to-Socket Length
    3.56"
    Hole Pattern
    2.5" x 2.5"
    Plate Size
    3.47" x 3.47"
    Weight Capacity
    Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
    Materials
    Marine-grade aluminum
    Packaging Type
    Poly Bag
    Mounting Type
    Drill Down
    Ball & Socket Size
    C Size 1.5" (Holds 1814.37 gramss)
    Device or Accessory Type
    Fishfinder
    Chartplotter
    Vehicle Type
    Power Boat
    Component parts
    RAM-109H-2BU
    RAM-201U-B
    RAM-202U-LO11
    Socket To Socket Length
    3.56"
    Ball Size
    C Size (1.5")
  • Compatibility
    Lowrance Elite-5
    Lowrance Elite-5 Ti
    Lowrance Elite-7 Ti
    Lowrance Elite-7 Ti²
    Lowrance HOOK-3
    Lowrance HOOK-4
    Lowrance HOOK-5
    Lowrance MARK-5
    Simrad GO5 XSE
