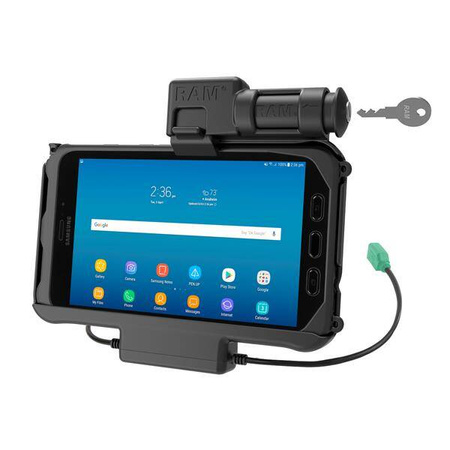

RAM® Key Locking Power + Data Dock for Samsung Tab Active5 & 3
Part#:UPC:
RAM-HOL-SAM58PDKLU
793442009938
- Features:
- Powered cradle featuring keyed lock for the Samsung Galaxy Tab Active3 and Tab Active2
- RAM® Mounts Compatible™ with AMPS hole pattern components
- Made of high-strength composite materials for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
- Key locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active3 and Tab Active2 through integrated pogo pin connector and mUSB cable

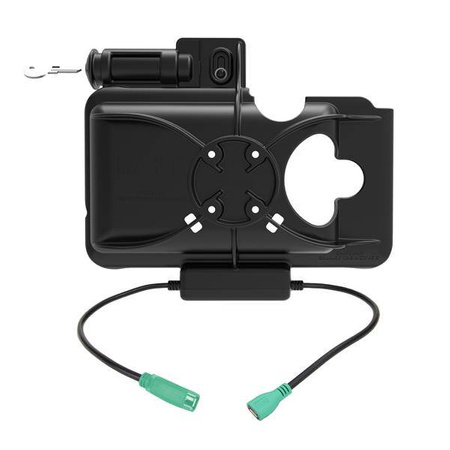

- Contains 4-hole AMPS hole pattern for RAM® ball components
- Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Key locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and mUSB cable

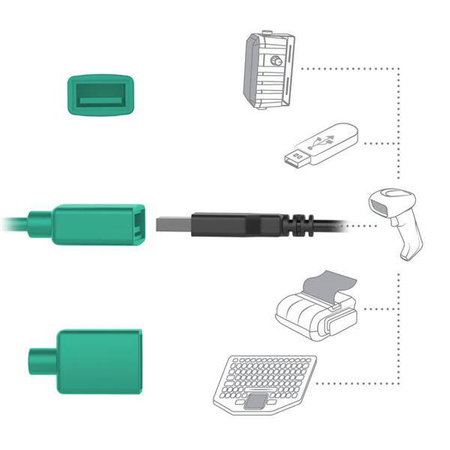

- Power delivered via mUSB connector; connect a single input device via USB-A connector
Brand
Symbol
RAM-HOL-SAM58PDKLU
Producer code
793442009938
Series
Product Weight
544 g
553 g
Hardware Included

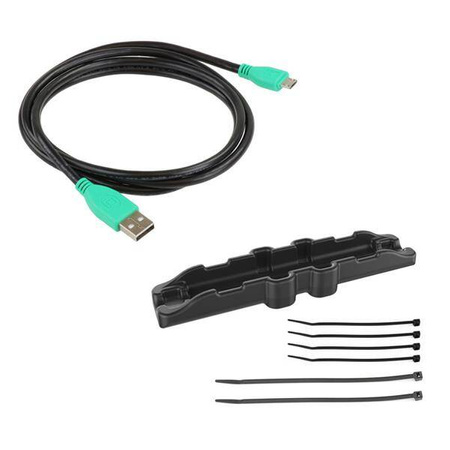

(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) GDS® Genuine USB 2.0 Straight Cable|(1) Optional Cable Clamp Housing|(2) Large Cable Ties|(7) Small Cable Ties
Product Dimensions
Width: 9.25"|Height: 7.75"|Depth: 3"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
4.4VDC - 5.4VDC (USB power source dependent)
4.4-5.4VDC (USB power source dependent)
Output Voltage
5.20VDC
Power Output
500mA
Input Connector
mUSB 2.0 Female
Input Cable Length
.22 Meter
214mm
Output Connector
USB 1.1 Type A
Output Cable Length
.22 Meter
215mm
Transfer Speed
12Mbps
Device or Accessory Type
Tablet
Component parts
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CAB-MUSB2-1
Peripheral Output
500mAh
Samsung Tab Active2
Samsung Tab Active3
Samsung Tab Active5
Ask a question
Write your opinion
- View details
This key locking RAM EZ-Rollr power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS pogo pins while taking advantage of this cradle's USB-A port for an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS Hand-Stand attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle. BrandSymbolRAM-HOL-SAM58PDKLUProducer code793442009938SeriesProduct Weight544 g553 gHardware Included(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) GDS® Genuine USB 2.0 Straight Cable|(1) Optional Cable Clamp Housing|(2) Large Cable Ties|(7) Small Cable TiesProduct DimensionsWidth: 9.25"|Height: 7.75"|Depth: 3"Hole Pattern4-Hole AMPS: 1.181" x 1.496"AMPS 4-HoleMaterialsHigh strength compositePackaging TypePoly BagInput Voltage4.4VDC - 5.4VDC (USB power source dependent)4.4-5.4VDC (USB power source dependent)Output Voltage5.20VDCPower Output500mAInput ConnectormUSB 2.0 FemaleInput Cable Length.22 Meter214mmOutput ConnectorUSB 1.1 Type AOutput Cable Length.22 Meter215mmTransfer Speed12MbpsDevice or Accessory TypeTabletComponent partsRAM-GDS-CAB-CLAMP1URAM-GDS-CAB-MUSB2-1Peripheral Output500mAh - CompatibilitySamsung Tab Active2Samsung Tab Active3Samsung Tab Active5
