RAM® Level Cup™ 16oz Drink Holder with ATV/UTV Rail Base
RAM® Level Cup™ 16oz Drink Holder with ATV/UTV Rail Base
RAM® Level Cup™ 16oz Drink Holder with ATV/UTV Rail Base
RAM® Level Cup™ 16oz Drink Holder with ATV/UTV Rail Base
RAM® Level Cup™ 16oz Drink Holder with ATV/UTV Rail Base
RAM® Level Cup™ 16oz Drink Holder with ATV/UTV Rail Base

RAM® Level Cup™ 16oz Drink Holder with ATV/UTV Rail Base

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price101,53 €
105,16 €
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions
  • View details

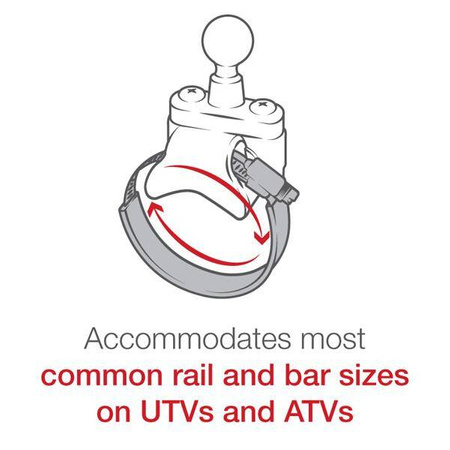

    The RAM-B-132R-2U consists of a steel strap base, zinc coated u-bolt base, double socket arm, 1" diameter balland a RAM Level Cup Self-Leveling Drink Holder with RAM can insulator. Designed for a clean installation, the RAM strap base will accommodate roll bars from 1.57" to 3.14" in diameter, letting you keep your favorite beverage within reach. Safely concealing the strap clamp in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening.The stainless steel u-bolt base Accommodates rails from 0.5" to 1" in diameter and includes black cover caps to be placed over the exposed ends of the u-bolt. The RAM B size 1" diameter patented rubber ball and socket system has adjustment points at both ends of the double socket arm. Wth a twist of the arm knob, you can move the Self Leveling Cup Holder mount to your optimum position. Take a corner as hard as you like, this holder is ready to ride. The integrated eyelet and hook provide an optional tethering function, securing any small or open container in any harsh environment. Compatible with any cups, cans, bottles or mugs ranging from 2.5" to 3.5" diameter.
    Symbol
    RAM-B-132R-2U
    Producer code
    793442915246
    Series
    Product Weight
    395 g
    Hardware Included
    (1) Strap Clamp Adapter|(2) 1/4"-20 x 1" Machine Screws|(2) 1/4"-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6" Rubber Strip|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) Rubber Caps|(1) U-Bolt Spacer
    Drink Size
    12-16 oz
    Clamp Range
    U-Bolt: .5" - 1" diameter|Strap Clamp: 1.57" - 3.15" diameter
    Socket-to-Socket Length
    3"
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|High strength composite
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Medium Arm
    Device or Accessory Type
    Drink
    Vehicle Type
    ATV
    UTV
    Component parts
    RAM-B-132BU
    RAM-B-201U
    RAM-B-231-2
    Socket To Socket Length
    3"
    Ball Size
    B Size (1")
