RAM® Lift Truck Overhead Guard Base
RAM® Lift Truck Overhead Guard Base
RAM® Lift Truck Overhead Guard Base
RAM® Lift Truck Overhead Guard Base

RAM® Lift Truck Overhead Guard Base

Availability and ShippingQuantity
Product made to order
Product made to order
List price188,80 €
213,06 €
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping

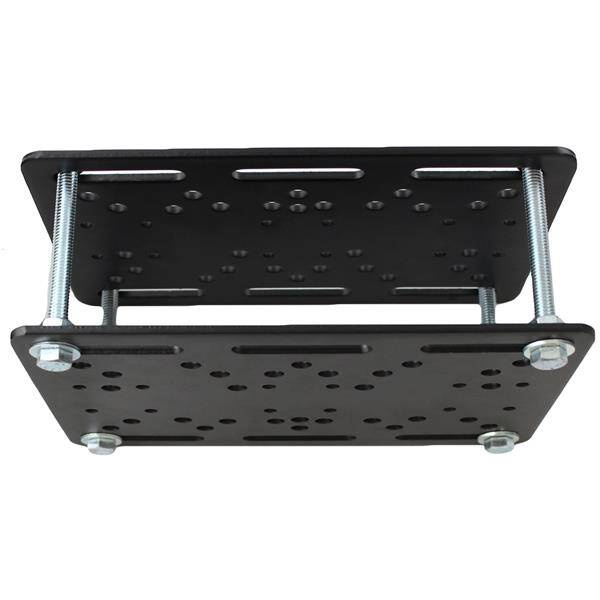

Sometimes the simplest solution makes the most sense. The new RAM Lift Truck Back-Up Mounting Plate is the ideal way to get a RAM ball attached to most any lift cage or overhead guard. Utilizing two identical plates of stamped steel with numerous common hole patterns and slots makes attachment a breeze. Three popular ball sizes: 1.5", 2.25 & 3.68" diameter may be attached to this plate system. Up to 2 balls may be attached to the same plate for multiple applications.
Producer code
Hardware Included
(4) 3/8"-16 x 4" Zinc Hex Bolts|(4) 3/8"-16 Zinc Hex Nuts|(4) 3/8" Zinc Lock Washers|(8) 3/8" Zinc Flat Washers|(4) 5/16"-18 x 1" Hex Bolts|(4) 5/16"-18 Zinc Hex Nuts|(4) 5/16" Zinc Lock Washers|(4) 5/16" Zinc Flat
Hole Pattern

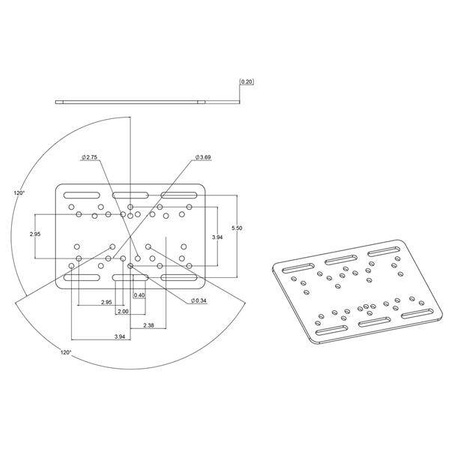

See Drawing
AMPS 4-Hole
100 x 100 VESA
Powder coated steel
Packaging Type
Mounting Type
Flat Edge Clamp
Diameter Range
1" - 1.25"
Vehicle Type
Lift Truck
