RAM® Locking Modular Power + Dual USB Dock for Tab Active5 & 3
RAM® Locking Modular Power + Dual USB Dock for Tab Active5 & 3
RAM® Locking Modular Power + Dual USB Dock for Tab Active5 & 3
RAM® Locking Modular Power + Dual USB Dock for Tab Active5 & 3
RAM® Locking Modular Power + Dual USB Dock for Tab Active5 & 3
RAM® Locking Modular Power + Dual USB Dock for Tab Active5 & 3
RAM® Locking Modular Power + Dual USB Dock for Tab Active5 & 3
RAM® Locking Modular Power + Dual USB Dock for Tab Active5 & 3

RAM® Locking Modular Power + Dual USB Dock for Tab Active5 & 3

Part#:
RAM-HOL-SAM58PD2KLNU
UPC:
793442016332
+ Add to compareAdd to shopping list
  • Features:

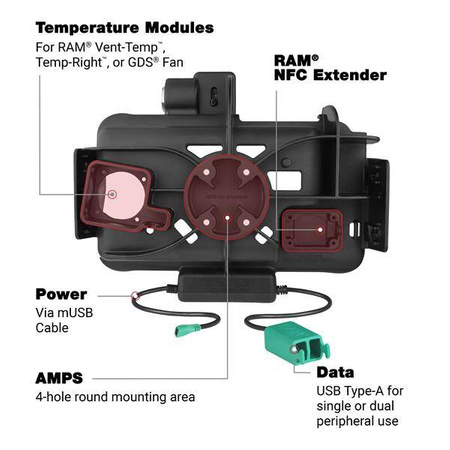

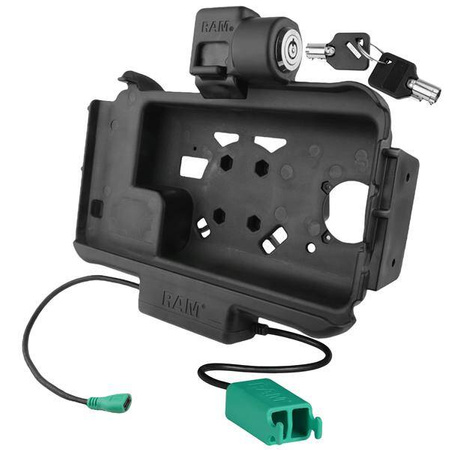

  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active3; provides charging through an integrated pogo pin connection and mUSB cable
  • Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments
  • Connect two additional peripherals via USB Type-A
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™
  • Backed by a 3-year warranty
  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 and Tab Active 3; provides charging through an integrated pogo pin connection and mUSB cable
  • Power delivered via mUSB connector; connect up to 2 input devices via dual USB-A connector
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
317,32 €
/ pc incl. VAT
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
The RAM Locking Modular Power + Dual USB Dock for Tab Active5 & Tab Active3 (RAM-HOL-SAM58PD2KLNU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS pogo pins while taking advantage of this cradle's dual USB port to support up to two additional peripherals, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM Skin or factory device skin along with most RAM accessories including: Temperature Control Accessories, RAM NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS Hand-Stand but are compatible with the GDS Roto-Mag. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS USB 2.0 cable, cable clamp, and zip ties.
Brand
RAM Mounts
Symbol
RAM-HOL-SAM58PD2KLNU
Producer code
793442016332
Product Weight
522 g
Hardware Included
(2) Keys|(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) GDS® Genuine USB 2.0 Straight Cable|(1) Optional Cable Clamp Housing|(2) Large Cable Ties|(8) Small Cable Ties
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
4.4-5.4VDC (USB power source dependent)
Output Voltage
4.4VDC - 5.4VDC (USB power source dependent)
Input Connector
mUSB Female
Input Cable Length
214mm
Output Connector
(2) USB 2.0 Type A
Output Cable Length
217mm
Transfer Speed
12Mbps
Component parts
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CAB-MUSB2-1
Peripheral Output
900mAh (per port)
Samsung Tab Active3
Samsung Tab Active5
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:
  • View details
    The RAM Locking Modular Power + Dual USB Dock for Tab Active5 & Tab Active3 (RAM-HOL-SAM58PD2KLNU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS pogo pins while taking advantage of this cradle's dual USB port to support up to two additional peripherals, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM Skin or factory device skin along with most RAM accessories including: Temperature Control Accessories, RAM NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS Hand-Stand but are compatible with the GDS Roto-Mag. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS USB 2.0 cable, cable clamp, and zip ties.
    Brand
    RAM Mounts
    Symbol
    RAM-HOL-SAM58PD2KLNU
    Producer code
    793442016332
    Product Weight
    522 g
    Hardware Included
    (2) Keys|(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) GDS® Genuine USB 2.0 Straight Cable|(1) Optional Cable Clamp Housing|(2) Large Cable Ties|(8) Small Cable Ties
    Hole Pattern
    4-Hole AMPS: 1.181" x 1.496"
    Materials
    High strength composite
    Packaging Type
    Poly Bag
    Input Voltage
    4.4-5.4VDC (USB power source dependent)
    Output Voltage
    4.4VDC - 5.4VDC (USB power source dependent)
    Input Connector
    mUSB Female
    Input Cable Length
    214mm
    Output Connector
    (2) USB 2.0 Type A
    Output Cable Length
    217mm
    Transfer Speed
    12Mbps
    Component parts
    RAM-GDS-CAB-CLAMP1U
    RAM-GDS-CAB-MUSB2-1
    Peripheral Output
    900mAh (per port)
  • Compatibility
    Samsung Tab Active3
    Samsung Tab Active5
