RAM® Locking Powered Dock + USB-A for Honeywell CT40/45/47 - Heated Pins
Part#:UPC:
RAM-HOL-HON12PDHLU
793442019319
- Features:
- Spring-loaded form-fit dock perfectly secures the Honeywell CT40/45/47 Handheld Computer; provides power through 1-meter long DC connector and supports a single peripheral via USB Type-A pigtail connector

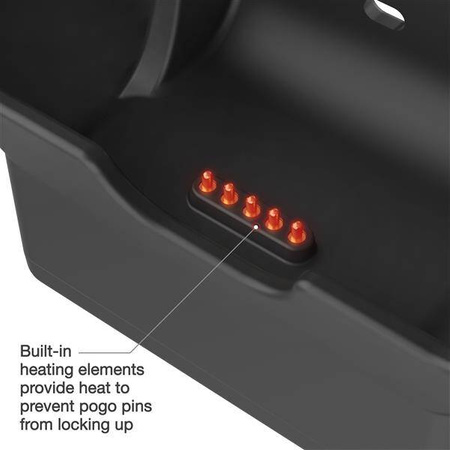

- Heated pogo pins combat ice and ensure a secure connection in harsh, cold environments
- Compatible with RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
Brand
Symbol
RAM-HOL-HON12PDHLU
Producer code
793442019319
Hardware Included
(2) Keys|(2) #8-32 x 5/8" Machine Screws|(2) #8-32 x 3/4" Machine Screws|(2) #8-32 Nylock Nuts
Product Dimensions
Overall Height: 7.83"|Overall Width: 3.7"|Overall Depth: 3.17"
Hole Pattern
2-Hole AMPS: 1.912"
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
5 VDC
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Output Connector
USB 2.0 Type A Female
Output Cable Length
1 Meter
Certifications
FCC, IC, CE, UKCA, RoHS, WEEE
Product Weight
440 g
Peripheral Output
500mAh
Honeywell CT40
Honeywell CT45
Honeywell CT47
Ask a question
Write your opinion
- View details

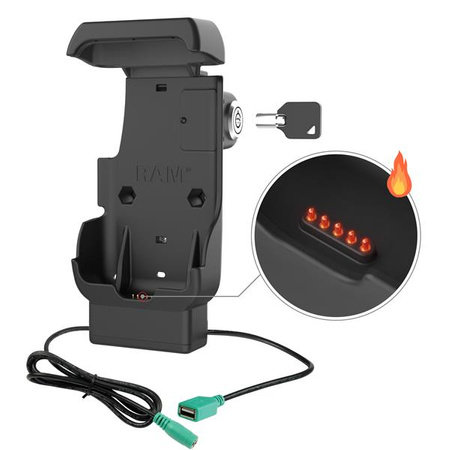

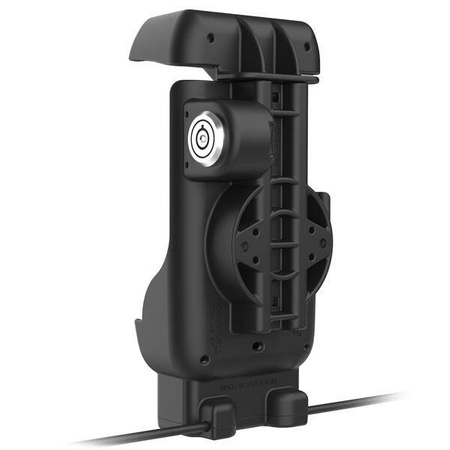

The RAM Powered Dock + USB-A for Honeywell CT40/45/47 - Heated Pins (RAM-HOL-HON12PDHU) is a spring-loaded, form-fit powered dock that allows workers to secure and charge their Honeywell device. Power to the device is delivered via a 1m long female 5.5mm DC barrel connector and supports a single peripheral device via USB-A female connector. This dock includes an integrated stylus holder that snaps your stylus into place while not in use and is designed to accommodate OEM accessories, such as the hand strap. The top cup of the holder features a cut-out, so workers can utilize the device's scanner while docked. This holder comes with optional inserts to support devices with or without the protective rubber boot. The key lock provides theft deterrence and extra security for peace of mind. Combat harsh, freezing environments with heated pogo pins integrated into the dock to ensure a secure connection and prevent the pins from locking up due to ice. Complete your solution by adding a compatible RAM two-hole AMPS pattern diamond base and double ball mount, allowing for a wide variety of mounting options (hardware included). BrandSymbolRAM-HOL-HON12PDHLUProducer code793442019319Hardware Included(2) Keys|(2) #8-32 x 5/8" Machine Screws|(2) #8-32 x 3/4" Machine Screws|(2) #8-32 Nylock NutsProduct DimensionsOverall Height: 7.83"|Overall Width: 3.7"|Overall Depth: 3.17"Hole Pattern2-Hole AMPS: 1.912"MaterialsHigh strength compositePackaging TypePoly BagInput Voltage5 VDCInput Connector5.5mm DC ConnectorInput Cable Length1 MeterOutput ConnectorUSB 2.0 Type A FemaleOutput Cable Length1 MeterCertificationsFCC, IC, CE, UKCA, RoHS, WEEEProduct Weight440 gPeripheral Output500mAh - CompatibilityHoneywell CT40Honeywell CT45Honeywell CT47
