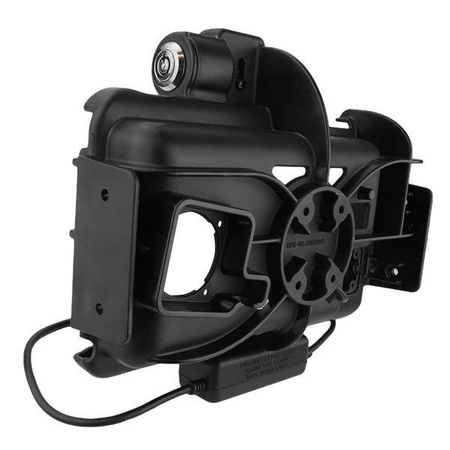

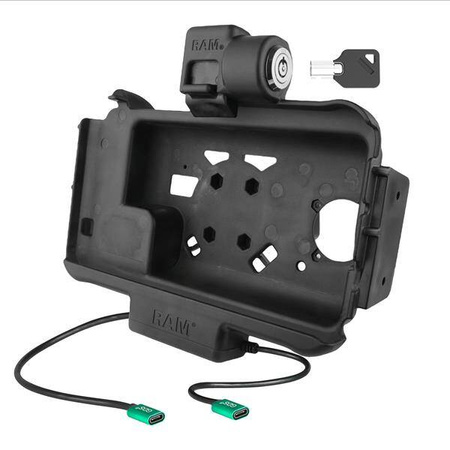

RAM® Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & 3
RAM® Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & 3
RAM® Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & 3
RAM® Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & 3
RAM® Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & 3
RAM® Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & 3
RAM® Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & 3
RAM® Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & 3

RAM® Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & 3

Part#:
RAM-HOL-SAM58CPKLN-CU
UPC:
793442017865
+ Add to compareAdd to shopping list
  • Features:

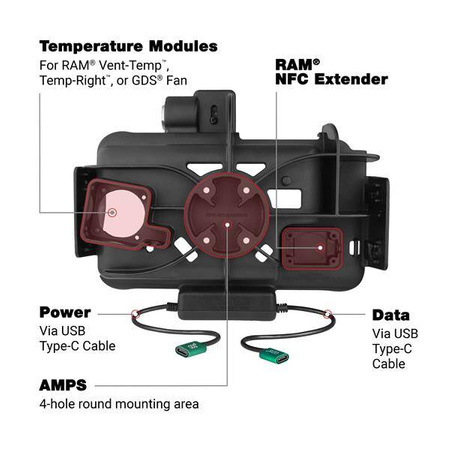

  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active3; provides charging through an integrated pogo pin connection and USB Type-C cable
  • Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments
  • Connect one additional peripheral via USB Type-C
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™
  • Backed by a 3-year warranty
  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB Type-C cable
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
353,39 €
/ pc incl. VAT
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
The RAM Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLN-CU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS pogo pins while taking advantage of this cradle's USB port to support one additional peripheral, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM Skin or factory device skin along with most RAM accessories including: Temperature Control Accessories, RAM NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS Hand-Stand but are compatible with the GDS Roto-Mag. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. Also included is the USB Type-C female pigtail, cable clamp, and zip ties.
Brand
RAM Mounts
Symbol
RAM-HOL-SAM58CPKLN-CU
Producer code
793442017865
Product Weight
490 g
494 g
Hardware Included
(2) Keys|(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(2) Cable Clamps|(4) Large Cable Ties|(10) Small Cable Ties
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
5.3-5.4VDC
Output Voltage
5VDC
Power Output
500mA
Input Connector
USB Type-C Female
Input Cable Length
215mm
Output Connector
USB Type-C Female
Output Cable Length
215mm
Transfer Speed
480Mbps
Component parts
RAM-GDS-CAB-CLAMP1U
Samsung Tab Active3
Samsung Tab Active5
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:
  • View details
    The RAM Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLN-CU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS pogo pins while taking advantage of this cradle's USB port to support one additional peripheral, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM Skin or factory device skin along with most RAM accessories including: Temperature Control Accessories, RAM NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS Hand-Stand but are compatible with the GDS Roto-Mag. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. Also included is the USB Type-C female pigtail, cable clamp, and zip ties.
    Brand
    RAM Mounts
    Symbol
    RAM-HOL-SAM58CPKLN-CU
    Producer code
    793442017865
    Product Weight
    490 g
    494 g
    Hardware Included
    (2) Keys|(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(2) Cable Clamps|(4) Large Cable Ties|(10) Small Cable Ties
    Hole Pattern
    4-Hole AMPS: 1.181" x 1.496"
    Materials
    High strength composite
    Packaging Type
    Poly Bag
    Input Voltage
    5.3-5.4VDC
    Output Voltage
    5VDC
    Power Output
    500mA
    Input Connector
    USB Type-C Female
    Input Cable Length
    215mm
    Output Connector
    USB Type-C Female
    Output Cable Length
    215mm
    Transfer Speed
    480Mbps
    Component parts
    RAM-GDS-CAB-CLAMP1U
  • Compatibility
    Samsung Tab Active3
    Samsung Tab Active5
