RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & 3
RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & 3
RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & 3
RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & 3
RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & 3
RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & 3
RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & 3
RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & 3

RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & 3

Part#:
RAM-HOL-SAM58CPKLN-CAU
UPC:
793442018794
+ Add to compareAdd to shopping list
  • Features:
  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active3; provides charging through an integrated pogo pin connection and USB Type-C cable
  • Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments
  • Connect two additional peripherals via dual USB Type-C and Type-A pigtail
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™
  • Backed by a 3-year warranty
  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB Type-C cable
  • Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A and USB-C connector
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
345,43 €
/ pc incl. VAT
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

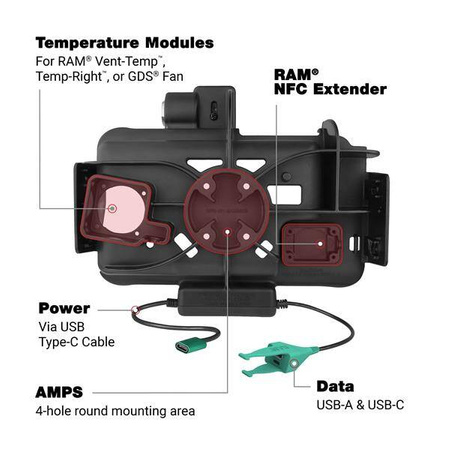

The RAM Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLN-CAU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS pogo pins while taking advantage of this cradle's dual USB port to support up to two additional peripherals, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM Skin or factory device skin along with most RAM accessories including: Temperature Control Accessories, RAM NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS Hand-Stand but are compatible with the GDS Roto-Mag. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. Also included is the USB Type-C female pigtail, cable clamp, and zip ties.
Brand
RAM Mounts
Symbol
RAM-HOL-SAM58CPKLN-CAU
Producer code
793442018794
Hardware Included
(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) Cable Clamp|(2) Large Cable Ties|(8) Small Cable Ties
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
5.3-5.4VDC
Output Voltage
5VDC
Power Output
500mA
Input Connector
USB Type-C Female
Input Cable Length
215mm
Output Connector
(1) USB-C Female|(1)USB-A Female
Output Cable Length
215mm
Transfer Speed
480Mbps
Component parts
RAM-GDS-CAB-CLAMP1U
Product Weight
603 g
Peripheral Output
900mAh (per port)
Samsung Tab Active3
Samsung Tab Active5
