RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3
RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3
RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3
RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3
RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3
RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3
RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3
RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3
RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3
RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3
RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3
RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3
RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3
RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3

RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3

  • Features:
  • Key-locking form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in a Samsung OEM protective case or RAM® Skin™

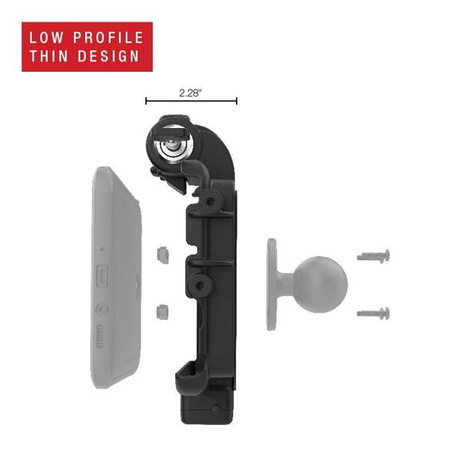

  • Slim-profile design at 2.28" depth with metal reinforcement plate

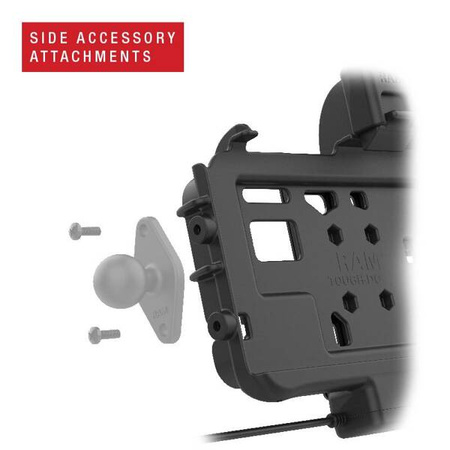

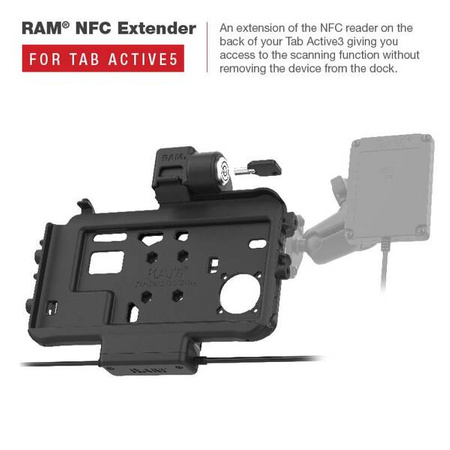

  • Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments
  • Power delivered via USB-C connector; connect a single input device via USB-A connector
  • Backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

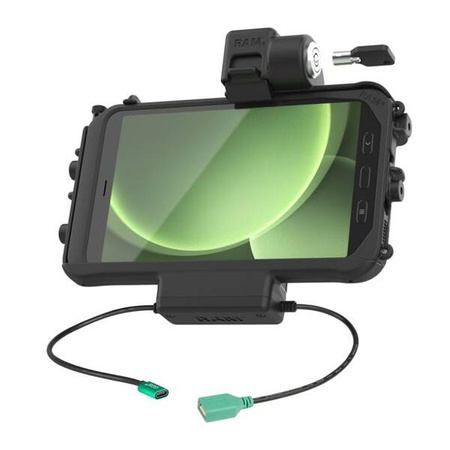

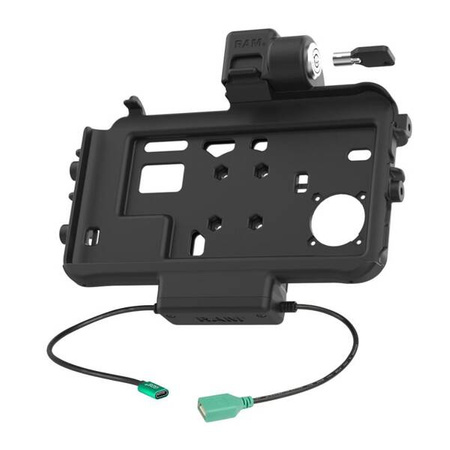

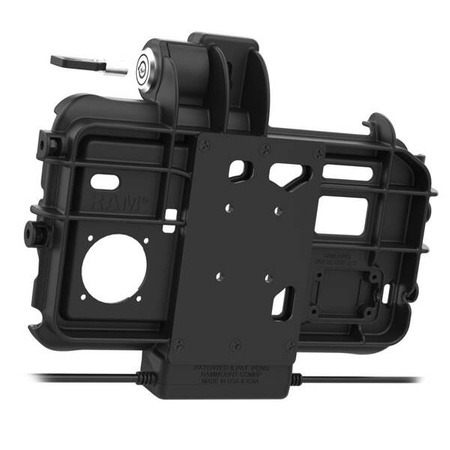

    The low-profile RAM Power + Data Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLT-AU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contactssimply dock the device for a seamless charging experience. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. This modular dock is compatible with the RAM Skin or factory device skin along with most RAM accessories including: RAM Vent-Temp, RAM NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. Also included is a cable clamp and zip ties for cable management.
    Symbol
    RAM-HOL-SAM58CPKLT-AU
    Producer code
    793442019524
    Product Weight
    630 g
    Hardware Included
    (2) Keys|(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(2) Optional Cable Clamp Housings|(4) Large Cable Ties|(10) Small Cable Ties
    Hole Pattern
    4-Hole AMPS: 1.181" x 1.496"
    Materials
    High strength composite
    Packaging Type
    Poly Bag
    Input Voltage
    5.3-5.4VDC
    Output Voltage
    5VDC
    Power Output
    500mA
    Input Connector
    USB Type-C Female
    Input Cable Length
    250mm
    Output Connector
    USB 1.1 Type A
    Output Cable Length
    250mm
    Peripheral Output
    500mAh
    Transfer Speed
    12Mbps
    Component parts
    RAM-GDS-CAB-CLAMP1U
    RAM-GDS-CAB-CLAMP2U
