Part#:UPC:
RAM-VB-178A-SW3
793442033537
- Features:
- Custom laptop vehicle mount installs using passenger seat bolts; no drilling required
- Dual articulating swing arm provides a high-level of adjustability
- Universal laptop tray accommodates most laptops
- Made of powder-coated steel and marine-grade aluminum
- Backed by a lifetime warranty
Brand
Symbol
RAM-VB-178A-SW3
Producer code
793442033537
Series
New
Yes
Product Weight
7257 g
Hardware Included
Assembly Hardware|(2) M8-1.25 x 60mm Hex Bolts|(2) 3/4" Stand-Offs|(2) 5/16" Flat Washers

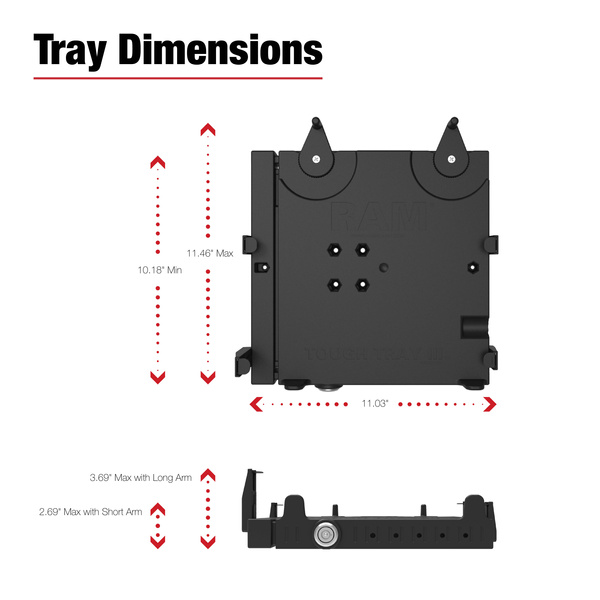

Tray Dimensions
Width Range: 10" - 15.25"|Side Arm Clamp Height: 0" - 1.875"|Depth Range: 7.625" - 10.625"|Tray Thickness: 1.26"
Hole Pattern
Seat Bolt Distance: 13.25" center to center
Ball Size
C Size (1.5")
Materials
Powder coated steel|Marine grade-aluminum|High strength composite
Packaging Type
Box
Vehicle
RAM 1500 (2012-2018)
RAM 1500 Classic (2019-2024)
RAM 2500 - 5500 (2012-2025)
Component parts
RAM-234-7
RAM-VB-178A
RAM-VP-SW1-89
Ask a question
Write your opinion
- View details

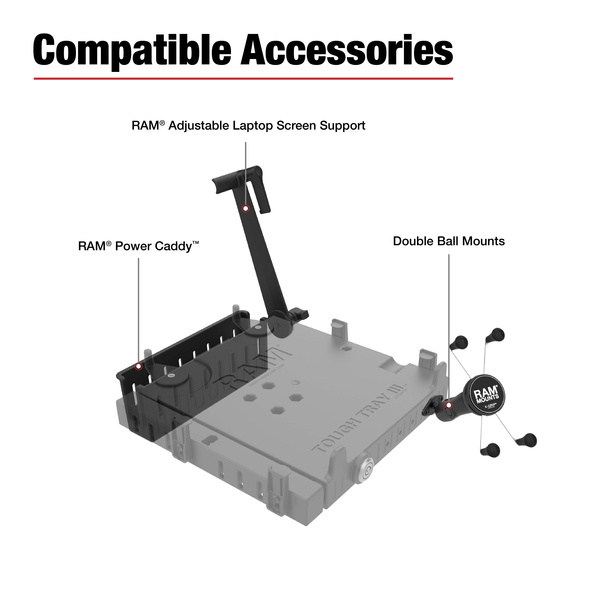

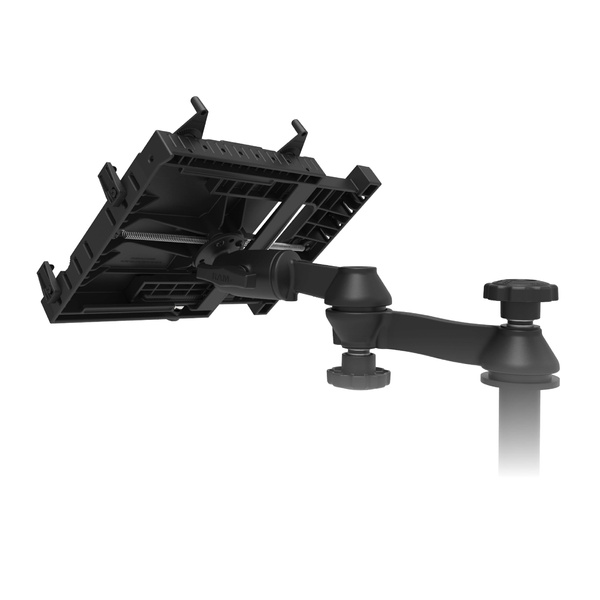

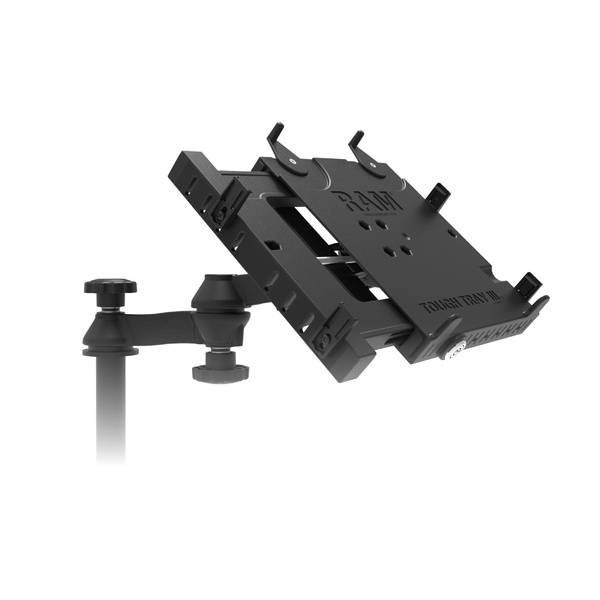

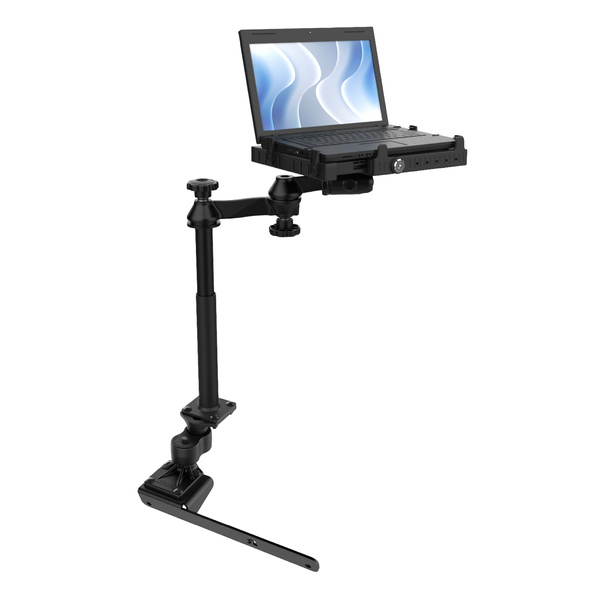

The RAM No-Drill Laptop Mount for '12-26 Ram 2500 + More (RAM-VB-178A-SW3) installs quickly and easily to the passenger seat rails using the existing vehicle hardware. This laptop mounting kit is telescoping, allowing users to adjust the height range from 12 to 18. Dual swing arms provide articulation and 12 of reach for passenger and driver access to the mounted device. RAM rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM Tough-Tray III laptop holder accommodates 10" to 17" laptops (measured diagonally). The tray features four adjustable retaining arms with grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. Upgrade your mounting kit with compatible accessories that are not included, such as the RAM Adjustable Screen Support and RAM Power Caddy. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners. Verify full range of vehicle compatibility on tab above. BrandSymbolRAM-VB-178A-SW3Producer code793442033537SeriesNewYesProduct Weight7257 gHardware IncludedAssembly Hardware|(2) M8-1.25 x 60mm Hex Bolts|(2) 3/4" Stand-Offs|(2) 5/16" Flat WashersTray DimensionsWidth Range: 10" - 15.25"|Side Arm Clamp Height: 0" - 1.875"|Depth Range: 7.625" - 10.625"|Tray Thickness: 1.26"Hole PatternSeat Bolt Distance: 13.25" center to centerBall SizeC Size (1.5")MaterialsPowder coated steel|Marine grade-aluminum|High strength compositePackaging TypeBoxVehicleRAM 1500 (2012-2018)RAM 1500 Classic (2019-2024)RAM 2500 - 5500 (2012-2025)Component partsRAM-234-7RAM-VB-178ARAM-VP-SW1-89 - Recommended products
