RAM® No-Drill™ Laptop Mount for '98-24 Express Van, Savana Van + More
Part#:UPC:
RAM-VB-143-SW1
793442902857
- Features:

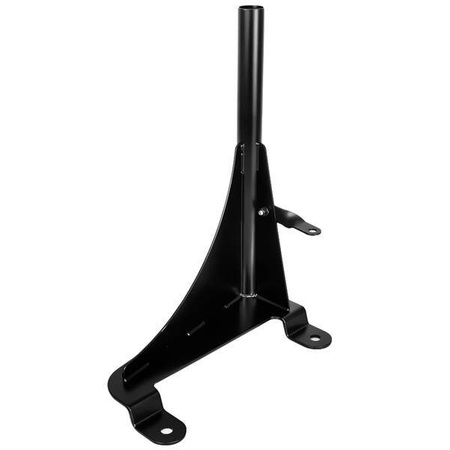

- RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

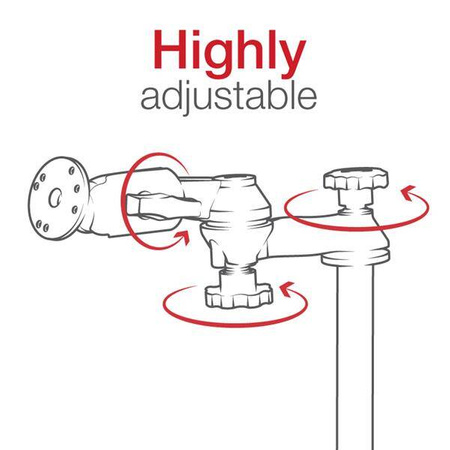

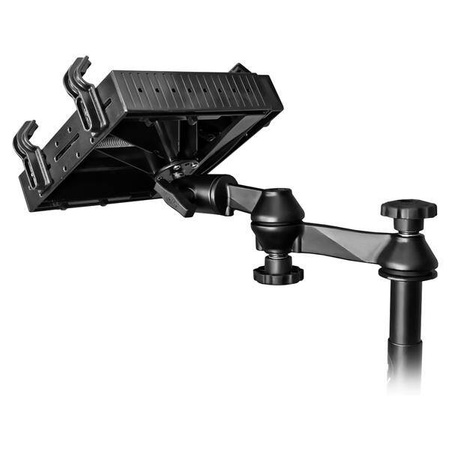

- Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
- Made of powder-coated steel and marine-grade aluminum
- Backed by a lifetime warranty
Brand
Symbol
RAM-VB-143-SW1
Producer code
793442902857
Series
Product Weight
7711 g
7235 g
Hardware Included
Assembly Hardware|Support Leg
Tray Dimensions

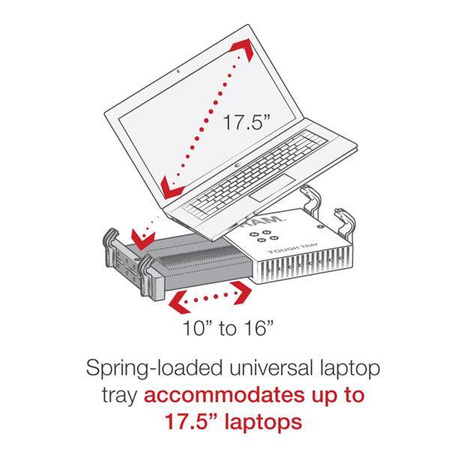

Width Range: 10" - 16"|Side Arm Clamp Height: .5" - 1.75"|Tray Depth: 10"|Tray Thickness: 2.125"
Hole Pattern
Seat Bolt Distance: 11.687" center to center
Materials
Powder coated steel|Marine grade-aluminum|High strength composite
Packaging Type
Box
Mounting Type
Floor Mount
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Vehicle
Chevrolet Express Van
Chevrolet G-Series Van
GMC G-Series Van
GMC Savana Cargo Van
GMC Savana Passenger Van
GMC Savana Van
GMC Savana Van (1998-2021)
GMC Savana Cargo Van (2012)
GMC Savana Passenger Van (2012)
GMC G-Series Van (2010-2017)
Chevrolet Express Van (1998-2023)
Chevrolet G-Series Van (2010-2016)
Chevrolet Express Van (1998-2024)
Device or Accessory Type
Laptop
Vehicle Type
Car & Truck
Component parts
RAM-234-3
RAM-VB-143
RAM-VP-SW1-8
Ball Size
C Size (1.5")
Ask a question
Write your opinion
- View details

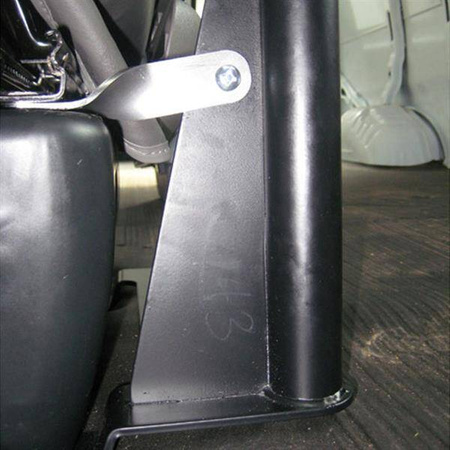

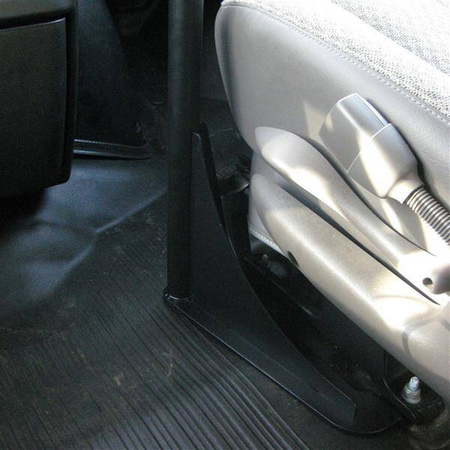

This No-Drill Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics. BrandSymbolRAM-VB-143-SW1Producer code793442902857SeriesProduct Weight7711 g7235 gHardware IncludedAssembly Hardware|Support LegTray DimensionsWidth Range: 10" - 16"|Side Arm Clamp Height: .5" - 1.75"|Tray Depth: 10"|Tray Thickness: 2.125"Hole PatternSeat Bolt Distance: 11.687" center to centerMaterialsPowder coated steel|Marine grade-aluminum|High strength compositePackaging TypeBoxMounting TypeFloor MountBall & Socket SizeC Size 1.5" (Holds 1814.37 gramss)VehicleChevrolet Express VanChevrolet G-Series VanGMC G-Series VanGMC Savana Cargo VanGMC Savana Passenger VanGMC Savana VanGMC Savana Van (1998-2021)GMC Savana Cargo Van (2012)GMC Savana Passenger Van (2012)GMC G-Series Van (2010-2017)Chevrolet Express Van (1998-2023)Chevrolet G-Series Van (2010-2016)Chevrolet Express Van (1998-2024)Device or Accessory TypeLaptopVehicle TypeCar & TruckComponent partsRAM-234-3RAM-VB-143RAM-VP-SW1-8Ball SizeC Size (1.5") - Recommended products
