New in
Part#:UPC:
RAM-VB-168-SW3
793442033643
- Features:
- Custom laptop vehicle mount installs using passenger seat bolts; no drilling required
- Triple articulating swing arm provides a high-level of adjustability
- Universal laptop tray accommodates most laptops
- Made of powder-coated steel and marine-grade aluminum
- Backed by a lifetime warranty
Brand
Symbol
RAM-VB-168-SW3
Producer code
793442033643
Series
New
Yes
Product Weight
10433 g
Hardware Included
Assembly Hardware

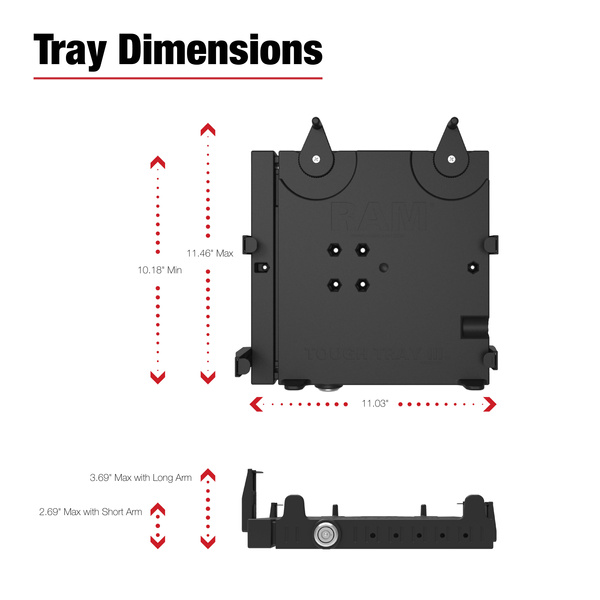

Tray Dimensions
Width Range: 10" - 15.25"|Side Arm Clamp Height: 0" - 1.875"|Depth Range: 7.625" - 10.625"|Tray Thickness: 1.26"
Hole Pattern
See Drawing
Ball Size
C Size (1.5")
Materials
Powder coated steel|Marine grade-aluminum|High strength composite
Packaging Type
Box
Component parts
RAM-234-7
RAM-VB-109-3U
RAM-VB-168
RAM-VP-SW1-1218
Ask a question
Write your opinion
- View details

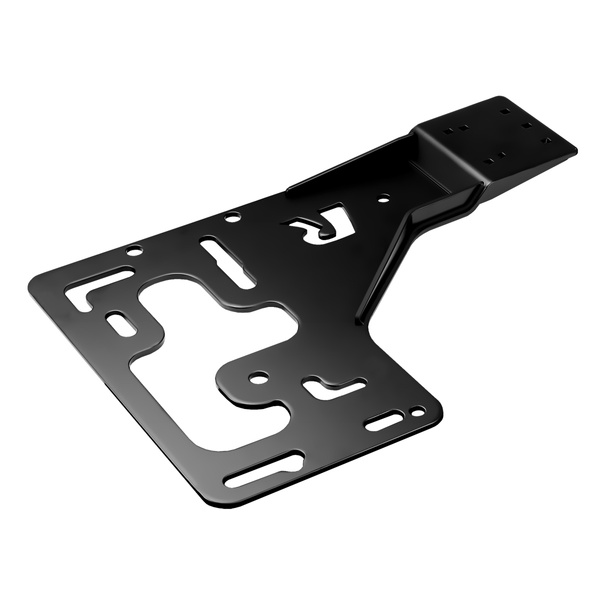

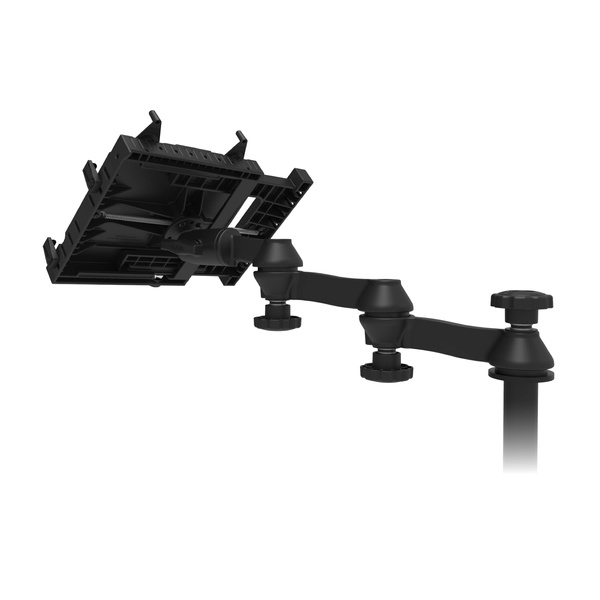

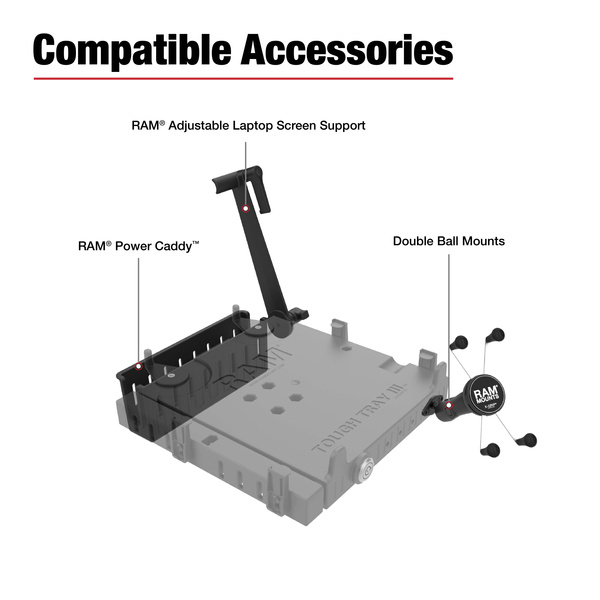

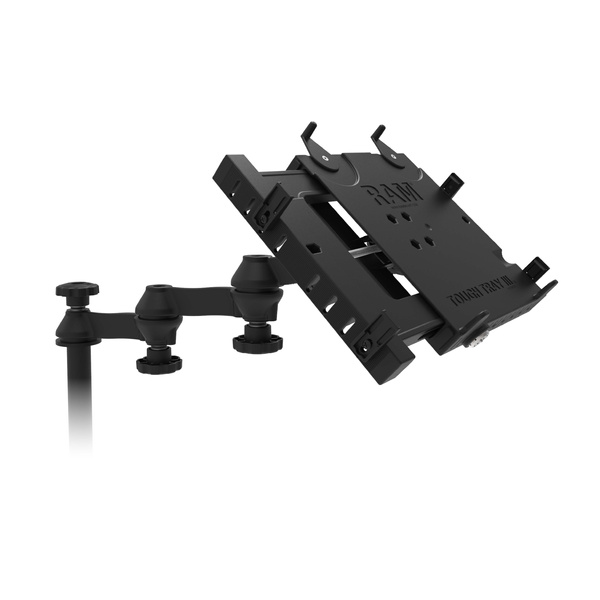

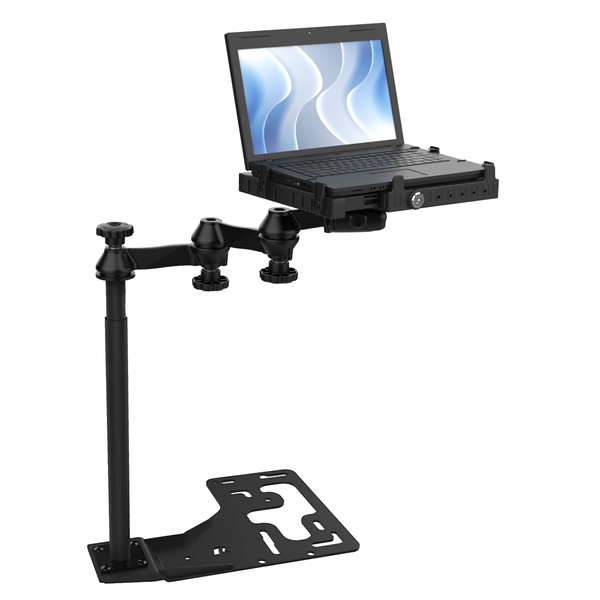

The RAM No-Drill Universal Laptop Mount for Heavy Duty Trucks (RAM-VB-168-SW3) installs quickly and easily to the passenger seat rails using the existing vehicle hardware. This laptop mounting kits is telescoping, allowing users to adjust the height range from 12 to 18. Triple swing arms provide articulation and 18 of reach for passenger and driver access to the mounted device. RAM rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM Tough-Tray III laptop holder accommodates 10" to 17" laptops (measured diagonally). The tray features four adjustable retaining arms that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. Upgrade your mounting kit with compatible accessories that are not included, such as the RAM Adjustable Screen Support and RAM Power Caddy. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners. Verify full range of vehicle compatibility on tab above. BrandSymbolRAM-VB-168-SW3Producer code793442033643SeriesNewYesProduct Weight10433 gHardware IncludedAssembly HardwareTray DimensionsWidth Range: 10" - 15.25"|Side Arm Clamp Height: 0" - 1.875"|Depth Range: 7.625" - 10.625"|Tray Thickness: 1.26"Hole PatternSee DrawingBall SizeC Size (1.5")MaterialsPowder coated steel|Marine grade-aluminum|High strength compositePackaging TypeBoxComponent partsRAM-234-7RAM-VB-109-3URAM-VB-168RAM-VP-SW1-1218 - Recommended products
