Part#:UPC:
RAM-316-3-240U
793442930225
Brand
Symbol
RAM-316-3-240U
Producer code
793442930225
Series
Product Weight
2722 g
Hardware Included
Assembly Hardware
Socket-to-Socket Length
4.66"
Hole Pattern
See Drawing
3-Hole 120 Degree (Large)
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Floor Mount
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Vehicle Type
Car & Truck
Component parts
RAM-201U
RAM-202U
RAM-240U
RAM-316-3AU
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
Ask a question
Write your opinion
- View details

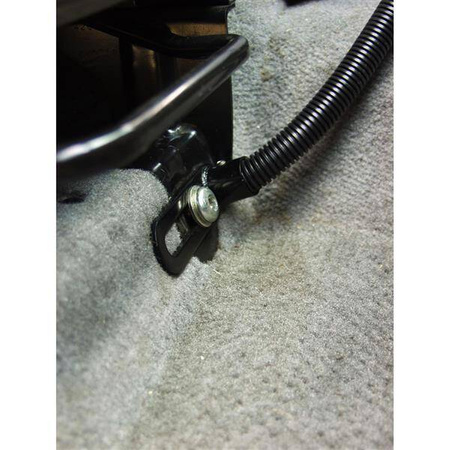

The RAM-316-3-240U consists of the RAM POD III No-Drill vehicle base, three rigid aluminum rod legs, double socket arm, 2.5" round bases that contain the universal AMPs hole pattern and 3.68" round base. The base of the mount connects to your seat rail without any drilling necessary. The rigid aluminum rod legs can be bent to position your device to its optimum viewing location. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The 3.68" round base contains pre-drilled holes that connect to RAM Tough-Dock Powered Docking Stations. BrandSymbolRAM-316-3-240UProducer code793442930225SeriesProduct Weight2722 gHardware IncludedAssembly HardwareSocket-to-Socket Length4.66"Hole PatternSee Drawing3-Hole 120 Degree (Large)Weight CapacityStandard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramssMaterialsMarine-grade aluminumPackaging TypePoly BagMounting TypeFloor MountBall & Socket SizeC Size 1.5" (Holds 1814.37 gramss)Vehicle TypeCar & TruckComponent partsRAM-201URAM-202URAM-240URAM-316-3AUSocket To Socket Length4.66"Ball SizeC Size (1.5") - Recommended products
