RAM® Power + Data & DB9 Dock for Honeywell ScanPal EDA10A
Part#:UPC:
RAM-HOL-HON11PD2-DB9U
793442019401
- Features:
- Spring-loaded, powered dock featuring GDS® Technology™ with data and charging capabilities for the ScanPal™ EDA10A tablet

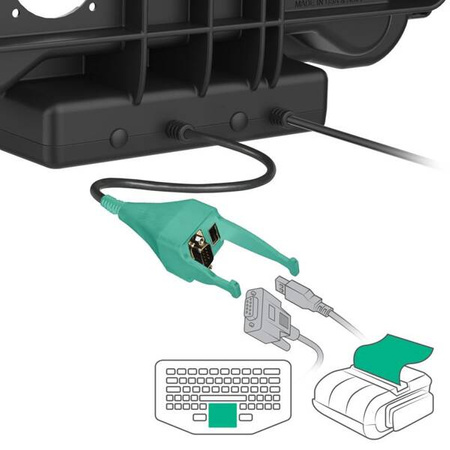

- Power delivered through integrated pogo pin technology via 5.5mm DC Connector; connect up to 2 input devices via dual USB-A and DB9 female connector
- Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Two built-in 2-hole mounting locations for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Brand
Symbol
RAM-HOL-HON11PD2-DB9U
Producer code
793442019401
New
Yes
Product Weight
885 g
Hardware Included
(6) #8-32 x 5/8” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(1) Cable Clamp & Zip Tie Kit
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
5 VDC
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Output Connector
USB 2.0 Type A|DB9 Male
Output Cable Length
250mm
Certifications
FCC, CE, RoHS, WEEE
Honeywell ScanPal EDA10A
Ask a question
Write your opinion
- View details

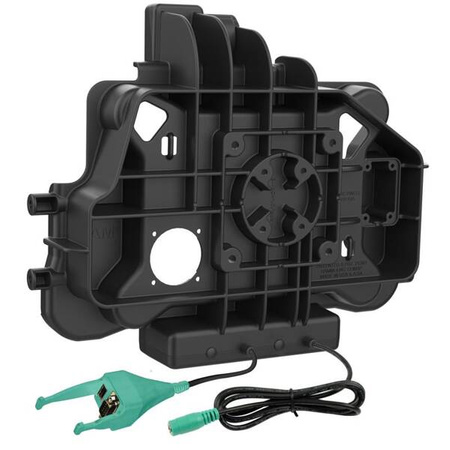

The RAM Power + Data & DB9 Dock for Honeywell ScanPal EDA10A (RAM-HOL-HON11PD2-DB9U) features a form-fit design specifically for the Honeywell ScanPal EDA10A tablet with the OEM protective boot. This powered holder allows you to keep the device charged through the pogo pin contacts when the device is dockedpower is provided by connecting to the dock's 5.5mm DC power jack. Peripheral support is provided by the built-in USB Type-A and single DB9 cable. It is compatible with the OEM hand-strap accessory and requires that the protective boot is installed for a secure fit. Take your solution a step further with a variety of compatible RAM accessories, such as the RAM NFC Extender and RAM Vent-Temp. This tablet holder includes a 4-hole AMPS and 75mm x 75mm VESA pattern on the back as connection points for attaching a double socket arm to complete your mounting solution. Secure any peripheral accessories or devices directly to the dock by mounting them to one of the two built-in 2-hole mounting locations compatible with the RAM 2-hole diamond base. BrandSymbolRAM-HOL-HON11PD2-DB9UProducer code793442019401NewYesProduct Weight885 gHardware Included(6) #8-32 x 5/8” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(1) Cable Clamp & Zip Tie KitHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagInput Voltage5 VDCInput Connector5.5mm DC ConnectorInput Cable Length1 MeterOutput ConnectorUSB 2.0 Type A|DB9 MaleOutput Cable Length250mmCertificationsFCC, CE, RoHS, WEEE - CompatibilityHoneywell ScanPal EDA10A
