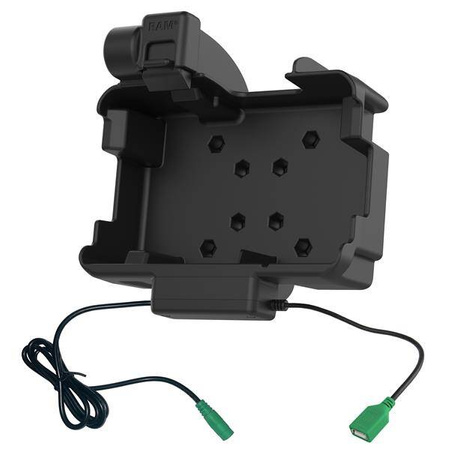

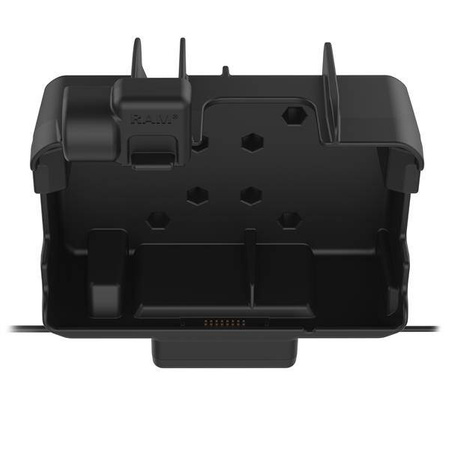

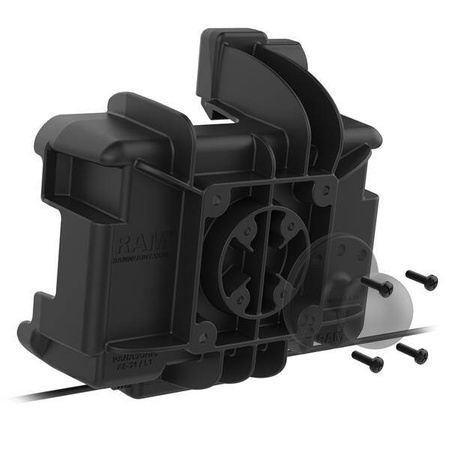

RAM® Power + Data Dock for Panasonic FZ-S1 & FZ-L1
RAM® Power + Data Dock for Panasonic FZ-S1 & FZ-L1
RAM® Power + Data Dock for Panasonic FZ-S1 & FZ-L1
RAM® Power + Data Dock for Panasonic FZ-S1 & FZ-L1
RAM® Power + Data Dock for Panasonic FZ-S1 & FZ-L1
RAM® Power + Data Dock for Panasonic FZ-S1 & FZ-L1
RAM® Power + Data Dock for Panasonic FZ-S1 & FZ-L1
RAM® Power + Data Dock for Panasonic FZ-S1 & FZ-L1

RAM® Power + Data Dock for Panasonic FZ-S1 & FZ-L1

Part#:
RAM-HOL-PAN15PDU
UPC:
793442101977
+ Add to compareAdd to shopping list
  • Features:
  • Spring-loaded powered dock for Panasonic FZ-S1 & FZ-L1 tablet via DC 5.5mm power jack and USB Type A connector for adding a peripheral
  • When connected to a power source, integrated pogo pins provide power to the device while docked; dock accommodates tablet add-ons such as scanner, hand strap, and extended battery; tablet's scanning feature works while tablet is docked
  • Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price283,78 €
293,75 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
Featuring data and charging capabilities, the RAM Vehicle Dock for Panasonic FZ-S1 & FZ-L1 allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type A cable. The dock also allows the tablet's scanning function to work through the opening on the back which also accommodates tablet add-ons such as scanner, hand strap and extended battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.
Brand
RAM Mounts
Symbol
RAM-HOL-PAN15PDU
Producer code
793442101977
Product Weight
576 g
Hardware Included
(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) DC to USB Type A Cable Adapter
(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|75 x 75mm VESA
75 x 75 VESA
AMPS 4-Hole
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
4.5 - 5.4 VDC
4.4-5.4VDC
Output Voltage
4.5 - 5.4 VDC
Output Current
900mA
Input Connector
USB Type A
Input Cable Length
8.4"
Output Connector
USB 1.1 Type A
Output Cable Length
8.4"
Transfer Speed
12Mbps
Compliance
FCC, IC, e-Mark
Certifications
CE, RoHS
Device or Accessory Type
Tablet
Regulatory
FCC, IC, E-Mark
Peripheral Output
500mAh
Panasonic Toughbook FZ-L1
Panasonic Toughbook FZ-S1
