RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins
RAM® Power + Data Dock for Zebra ET6x - Heated Pins

RAM® Power + Data Dock for Zebra ET6x - Heated Pins

Part#:
RAM-HOL-ZE25PDHU
UPC:
793442017674
+ Add to compareAdd to shopping list
  • Features:
  • Form-fit power + single USB Type-A dock designed specifically for the Zebra ET60 & ET65 tablets; compatible with or without Zebra keyboard featuring unique 2-in-1 latch that secures the ET60/ET65 while allowing the keyboard to open and close freely
  • Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience; pogo pins feature self-aligning docking pads that conform to the seated device

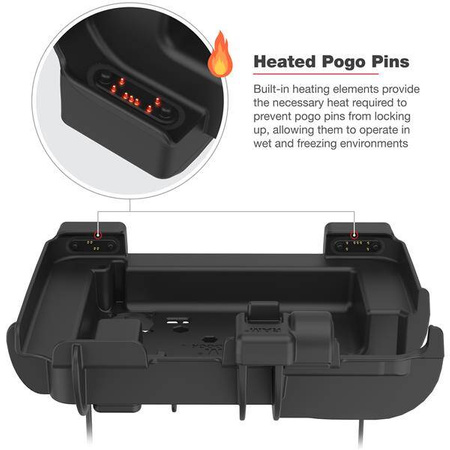

  • Heating elements provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments.

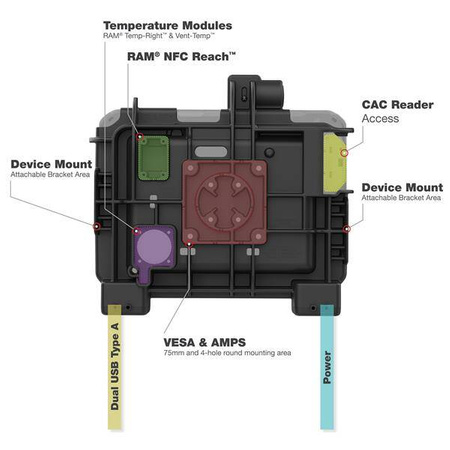

  • Add-on accessory compatible including RAM® Vent-Temp™, RAM® Temp-Right™, RAM® NFC Extender, as well as two small device mounting areas on both the left and right side of the dock; dock also includes cut out on the side of the dock giving access to the Zeb
  • Backed by a 3-year warranty
  • Add-on accessory compatible including RAM® Vent-Temp™, RAM® Temp-Right™, RAM® NFC Extender, as well as two small device mounting areas on both the left and right side of the dock; dock also includes cut out on the side of the dock giving access to the Zeb
  • Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience; pogo pins feature self-aligning docking pads that conform to the seated device; Single USB-A connector for adding a peri
  • Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience; pogo pins feature self-aligning docking pads that conform to the seated device; Single USB-A connector for adding a peri
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
778,83 €
/ pc incl. VAT
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

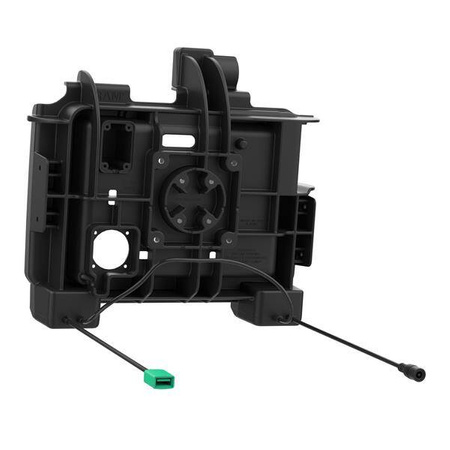

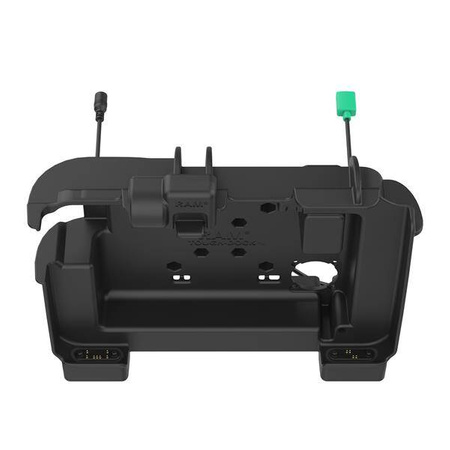

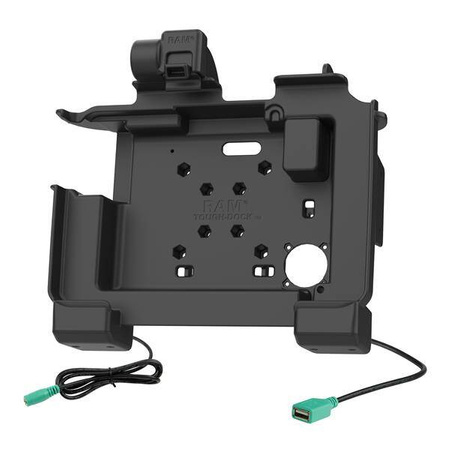

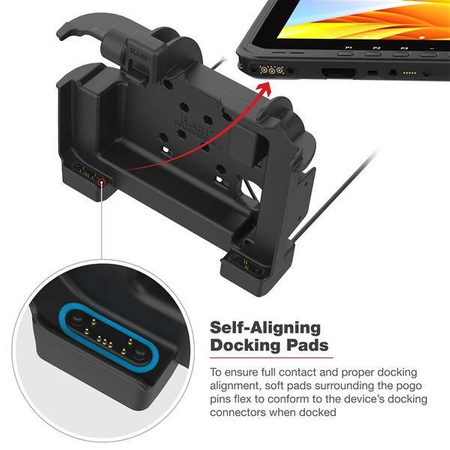

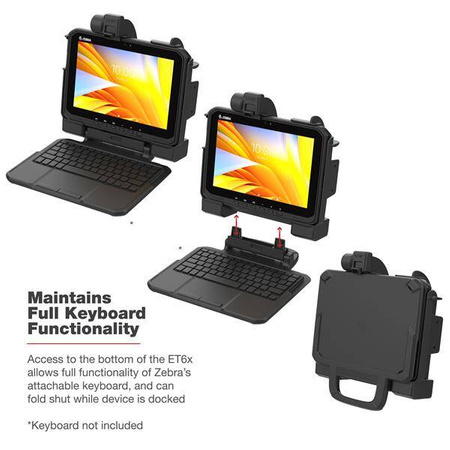

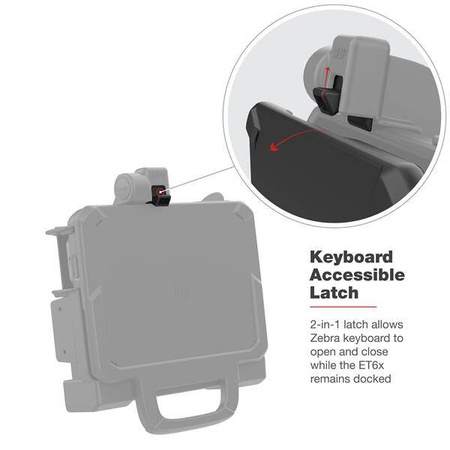

This power + Single USB Type-A RAM Dock (RAM-HOL-ZE25PDHU) features a form-fitting design specifically for the Zebra ET60 & ET65 tablets. This dock has built-in heating elements that provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. A single USB Type-A pigtail connector is provided for adding one additional peripheral. Special for this dock are new self-aligning docking pads that surround the pogo pins and conform to the tablet when seated in the dock to provide optimal contact, and prevent damage to the pins. Made for versatility out in the field, this dock supports the device with or without the attachable Zebra keyboard and features a unique 2-in-1 latch that both secures the tablet, and allows the keyboard to open and close independently. Additionally this dock is accessory-ready, compatible with the RAM Vent-Temp, RAM Temp-Right, RAM NFC Extender, as well as two small device mounting areas on both the left and right side of the dock. The cut out on the left side of the dock allows for easy access to the Zebra CAC reader with the ability to open and close the CAC reader door. Finish the solution by building your mount. These docks are RAM Compatible equipped with 75mm VESA, or 4-hole AMPS patterns for adding a ball adapter. Take advantage of thousands of RAM mounting components to configure the perfect ET60/ET65 solution. These thoughtfully designed features enable mobile workforces widely spread across industries in colder climates including cold storage warehousing, fixed vehicle docking in commercial transportation, and utility services in subzero environments.
Brand
RAM Mounts
Symbol
RAM-HOL-ZE25PDHU
Producer code
793442017674
Product Weight
912 g
Hardware Included
(1) Side bracket for accessory mounting|(4) #8-32 x 5/8" Machine Screws|(2) #8-32 x 1/2" Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8" Machine Screws|(4) #10-24 Nylock Nuts|(8) 4" Zip Ties|(2) 7" Zip Ties
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Output Connector
USB 2.0 Type A
Output Cable Length
216mm
Transfer Speed
12Mbps
Certifications
RoHS|WEEE|CE|UKCA
Peripheral Output
500mAh
Zebra ET60
Zebra ET65
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:
  • View details
    This power + Single USB Type-A RAM Dock (RAM-HOL-ZE25PDHU) features a form-fitting design specifically for the Zebra ET60 & ET65 tablets. This dock has built-in heating elements that provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. A single USB Type-A pigtail connector is provided for adding one additional peripheral. Special for this dock are new self-aligning docking pads that surround the pogo pins and conform to the tablet when seated in the dock to provide optimal contact, and prevent damage to the pins. Made for versatility out in the field, this dock supports the device with or without the attachable Zebra keyboard and features a unique 2-in-1 latch that both secures the tablet, and allows the keyboard to open and close independently. Additionally this dock is accessory-ready, compatible with the RAM Vent-Temp, RAM Temp-Right, RAM NFC Extender, as well as two small device mounting areas on both the left and right side of the dock. The cut out on the left side of the dock allows for easy access to the Zebra CAC reader with the ability to open and close the CAC reader door. Finish the solution by building your mount. These docks are RAM Compatible equipped with 75mm VESA, or 4-hole AMPS patterns for adding a ball adapter. Take advantage of thousands of RAM mounting components to configure the perfect ET60/ET65 solution. These thoughtfully designed features enable mobile workforces widely spread across industries in colder climates including cold storage warehousing, fixed vehicle docking in commercial transportation, and utility services in subzero environments.
    Brand
    RAM Mounts
    Symbol
    RAM-HOL-ZE25PDHU
    Producer code
    793442017674
    Product Weight
    912 g
    Hardware Included
    (1) Side bracket for accessory mounting|(4) #8-32 x 5/8" Machine Screws|(2) #8-32 x 1/2" Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8" Machine Screws|(4) #10-24 Nylock Nuts|(8) 4" Zip Ties|(2) 7" Zip Ties
    Hole Pattern
    75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
    Materials
    High strength composite
    Packaging Type
    Poly Bag
    Input Connector
    5.5mm DC Connector
    Input Cable Length
    1 Meter
    Output Connector
    USB 2.0 Type A
    Output Cable Length
    216mm
    Transfer Speed
    12Mbps
    Certifications
    RoHS|WEEE|CE|UKCA
    Peripheral Output
    500mAh
  • Compatibility
    Zebra ET60
    Zebra ET65
