Part#:UPC:
RAM-HOL-GE4PD2U
793442016608
- Features:
- Form-fit power + dual data sync dock designed specifically for Getac ZX10 rugged tablet

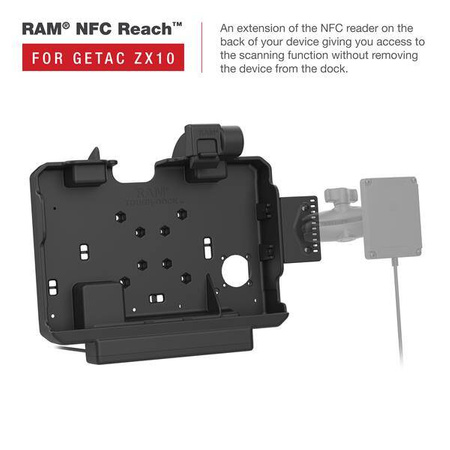

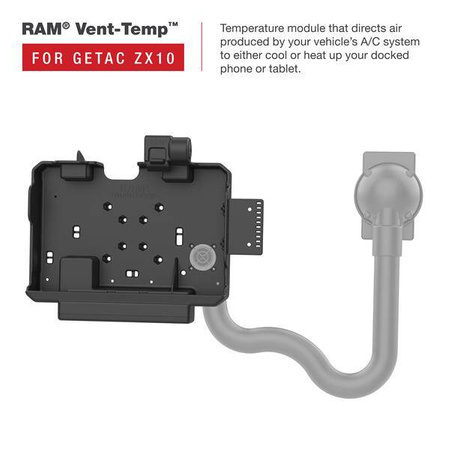

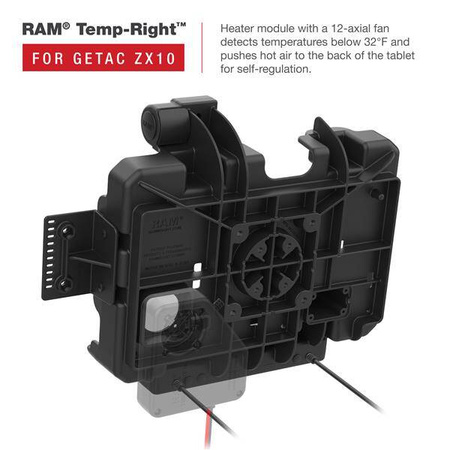

- Dock features compatibility with RAM® Vent-Temp™, Temp-Right™, RAM® NFC Extender, and D size RAM® VESA pattern base
- Provides charging connectivity through integrated pogo pin technology and 5.5mm DC connector; provides single peripheral support via USB Type-A cable
- Includes 2-hole side bracket for mounting additional devices such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
- Power delivered through integrated pogo pin technology via 5.5mm DC Connector; connect up to 2 input devices via dual USB-A connector
Brand
Symbol
RAM-HOL-GE4PD2U
Producer code
793442016608
Product Weight
993 g
1179 g
Hardware Included
(1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-32 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(8) Small Cable Ties
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
19VDC
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Output Connector
(2) USB 2.0 Type A
Output Cable Length
300mm
Certifications
FCC, IC, CE, UKCA, WEEE, RoHS
Peripheral Output
900mAh (per port)
Getac ZX10
Ask a question
Write your opinion
- View details

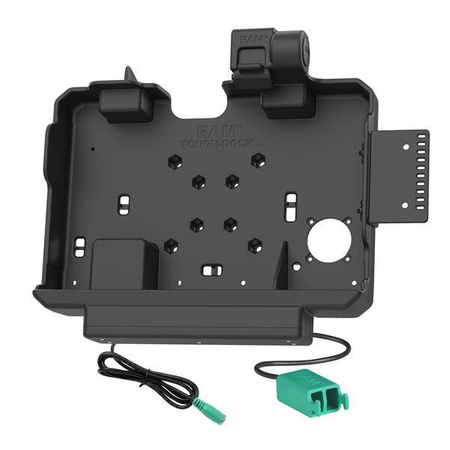

The RAM Power + Dual USB Data Dock for Getac ZX10 (RAM-HOL-GE4PD2U) allows you to secure the device and keep it charged through the pogo pin contacts while dockedpower is provided by connecting to the dock's 5.5mm DC power jack. Add up to two peripherals with the built-in dual USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. Upgrade with any combination of compatible accessories including the RAM Temp-Right, Vent-Temp, RAM NFC Extender, and D size VESA base. Additional compatibility for Getac accessories include the Standard & High capacity batteries as well as the Hard Carry Handle. Take the solution a step further by taking advantage of the included 2-hole side bracket, compatible with RAM 2-hole diamond bases for additional device mounting such as a phone or other handheld device. BrandSymbolRAM-HOL-GE4PD2UProducer code793442016608Product Weight993 g1179 gHardware Included(1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-32 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(8) Small Cable TiesHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagOutput Voltage19VDCInput Connector5.5mm DC ConnectorInput Cable Length1 MeterOutput Connector(2) USB 2.0 Type AOutput Cable Length300mmCertificationsFCC, IC, CE, UKCA, WEEE, RoHSPeripheral Output900mAh (per port) - CompatibilityGetac ZX10
