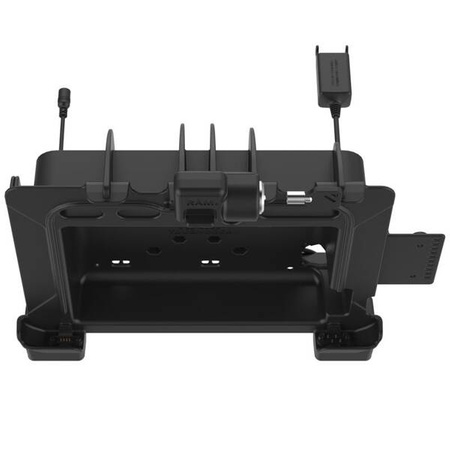

RAM® Power + Dual USB Locking Dock for Zebra ET8x 2-in-1 Tablet
Part#:UPC:
RAM-HOL-ZE22PD2LU
793442802713
- Features:
- Powered, key-locking dock provides charging capabilities for the Zebra ET8x tablets, with or without Rugged Frame and Friction Hinge Rugged Keyboard via DC 5.5mm power jack
- Two separate housings on the back of the dock allow for add-on modules such as the NFC Repeater, and temperature modules RAM® Vent-Temp™ and RAM® Temp-Right™

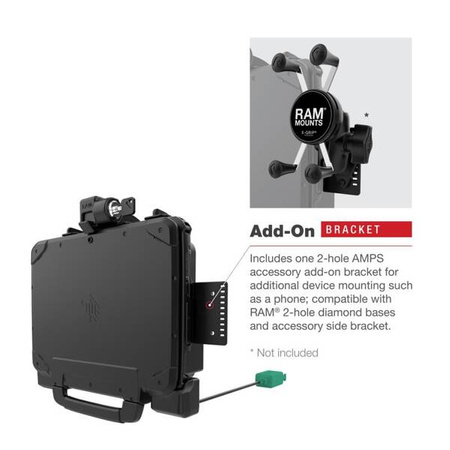

- Built-in 2-hole accessory mounting plate for additional device mounting such as a phone, scanner, or NFC Repeater
- Dock accommodates tablet add-ons such as the Zebra Expansion Back, GDS® Roto-Mag™, and GDS® Hand-Stand™ accessories
- Backed by a 3-year warranty
- Powered, key-locking dock provides charging capabilities for the Zebra ET8x tablets, with or without Rugged Frame and Friction Hinge Rugged Keyboard via DC 5.5mm power jack; Dual USB-A connector for up to 2 peripherals
Brand
Symbol
RAM-HOL-ZE22PD2LU
Producer code
793442802713
Product Weight
1116 g
1247 g
Hardware Included
(2) Keys|(1) Side bracket for accessory mounting|(4) #8-32 x 5/8" Machine Screws|(2) #8-32 x 1/2" Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8" Machine Screws|(4) #10-24 Nylock Nuts|(8) 4" Zip Ties|(2) 7" Zip Ties
Product Dimensions
Overall Height: 11.85"|Overall Width: 12.75"|Overall Depth: 4.36"
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Output Connector
(2) USB 2.0 Type A
Output Cable Length
218mm
Transfer Speed
12Mbps
Certifications
RoHS|WEEE|FCC|CE|ICES|UKCA
Peripheral Output
900mAh (per port)
Zebra ET80 2-in-1 Tablet
Zebra ET85 2-in-1 Tablet
Ask a question
Write your opinion
- View details
This key-locking power and dual data RAM Dock (RAM-HOL-ZE22PD2LU) features a form-fit design specifically for the Zebra ET8x tablets. Made for versatility out in the field, this dock supports the device with or without the Rugged Frame, and accommodates the optional Friction Hinge Rugged Keyboard. Connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in dual USB Type-A cable. Thoughtfully designed, this dock also allows space for tablet add-ons such as the Zebra Expansion Back, GDS Roto-Mag, and GDS Hand-Stand ergonomic accessories. Embrace the weather with options to upgrade your dock with temperature modules. The RAM Temp-Right can be added to regulate heat in extremely cold environments while the RAM Vent-Temp utilizes the vehicle's A/C vents to direct hot or cold air to the ET8x. Take the solution a step further by upgrading to an add-on NFC Repeater module that extends the device's internal NFC reader. Pair this with the docks built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for mounting the NFC Repeater, or any other additional device such as a phone, scanner, or printer. BrandSymbolRAM-HOL-ZE22PD2LUProducer code793442802713Product Weight1116 g1247 gHardware Included(2) Keys|(1) Side bracket for accessory mounting|(4) #8-32 x 5/8" Machine Screws|(2) #8-32 x 1/2" Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8" Machine Screws|(4) #10-24 Nylock Nuts|(8) 4" Zip Ties|(2) 7" Zip TiesProduct DimensionsOverall Height: 11.85"|Overall Width: 12.75"|Overall Depth: 4.36"Hole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagInput Connector5.5mm DC ConnectorInput Cable Length1 MeterOutput Connector(2) USB 2.0 Type AOutput Cable Length218mmTransfer Speed12MbpsCertificationsRoHS|WEEE|FCC|CE|ICES|UKCAPeripheral Output900mAh (per port) - CompatibilityZebra ET80 2-in-1 TabletZebra ET85 2-in-1 Tablet
