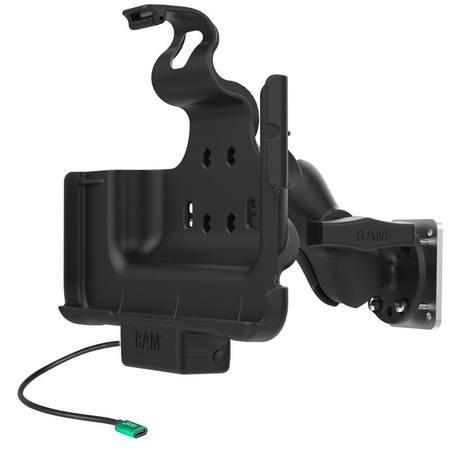

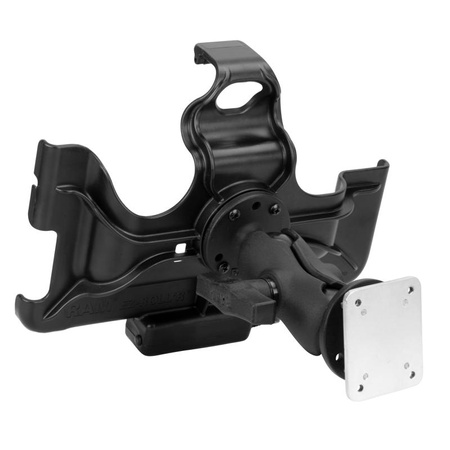

RAM® Powered Dock & Dashboard Mount for Samsung Tab Active4 Pro
Part#:UPC:
RAM-101-225B2-SAM52CP-V7CU
793442025860
- Features:
- Bundle includes the RAM® USB-C Powered Dock, RAM® Skin for the Tab Active4 Pro, and C size double ball mount with medium arm, backing plate adapter, and cable clamp
- Powered dock designed specifically for the Samsung Galaxy Tab Active4 Pro wrapped in the RAM® Skin™ or Samsung OEM case
- Next gen charging with integrated pogo pin docking contacts that match the Tab Active4 Pro's pogo pads for a fumble-free charging experience and port-protection
- Backed by a 3-year warranty
Brand
Symbol
RAM-101-225B2-SAM52CP-V7CU
Producer code
793442025860
Series
Product Weight
1157 g
Hardware Included
Assembly Hardware|(1) 2.10" x 2.60" Steel Backing Plate|(4) #8-32 x 1" Screws|(4) #8 Split Lock Washers|(4) #8 Flat Washers|(1) Cable Clamp|(1) Hardwire Charger
Socket To Socket Length
3"
Ball Size
C Size (1.5")
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Packaging Type
Poly Bag
Input Voltage
5.3-5.4VDC
Output Voltage
5VDC
Power Output
500mA
Input Connector
USB Type-C Female
Input Cable Length
215mm
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +70°C
Regulatory
Overvoltage/Load Dump Compliance: Meets SAE J-1113|FCC, CE, UKCA, IC
Certifications
E-Mark Certification|Integrated Short Circuit Protection|WEEE and RoHS Compliant|USB 2.0 BC 1.2 DCP Support|IEC/UL 62368-1
Samsung Galaxy Tab Active Pro
Samsung Galaxy Tab Active4 Pro
Ask a question
Write your opinion
- View details
The RAM Powered Dock & Dashboard Mount for Samsung Tab Active4 Pro (RAM-101-225B2-SAM52CP-V7CU) is a comprehensive kit of everything needed to deploy the Samsung Tab Active4 Pro in your fleet. It contains one RAM USB-C Powered Dock, RAM Skin for the Tab Active4 Pro, and double ball mount with backing plate. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place. When undocking, a simple push the lever upwards to release the device. The RAM Powered Dock is backed by a 3-year warranty. BrandSymbolRAM-101-225B2-SAM52CP-V7CUProducer code793442025860SeriesProduct Weight1157 gHardware IncludedAssembly Hardware|(1) 2.10" x 2.60" Steel Backing Plate|(4) #8-32 x 1" Screws|(4) #8 Split Lock Washers|(4) #8 Flat Washers|(1) Cable Clamp|(1) Hardwire ChargerSocket To Socket Length3"Ball SizeC Size (1.5")Weight CapacityStandard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramssPackaging TypePoly BagInput Voltage5.3-5.4VDCOutput Voltage5VDCPower Output500mAInput ConnectorUSB Type-C FemaleInput Cable Length215mmOperating Temperature-10°C to +70°CStorage Temperature-40°C to +70°CRegulatoryOvervoltage/Load Dump Compliance: Meets SAE J-1113|FCC, CE, UKCA, ICCertificationsE-Mark Certification|Integrated Short Circuit Protection|WEEE and RoHS Compliant|USB 2.0 BC 1.2 DCP Support|IEC/UL 62368-1 - CompatibilitySamsung Galaxy Tab Active ProSamsung Galaxy Tab Active4 Pro
