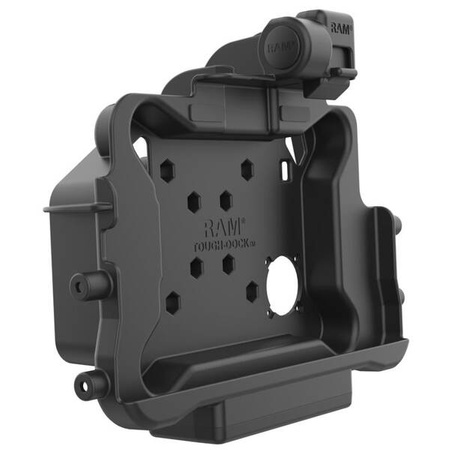

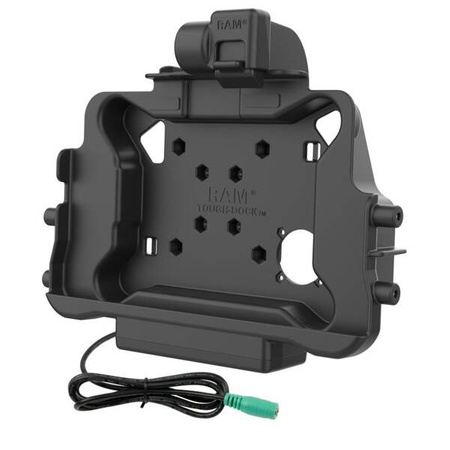

RAM® Powered Dock for Honeywell ScanPal EDA10A
Part#:UPC:
RAM-HOL-HON11PU
793442018985
- Features:
- Spring-loaded powered dock featuring GDS® Technology™ with charging capabilities for the ScanPal™ EDA10A tablet
- When connected to a power source via 5.5 DC Barrel connector, integrated pogo pins provide power to the device
- Compatible with OEM handstrap, RAM® NFC Extender, and RAM® Vent-Temp™

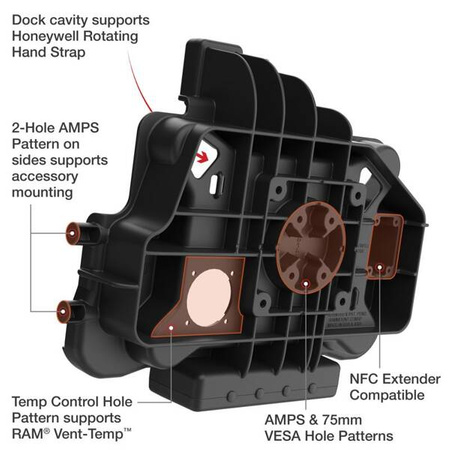

- Two built-in 2-hole mounting locations for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Brand
Symbol
RAM-HOL-HON11PU
Producer code
793442018985
New
Yes
Hardware Included
(6) #8-32 x 5/8” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(1) Cable Clamp & Zip Tie Kit
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
5 VDC
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Certifications
FCC, CE, RoHS, WEEE
Product Weight
762 g
Honeywell ScanPal EDA10A
Ask a question
Write your opinion
- View details

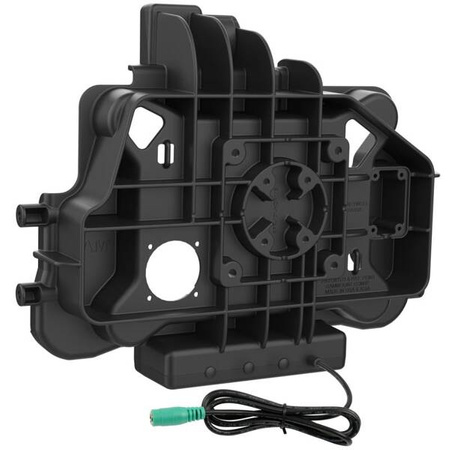

The RAM Powered Dock for Honeywell ScanPal EDA10A (RAM-HOL-HON11PU) features a form-fit design specifically for the Honeywell ScanPal EDA10A tablet with the OEM protective boot. This powered holder allows you to keep the device charged through the pogo pin contacts when the device is dockedpower is provided by connecting to the dock's 5.5mm DC power jack. It is compatible with the OEM hand-strap accessory and requires that the protective boot is installed for a secure fit. Take your solution a step further with a variety of compatible RAM accessories, such as the RAM NFC Extender and RAM Vent-Temp. This tablet holder includes a 4-hole AMPS and 75mm x 75mm VESA pattern on the back as connection points for attaching a double socket arm to complete your mounting solution. Secure any peripheral accessories or devices directly to the dock by mounting them to one of the two built-in 2-hole mounting locations compatible with the RAM 2-hole diamond base. BrandSymbolRAM-HOL-HON11PUProducer code793442018985NewYesHardware Included(6) #8-32 x 5/8” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(1) Cable Clamp & Zip Tie KitHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagInput Voltage5 VDCInput Connector5.5mm DC ConnectorInput Cable Length1 MeterCertificationsFCC, CE, RoHS, WEEEProduct Weight762 g - CompatibilityHoneywell ScanPal EDA10A
