RAM® Powered Dock + Single USB-A for Zebra MC9400 & MC9300
Part#:UPC:
RAM-HOL-ZE32PDU
793442018558
- Features:

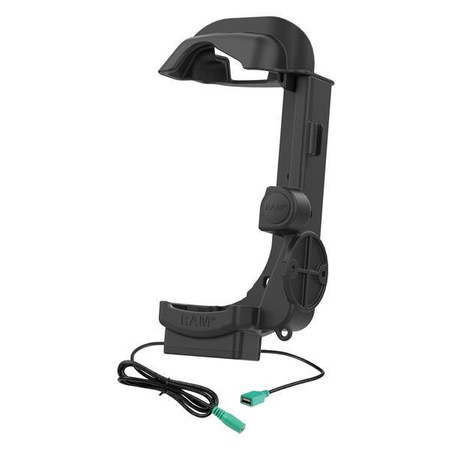

- Form-fit powered dock designed specifically for the Zebra MC9300 Ultra-Rugged Mobile Computer Series; includes a single USB Type-A connector for peripheral support

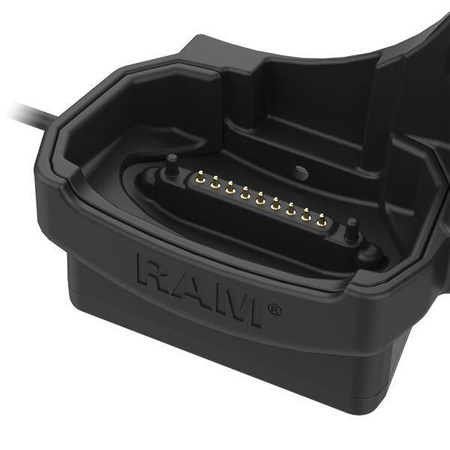

- Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience; pogo pins feature self-aligning docking pads that conform to the seated device

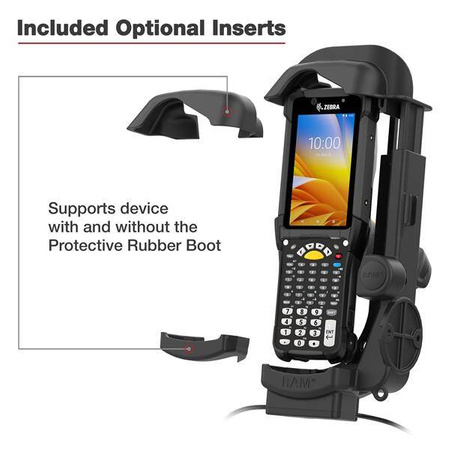

- Optional shim inserts provide a secure fit for devices deployed without the Protective Boot

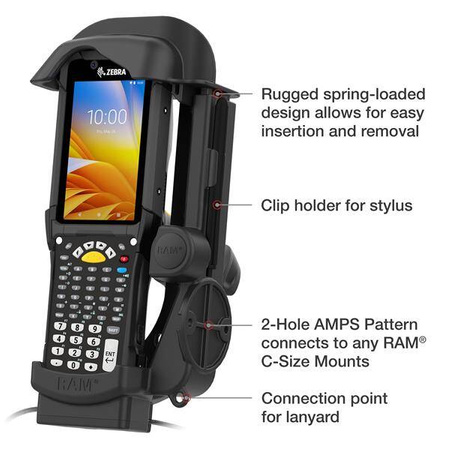

- Compatible with RAM® 2-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty
- Form-fit powered dock designed specifically for the Zebra MC9400/MC9300 Ultra-Rugged Mobile Computer Series; includes a single USB Type-A connector for peripheral support
Brand
Symbol
RAM-HOL-ZE32PDU
Producer code
793442018558
Series
Hardware Included
(2) #8-32 x 5/8" Machine Screws|(2) #8-32 Nylock Nuts
Hole Pattern
2-Hole AMPS: 1.912"
Materials
High strength composite
Packaging Type
Poly Bag
Product Weight
463 g
Peripheral Output
500mAh
Zebra MC9300
Zebra MC9400
Ask a question
Write your opinion
- View details

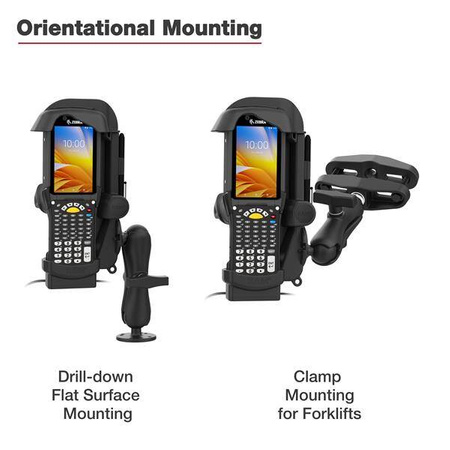

The RAM Powered Dock + Single USB-A for Zebra MC9400/MC9300 Series (RAM-HOL-ZE32PDU) features a form-fit holder designed specifically for the Zebra MC9400/MC9300 Ultra-Rugged Mobile Computer Series. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. A single peripheral allows for connection to one (1) input device. This holder includes optional shims to provide a secure fit for devices deployed without the Protective Boot and designed to enable easy, one-handed device insertion. Finish the solution by building your mountthese docks are RAM Compatible equipped with a 2-hole AMPS pattern for adding a ball adapter. Depending on the intended application and enabled by the device's rotating touch screen, mount in one of the two recommended orientations (see above). Configure your perfect MC9400/MC9300 mount by taking advantage of thousands of RAM mounting components. BrandSymbolRAM-HOL-ZE32PDUProducer code793442018558SeriesHardware Included(2) #8-32 x 5/8" Machine Screws|(2) #8-32 Nylock NutsHole Pattern2-Hole AMPS: 1.912"MaterialsHigh strength compositePackaging TypePoly BagProduct Weight463 gPeripheral Output500mAh - CompatibilityZebra MC9300Zebra MC9400
