RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
New in

RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro

Part#:
RAM-138-S-SNM5PL-V7B1U
UPC:
793442026980
+ Add to compareAdd to shopping list
  • Features:
  • Bundle for Sonim XP Pro includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication

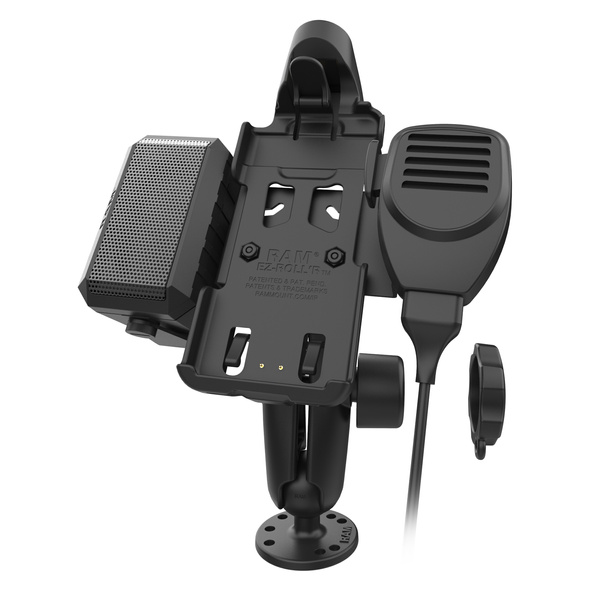

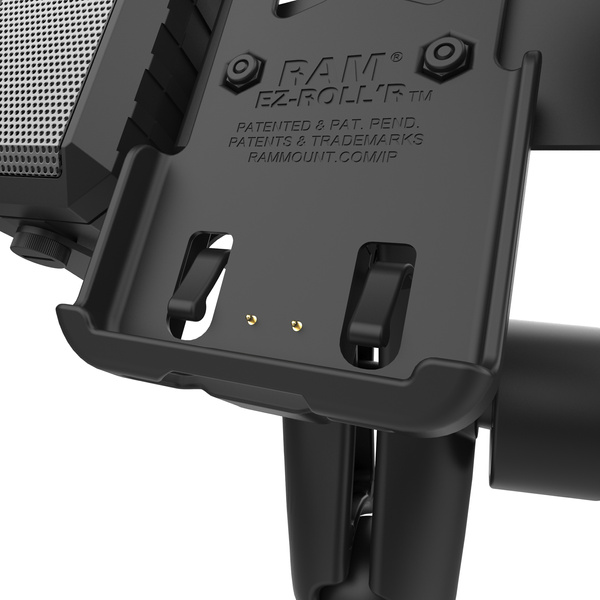

  • Powered RAM® EZ-Roll'r™ form-fit dock for the Sonim XP Pro; provides charging through two integrated pogo pins and USB-A cable

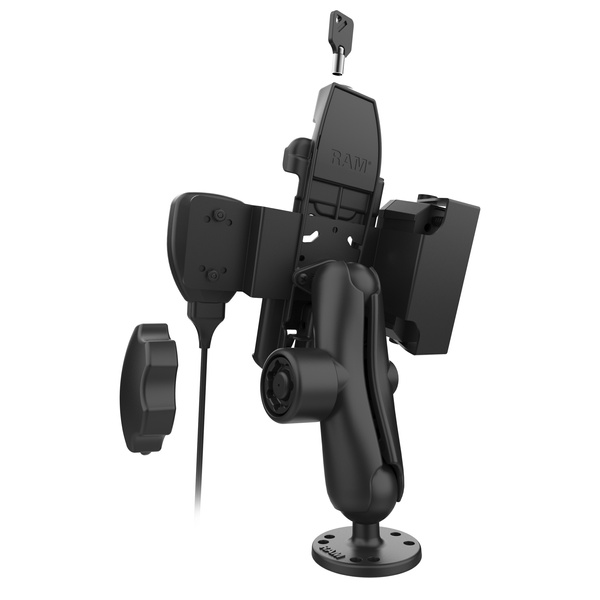

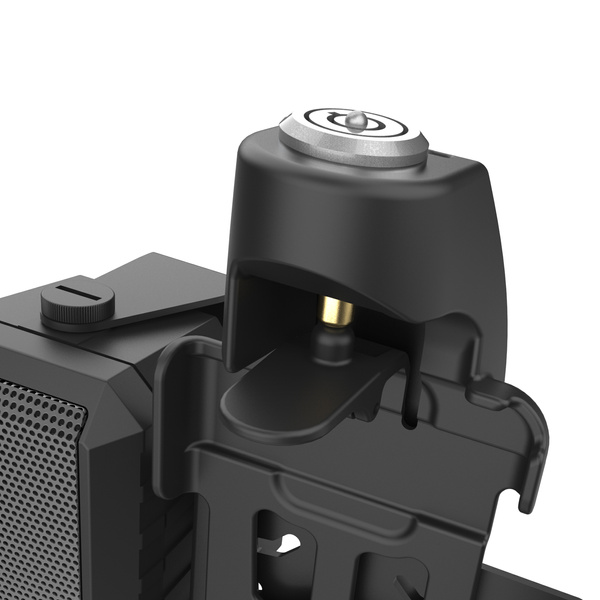

  • Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence
  • Bundle for Sonim XP Pro & XP Pro Thermal includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

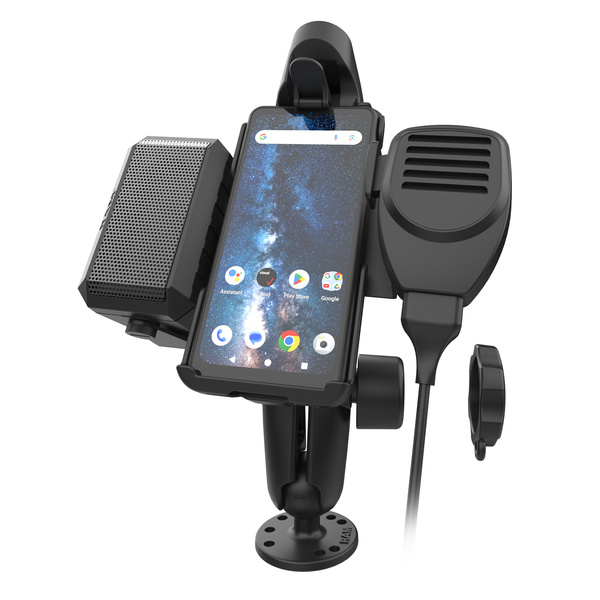

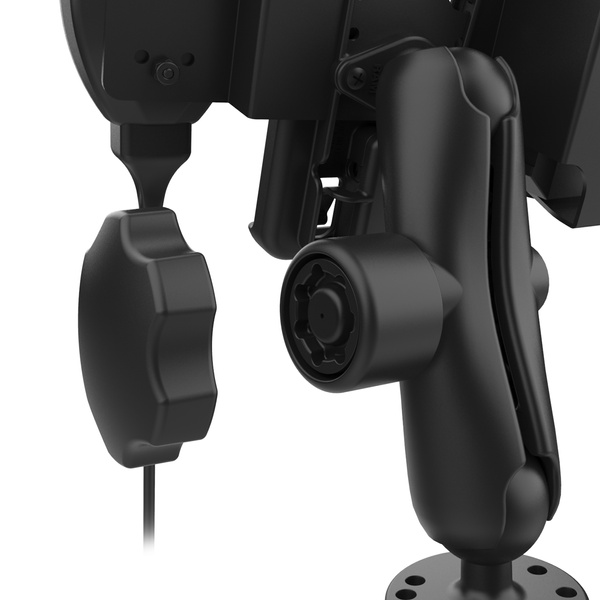

The RAM Double Ball Mount for Sonim XP Pro with Speaker & Hardwire Bundle (RAM-138-S-SNM5PL-V7B1U) is a turn-key push-to-talk solution that will meet the demands of whatever your day brings. This kit is made of the RAM EZ-Roll'r Powered Key Locking Dock for Sonim XP Pro, double ball mount with RAM Pin-Lock Security Knob, speaker, microphone, and a mounting bracket. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector and includes a key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included USB-C to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger.
Brand
RAM Mounts
Symbol
RAM-138-S-SNM5PL-V7B1U
Producer code
793442026980
Series
EZ-Roll'r™
Hardware Included
Assembly Hardware|(2) Keys for Holder|(1) Key for Locking Knob|(1) USB-C to 3.5 Audio Adapter Cable|(1) Modular Hardwire Charger
Assembly Hardware|(2) Keys for Holder|(1) Key for Locking Knob|(1) USB-C to 3.5 Audio Adapter Cable|(1) Modular Hardwire Charger|(1) Backing Plate & Hardware Assembly
Speaker Specifications
Independently adjustable volume knob|Max volume level: 100dB|8Ω / 10W rated speaker
Socket To Socket Length
4.66"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
Plate Size
2.5" Diameter
Ball Size
C Size (1.5")
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum|High strength composite|Powder-Coated Steel
Packaging Type
Poly Bag
Input Voltage
10-30VDC
Output Voltage
5-9VDC*
Output Current
2.5A max
Input Connector
Charger: Female USB Type A
Input Cable Length
1.2 Meters including 2 Pole Flat Marine Connector
Output Cable Length
.2 Meters
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +70°C
Regulatory
Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC
Certifications
E-Mark Certification|RCM Certification|IEC/UL 62368-1
Component parts
RAM-101-MIC3U
RAM-138U
RAM-GDS-CHARGE-V7B1U
RAM-HOL-SNM5PLU
RAM-MIC-A01
RAM-SPEAK-A02
RAP-CAB-SNM5U
RAP-S-KNOB5U
RAM-103-238U
RAM-202-225-2U
Product Weight
3379 g
Sonim XP Pro
Sonim XP Pro Thermal
