RAM® Quick-Draw™ Jr. with Double U-Bolt Base for Small Printers

RAM® Quick-Draw™ Jr. with Double U-Bolt Base for Small Printers

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price206,71 €
238,86 €
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

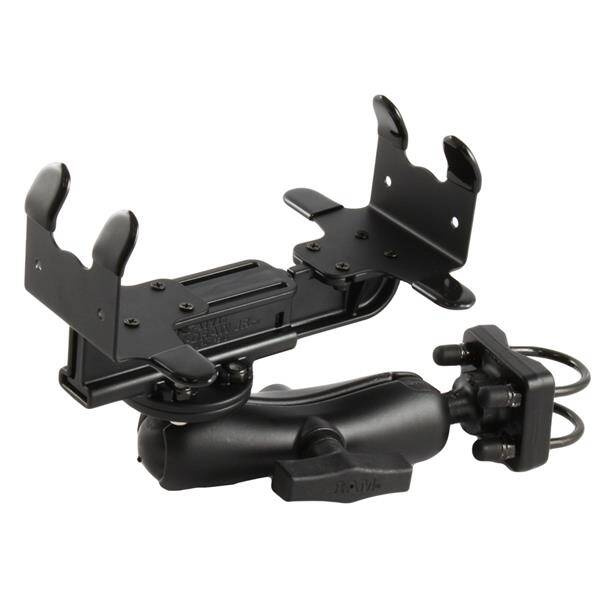

    The RAM-VPR-104-1 consists of a double-u-bolt base, double socket arm and RAM Quick Draw Jr. printer holder. The RAM Quick Draw Jr. holder uses a unique patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the cradles are side clamping plates that are designed to fit cleanly around the edges of a printer.
    Symbol
    RAM-VPR-104-1
    Producer code
    793442925863
    Product Weight
    1107 g
    Hardware Included
    Assembly Hardware|(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails|(4) 1/4"-20 Nylock Nuts|(4) Rubber Caps
    Holder Dimensions
    Max Height: 1.75"|Width Range: 5.625" - 9.5"
    Clamp Range
    1.25" - 1.5" diameter
    Socket-to-Socket Length
    4.66"
    Weight Capacity
    Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
    Materials
    Powder coated Steel|Marine-grade aluminum|High strength composite
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    C Size 1.5" (Holds 1814.37 gramss)
    Socket Arm Length
    Medium Arm
    Diameter Range
    1.25" - 1.5"
    Device or Accessory Type
    Printer
    Component parts
    RAM-101U-235-1
    RAM-VPR-104
    Socket To Socket Length
    4.66"
    Ball Size
    C Size (1.5")
