Part#:UPC:
RAM-HOL-TABL33U
793442916977
- Features:
- Locking mechanism for theft deterrence
- Support cups contain open slots to accomodate for tablets of various sizes
- Back plate can support various size support cups
- Spring loaded tension provides secure support and quick release for your tablet
- Backed by a lifetime warranty
Brand
Symbol
RAM-HOL-TABL33U
Producer code
793442916977
Product Weight
590 g
Hardware Included
Assembly Hardware|(2) #8 x 5/8" Sheet Metal Screws|(2) M4 x 32mm Machine Screws|(2) M4 Nylock Nuts|(2) Keys
Holder Dimensions
Height Range: 9.55" - 11.8"|Width Range: 5.5" - 6.95"|Depth Range: .2" - .66" max
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
Materials
High strength composite
Packaging Type
Poly Bag
Device or Accessory Type
Tablet
Component parts
RAM-HOL-TAB33-CUPSU
RAM-HOL-TABLBU
Lenovo K10 Tablet with or without case
Samsung Tab A 10.1 (2016) with or without case
Samsung Tab A7 10.4 with or without case
Samsung Tab A8 10.5 with case
Samsung Tab S5e with or without case
Samsung Tab S6 Lite with or without case
Social Mobile Rhino T100 with case
Samsung Tab A9+ with case
Ask a question
Write your opinion
- View details

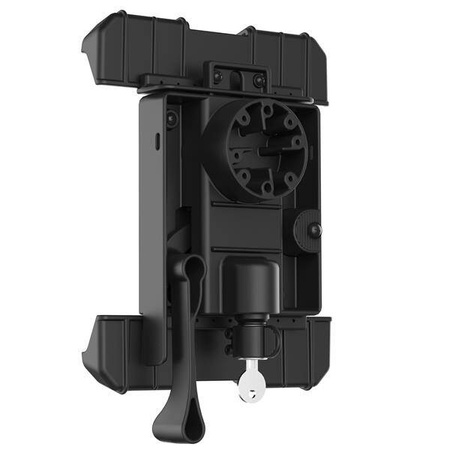

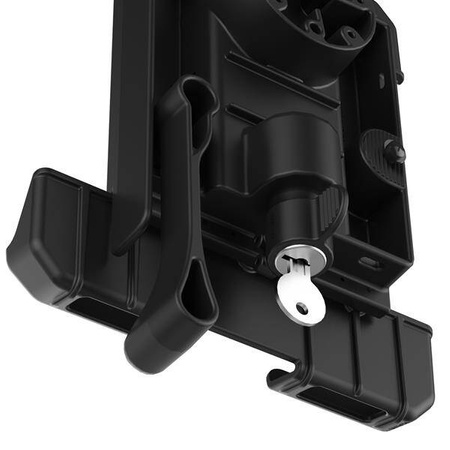

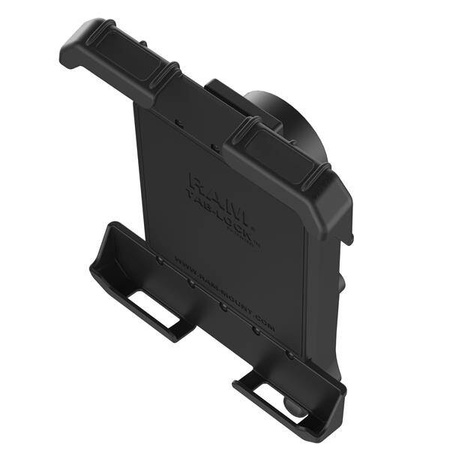

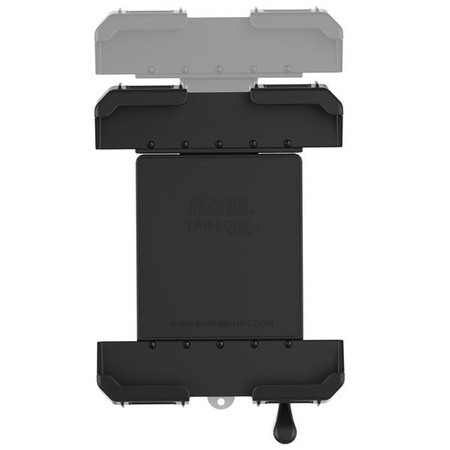

The RAM Tab-Lock spring loaded, quick release cradle with a keyed lock offers a secure fit with easy access to the mounted tablet. The keyed lock offers theft deterrence and unwanted tampering in public settings. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab (S6 Lite, A7 10.4, S5e, A 10.1) and Lenovo K10 Tablet. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. The Tab-Lock cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size. Product consists of holder only. Case not included. BrandSymbolRAM-HOL-TABL33UProducer code793442916977Product Weight590 gHardware IncludedAssembly Hardware|(2) #8 x 5/8" Sheet Metal Screws|(2) M4 x 32mm Machine Screws|(2) M4 Nylock Nuts|(2) KeysHolder DimensionsHeight Range: 9.55" - 11.8"|Width Range: 5.5" - 6.95"|Depth Range: .2" - .66" maxHole Pattern4-Hole AMPS: 1.181" x 1.496"AMPS 4-HoleMaterialsHigh strength compositePackaging TypePoly BagDevice or Accessory TypeTabletComponent partsRAM-HOL-TAB33-CUPSURAM-HOL-TABLBU - CompatibilityLenovo K10 Tablet with or without caseSamsung Tab A 10.1 (2016) with or without caseSamsung Tab A7 10.4 with or without caseSamsung Tab A8 10.5 with caseSamsung Tab S5e with or without caseSamsung Tab S6 Lite with or without caseSocial Mobile Rhino T100 with caseSamsung Tab A9+ with case
