Part#:UPC:
RAM-HOL-TABL12U
793442939778
- Features:
- Spring-loaded, key locking holder secures most 8" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
- Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Brand
Symbol
RAM-HOL-TABL12U
Producer code
793442939778
Series
Product Weight
522 g
544 g
Hardware Included
Assembly Hardware|(2) #8 x 5/8" Sheet Metal Screws|(2) M4 x 32mm Machine Screws|(2) M4 Nylock Nuts|(2) Keys
Holder Dimensions
Height Range: 6.75" - 8.75"|Width Range: 5.06" - 5.68"|Depth Range: .13" - 1"

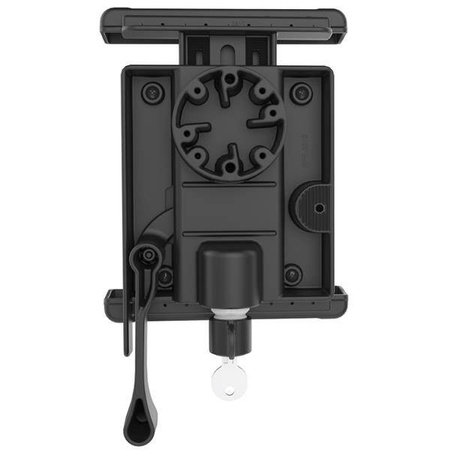

Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
Materials
High strength composite
Packaging Type
Poly Bag
Device or Accessory Type
Tablet
Component parts
RAM-HOL-TAB12-CUPSU
RAM-HOL-TABLBU
ASUS MeMO Pad 8 with Case
ASUS VivoTab 8 with Case
Amazon Fire 7 Kids
Amazon Fire HD 8 Kids
Amazon Fire HD 8 with Case
Apple iPad mini 6 with Case
Dell Venue 8 (2014) with Case
Dell Venue 8 7840 with Case
Dell Venue 8 Pro with Case
Dell Venue 8 with Case
Huawei MediaPad M3 Lite with Case
Huawei MediaPad M3 with Case
Huawei MediaPad T1 8.0 with Case
Huawei MediaPad T3 8 with Case
LG G Pad F 8.0 (2nd Gen) with Case
LG G Pad F2 8.0 with Case
LG G Pad II 8.0 with Case
LG G Pad X II 8.0 with Case
Lenovo IdeaTab A2107 with Case
Lenovo Ideapad Miix 300 with Case
Lenovo Tab 2 A8 with Case
Lenovo Tab 4 8 Plus with Case
Lenovo Tab 4 8 with Case
Lenovo Tab A8-50 with Case
Lenovo Tab S8 with Case
Lenovo Tab3 8 with Case
Nvidia Shield Tablet with Case
Panasonic Toughpad FZ-M1
Samsung Galaxy Tab 2 7.0 with Case
Samsung Galaxy Tab 3 8.0 with Case
Samsung Galaxy Tab A 8.4 with Case
Samsung Galaxy Tab E 8.0 with Case
Samsung Galaxy Tab Pro 8.4 with Case
Samsung Galaxy Tab A7 Lite 8.7 with Case
Social Mobile Rhino T80
Apple iPad mini (A17 Pro) with Case
Ask a question
Write your opinion
- View details

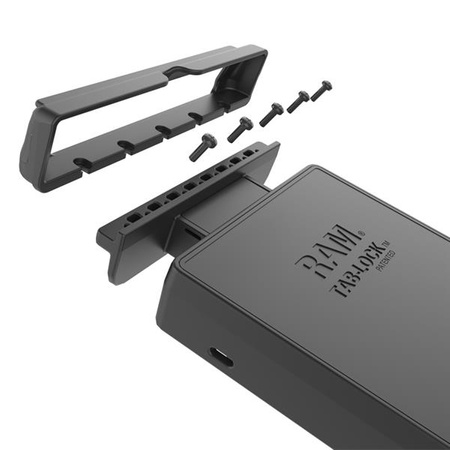

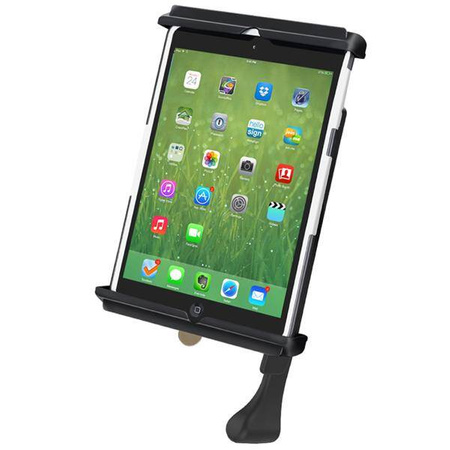

The RAM-HOL-TABL12U consists of a spring loaded backplate, custom support cups and locking mechanism for the iPad mini WITH skin, sleeve or case. This spring loaded design makes it easy to load and unload your iPad mini, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your iPad mini can be used just as it was intended. Quickly lock the cradle, keeping your iPad mini secure and safe from theft. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. The Tab-Lock cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size. Note: Product consists of holder only. Case not included. BrandSymbolRAM-HOL-TABL12UProducer code793442939778SeriesProduct Weight522 g544 gHardware IncludedAssembly Hardware|(2) #8 x 5/8" Sheet Metal Screws|(2) M4 x 32mm Machine Screws|(2) M4 Nylock Nuts|(2) KeysHolder DimensionsHeight Range: 6.75" - 8.75"|Width Range: 5.06" - 5.68"|Depth Range: .13" - 1"Hole Pattern4-Hole AMPS: 1.181" x 1.496"AMPS 4-HoleMaterialsHigh strength compositePackaging TypePoly BagDevice or Accessory TypeTabletComponent partsRAM-HOL-TAB12-CUPSURAM-HOL-TABLBU - CompatibilityASUS MeMO Pad 8 with CaseASUS VivoTab 8 with CaseAmazon Fire 7 KidsAmazon Fire HD 8 KidsAmazon Fire HD 8 with CaseApple iPad mini 6 with CaseDell Venue 8 (2014) with CaseDell Venue 8 7840 with CaseDell Venue 8 Pro with CaseDell Venue 8 with CaseHuawei MediaPad M3 Lite with CaseHuawei MediaPad M3 with CaseHuawei MediaPad T1 8.0 with CaseHuawei MediaPad T3 8 with CaseLG G Pad F 8.0 (2nd Gen) with CaseLG G Pad F2 8.0 with CaseLG G Pad II 8.0 with CaseLG G Pad X II 8.0 with CaseLenovo IdeaTab A2107 with CaseLenovo Ideapad Miix 300 with CaseLenovo Tab 2 A8 with CaseLenovo Tab 4 8 Plus with CaseLenovo Tab 4 8 with CaseLenovo Tab A8-50 with CaseLenovo Tab S8 with CaseLenovo Tab3 8 with CaseNvidia Shield Tablet with CasePanasonic Toughpad FZ-M1Samsung Galaxy Tab 2 7.0 with CaseSamsung Galaxy Tab 3 8.0 with CaseSamsung Galaxy Tab A 8.4 with CaseSamsung Galaxy Tab E 8.0 with CaseSamsung Galaxy Tab Pro 8.4 with CaseSamsung Galaxy Tab A7 Lite 8.7 with CaseSocial Mobile Rhino T80Apple iPad mini (A17 Pro) with Case
