RAM® Tab-Tite™ Drill-Down Mount with Backing Plate for Small Tablets
RAM® Tab-Tite™ Drill-Down Mount with Backing Plate for Small Tablets
RAM® Tab-Tite™ Drill-Down Mount with Backing Plate for Small Tablets
RAM® Tab-Tite™ Drill-Down Mount with Backing Plate for Small Tablets

RAM® Tab-Tite™ Drill-Down Mount with Backing Plate for Small Tablets

Part#:
RAM-B-138-TAB4-225B2U
UPC:
793442820175
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
139,61 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions

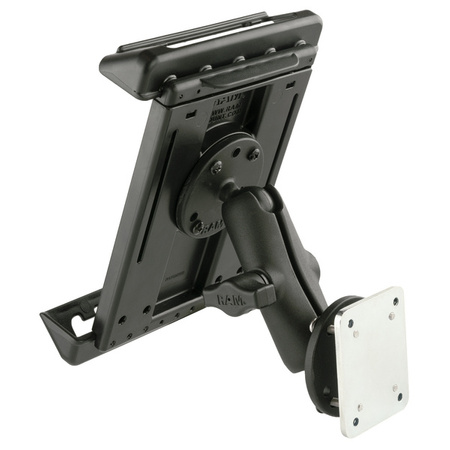

The RAM-B-138-TAB4-225B2U consists of a 2.10" x 2.60" backer plate, double socket arm, round base adapter and Tab-Tite universal clamping cradle. The spring loaded Tab-Tite cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Brand
RAM Mounts
Symbol
RAM-B-138-TAB4-225B2U
Producer code
793442820175
Series
Tab-Tite
Product Weight
544 g
612 g
Hardware Included
Assembly Hardware|(1) 2.10" x 2.60" Steel Backing Plate|(4) #8-32 x 1" Screws|(4) #8 Split Lock Washers|(4) #8 Flat Washers
Holder Dimensions
Height Range: 7.375" - 10"|Width Range: 4" - 5.31"|Depth Range: .13" - 1.06"
Socket To Socket Length
3"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
Ball Size
B Size (1")
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Steel|Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Component parts
RAM-B-101U-225B2
RAM-HOL-TAB4U
