RAM® Tab-Tite™ Handlebar U-Bolt Mount for Large Tablets
RAM® Tab-Tite™ Handlebar U-Bolt Mount for Large Tablets
RAM® Tab-Tite™ Handlebar U-Bolt Mount for Large Tablets
RAM® Tab-Tite™ Handlebar U-Bolt Mount for Large Tablets

RAM® Tab-Tite™ Handlebar U-Bolt Mount for Large Tablets

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price153,21 €
158,65 €
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

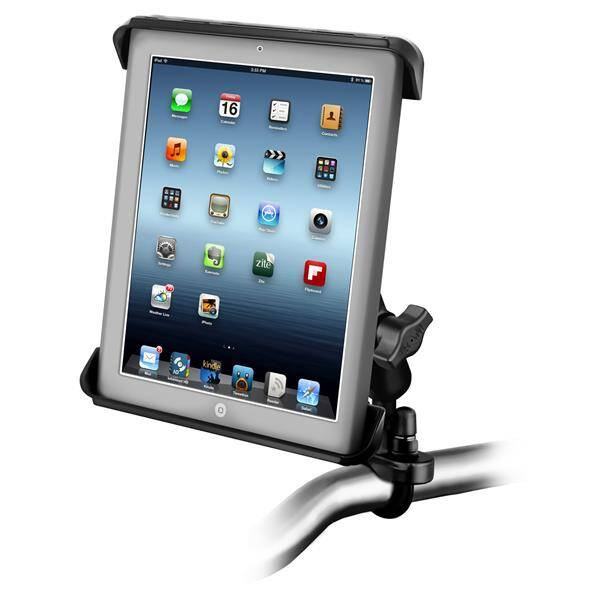

    The RAM-B-149Z-TAB-LG consists of a zinc coated u-bolt base, standard length double socket arm, diamond adapter base and universal Tab-Tite cradle. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. With 2 sets of interchangeable cup ends, ranging from different sizes and features, you can fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, this new RAM product is just what you need to get the most out of your mobile device.
    Symbol
    RAM-B-149Z-TAB-LG
    Producer code
    793442937682
    Series
    Product Weight
    499 g
    Hardware Included
    Assembly Hardware|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
    Holder Dimensions
    Height Range: 8.5" - 11.75"|Width Range: 7.75" - 8.25"|Depth Range: .56" - 1.1"
    Clamp Range
    .5" - 1.25" diameter
    Socket-to-Socket Length
    3"
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|High strength composite
    Packaging Type
    Retail Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Medium Arm
    Diameter Range
    .5" - 1.25"
    Device or Accessory Type
    Tablet
    Component parts
    RAM-B-149Z-202U
    RAM-HOL-TAB-LGU
    Socket To Socket Length
    3"
    Ball Size
    B Size (1")
