Part#:UPC:
RAM-B-166-TAB-SM
793442937835
Brand
Symbol
RAM-B-166-TAB-SM
Producer code
793442937835
Series
Product Weight
671 g
Hardware Included
Assembly Hardware
Holder Dimensions
Height Range: 7" - 10"|Width Range: 4" - 5.31"|Depth Range: .44" - 1.06"
Suction Size
3.3" Diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Retail Bag
Mounting Type
Suction Cup
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Tablet
Vehicle Type
Aircraft
Component parts
RAM-B-166-202U
RAM-HOL-TAB-SMU
Socket To Socket Length
3"
Ball Size
B Size (1")
Most 7" Tablets
Ask a question
Write your opinion
- View details

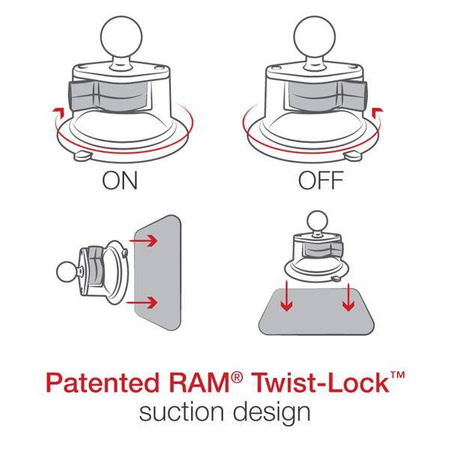

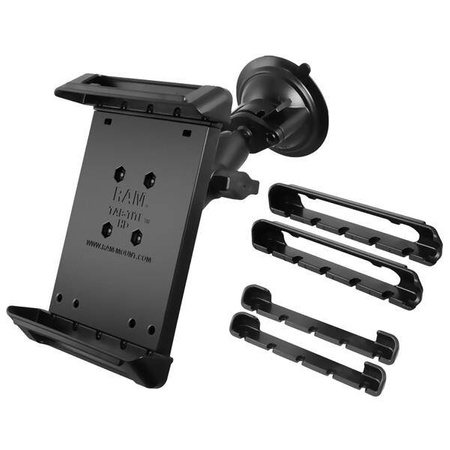

The RAM-B-166-TAB-SM consists of a 3.3" suction cup twist lock base, double socket arm, diamond adapter base, Tab-Tite cradle and 3 sets of cup ends to accommodate for tablets of various sizes. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded, quick release Tab-Tite cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. BrandSymbolRAM-B-166-TAB-SMProducer code793442937835SeriesProduct Weight671 gHardware IncludedAssembly HardwareHolder DimensionsHeight Range: 7" - 10"|Width Range: 4" - 5.31"|Depth Range: .44" - 1.06"Suction Size3.3" DiameterSocket-to-Socket Length3"Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|High strength compositePackaging TypeRetail BagMounting TypeSuction CupBall & Socket SizeB Size 1" (Holds 907.18 gramss)Socket Arm LengthMedium ArmDevice or Accessory TypeTabletVehicle TypeAircraftComponent partsRAM-B-166-202URAM-HOL-TAB-SMUSocket To Socket Length3"Ball SizeB Size (1") - CompatibilityMost 7" Tablets
