RAM® Thin-Dock™ + Data for Zebra ET401 & ET4x 8"
Part#:UPC:
RAM-HOL-ZE46PDU
793442032431
- Features:

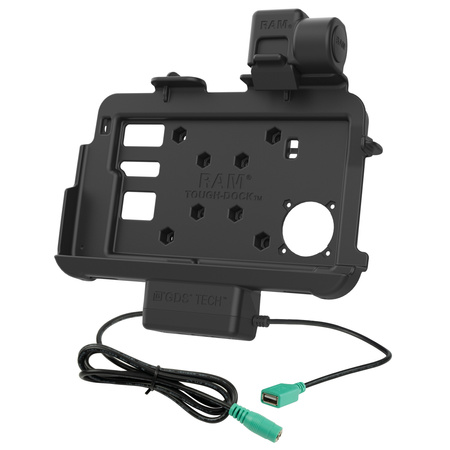

- Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45

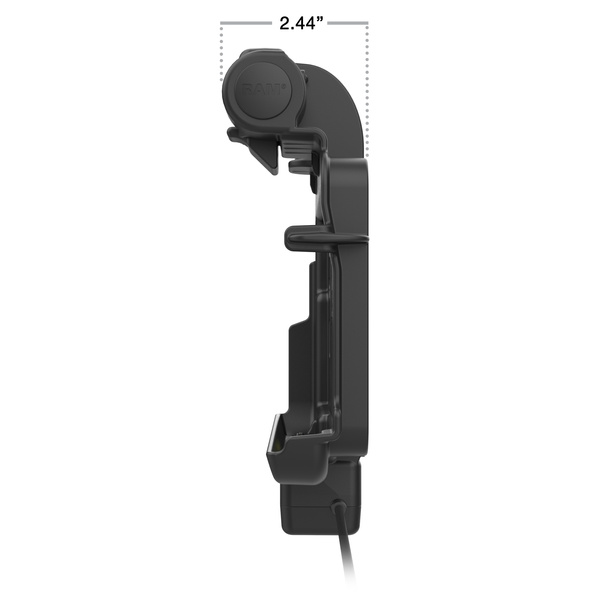

- Slim-profile design at 2.44" depth with metal reinforcement plate

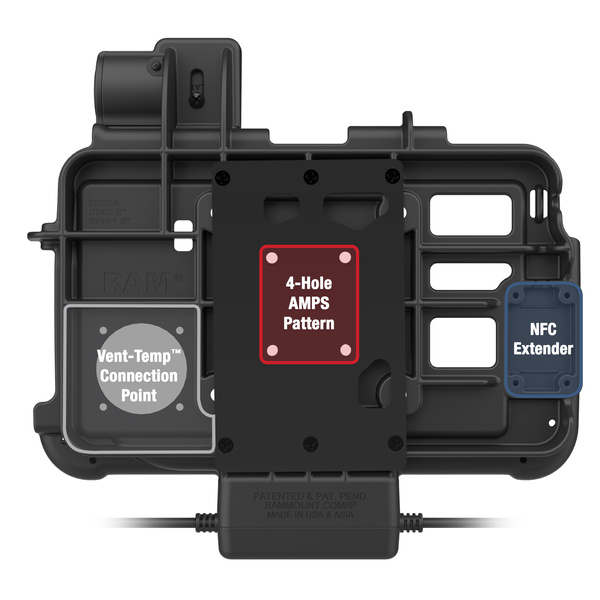

- Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Compatible with RAM® Vent-Temp™ and NFC Extender
- Backed by a 3-year warranty
Brand
Symbol
RAM-HOL-ZE46PDU
Producer code
793442032431
Series
New
Yes
Hardware Included
(4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (4) #10-24 x 5/8" Machine Screws (4) #10-24 Nylock Nuts (2) Cable Clamps
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
12V @ 2A
Power Output
24W
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Output Connector
USB 2.0 Type A
Output Cable Length
225mm
Peripheral Output
500mAh
Transfer Speed
12Mbps
Certifications
RoHS|WEEE|CE|FCC|IC|RCM
Zebra ET401 8"
Zebra ET40 8"
Zebra ET45 8"
Ask a question
Write your opinion
- View details

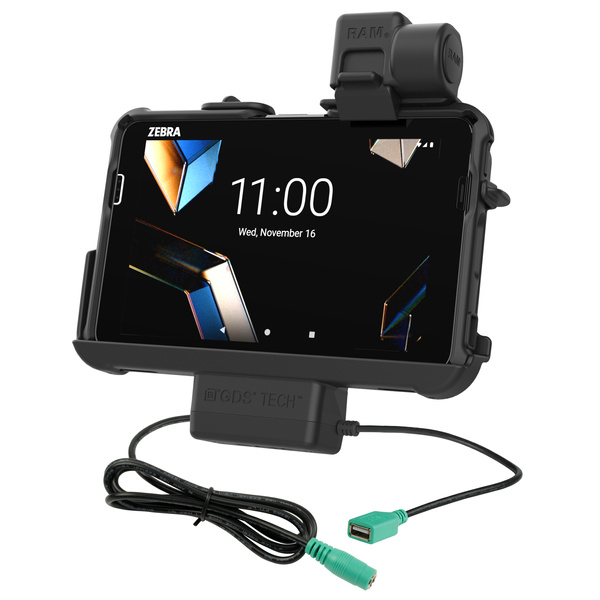

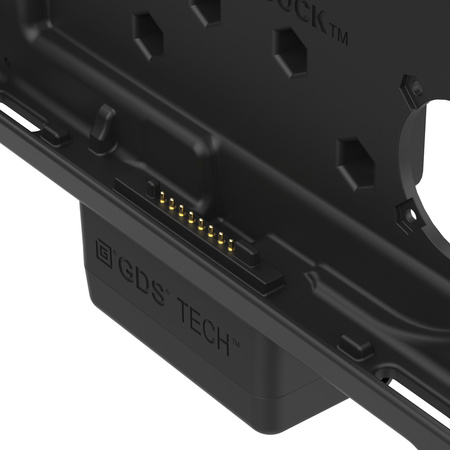

The RAM Thin-Dock + Data for Zebra ET401 & ET4x 8" (RAM-HOL-ZE46PDU) delivers a low-profile, 2.44"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 10" enterprise tablets, connecting directly to the tablet's integrated pogo pins to ensure a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock keeps your tablet powered through pogo pin contacts while docked, with power supplied via the docks USB Type-C connector. Connect a mouse, keyboard, or printer using the peripheral USB-A connector. The design also maintains access to the tablets side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support OEM accessories like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM Vent-Temp, a temperature control accessory, and the RAM NFC Extender. Enhance your workflow further using the integrated 2-hole mounting plate, compatible with RAM 2-hole diamond bases, allowing you to mount an additional device such as a phone, handheld scanner, or other accessories. BrandSymbolRAM-HOL-ZE46PDUProducer code793442032431SeriesNewYesHardware Included(4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (4) #10-24 x 5/8" Machine Screws (4) #10-24 Nylock Nuts (2) Cable ClampsHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagOutput Voltage12V @ 2APower Output24WInput Connector5.5mm DC ConnectorInput Cable Length1 MeterOutput ConnectorUSB 2.0 Type AOutput Cable Length225mmPeripheral Output500mAhTransfer Speed12MbpsCertificationsRoHS|WEEE|CE|FCC|IC|RCM - CompatibilityZebra ET401 8"Zebra ET40 8"Zebra ET45 8"
