RAM® Thin-Dock™ + Dual USB for Zebra ET401 & ET4x 10"
Part#:UPC:
RAM-HOL-ZE47PD2U
793442032479
- Features:
- Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45

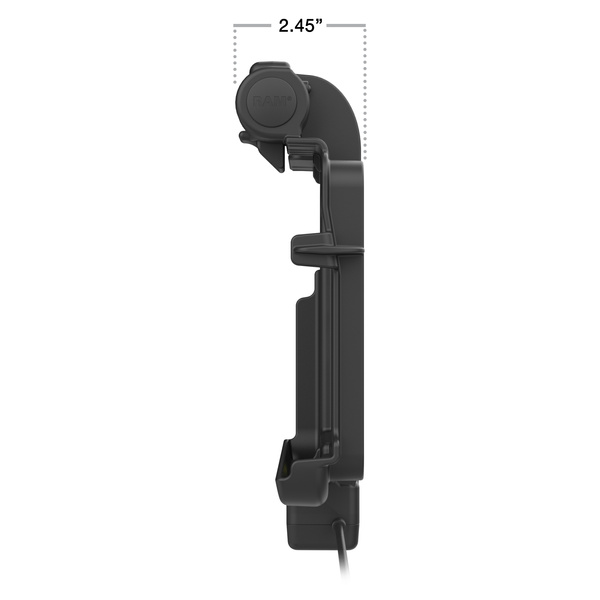

- Slim-profile design at 2.45" depth with metal reinforcement plate

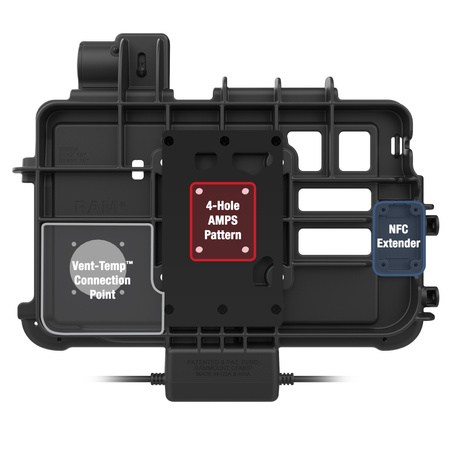

- Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Compatible with RAM® Vent-Temp™ and NFC Extender
- Backed by a 3-year warranty
Brand
Symbol
RAM-HOL-ZE47PD2U
Producer code
793442032479
Series
New
Yes
Hardware Included
(4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (4) #10-24 x 5/8" Machine Screws (4) #10-24 Nylock Nuts (1) Cable Clamp
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
12V @ 2A
Power Output
24W
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Output Connector
(2) USB 2.0 Type A
Output Cable Length
225mm
Peripheral Output
900mAh (per port)
Transfer Speed
12Mbps
Certifications
RoHS|WEEE|CE|FCC|IC|RCM
Zebra ET401 10"
Zebra ET40 10"
Zebra ET45 10"
Ask a question
Write your opinion
- View details

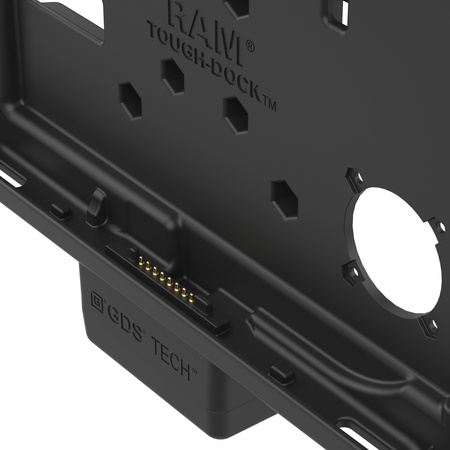

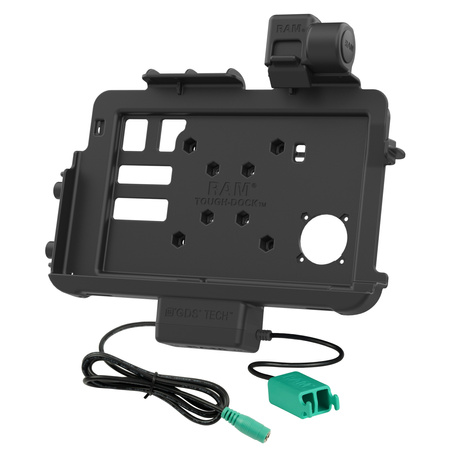

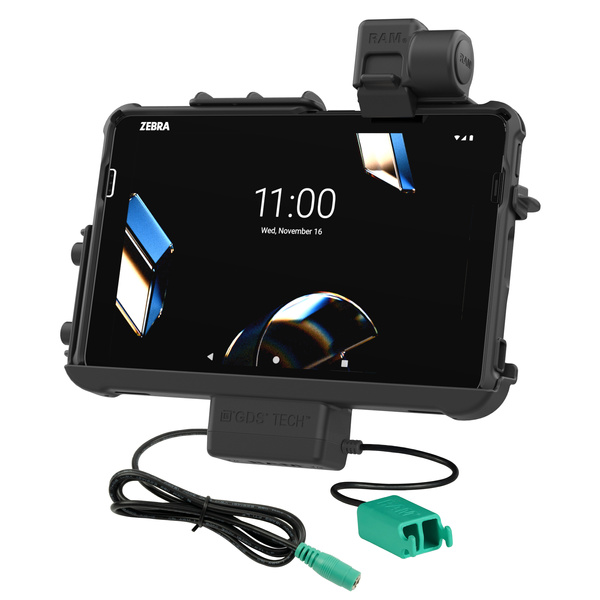

The RAM Thin-Dock + Dual USB for Zebra ET401 & ET4x 10" (RAM-HOL-ZE47PD2U) delivers a low-profile, 2.45"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 10" enterprise tablets, connecting directly to the tablet's integrated pogo pins to ensure a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock keeps your tablet powered through pogo pin contacts while docked, with power supplied via the docks USB Type-C connector. Connect up to two peripheral devices such as a mouse, keyboard, or printer using the peripheral dual USB-A connector. The design also maintains access to the tablets side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support add-ons like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM Vent-Temp, a temperature control accessory, and the RAM NFC Extender. Enhance your workflow further using the integrated 2-hole mounting plate, compatible with RAM 2-hole diamond bases, allowing you to mount an additional device such as a phone, handheld scanner, or other accessories. BrandSymbolRAM-HOL-ZE47PD2UProducer code793442032479SeriesNewYesHardware Included(4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (4) #10-24 x 5/8" Machine Screws (4) #10-24 Nylock Nuts (1) Cable ClampHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagOutput Voltage12V @ 2APower Output24WInput Connector5.5mm DC ConnectorInput Cable Length1 MeterOutput Connector(2) USB 2.0 Type AOutput Cable Length225mmPeripheral Output900mAh (per port)Transfer Speed12MbpsCertificationsRoHS|WEEE|CE|FCC|IC|RCM - CompatibilityZebra ET401 10"Zebra ET40 10"Zebra ET45 10"
