Part#:UPC:
RAM-B-400-A-UN12W-V7M-1
793442900105
- Features:
- Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output

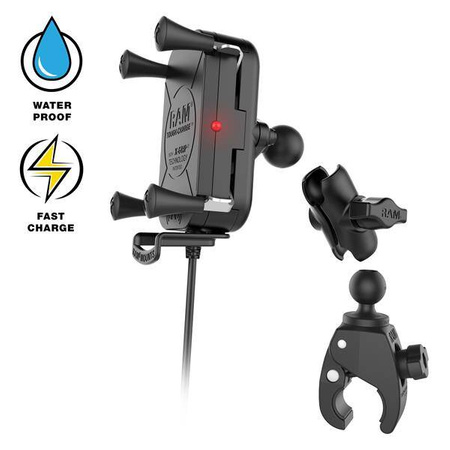

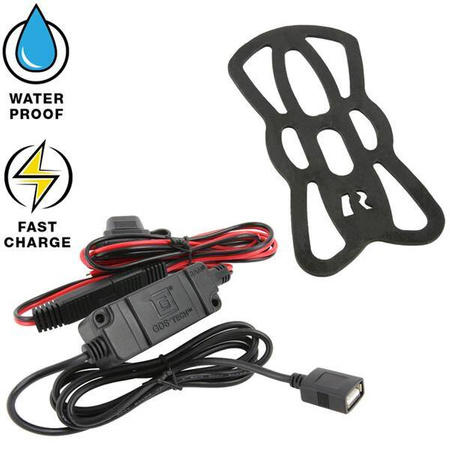

- Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, RAM® Tough-Claw™ clamping base, and hardwire charger
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required
Brand
Symbol
RAM-B-400-A-UN12W-V7M-1
Producer code
793442900105
Series
Product Weight
821 g
Hardware Included
(1) Safety Tether|(1) Glue Tube for Rubber Caps|(1) Cradle Leg|(1) Cradle Leg Cover|(1) Silicon sleeve for USB waterproof connection|(1) Hardwire Charger with Cable|(4) Small zip ties|(4) Large zip ties
Holder Dimensions
Width Range: 2.375" - 3.25"|Depth Range: .875" max
Clamp Range
.625" - 1.14" diameter
Socket To Socket Length
1.75"
Ball Size
B Size (1")
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
High strength composite|Stainless steel
Packaging Type
Retail Box
Operating Temperature
0°C to +37.7°C
Regulatory
Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant
Certifications
CE Certification|KC|E-Mark Certification|RCM Certification|FCC Certification
CE Certification|E-Mark Certification|RCM Certification|FCC Certification
Component parts
RAM-B-201U-A
RAM-HOL-UN12WB-V7M-1
RAP-B-400U
Apple iPhone 11
Apple iPhone 11 Pro
Apple iPhone 11 Pro Max
Apple iPhone 8
Apple iPhone 8 Plus
Apple iPhone SE
Apple iPhone X
Apple iPhone Xr
Apple iPhone Xs
Apple iPhone Xs Max
Blackberry Evolve X
Blackview BV9900
Blackview BV9900 Pro
Google Pixel 3
Google Pixel 3 XL
Google Pixel 4
Google Pixel 4 XL
Google Pixel 5
Google Pixel 6
Google Pixel 6 Pro
Google Pixel 7
Google Pixel 7 Pro
Huawei Mate 20 Pro
Huawei P30 Pro
LG G6
LG G6+
LG G7 ThinQ
LG G8 ThinQ
LG G8S ThinQ
LG V30
LG V35 ThinQ
LG V40 ThinQ
LG V50 ThinQ
Nokia 8 Sirocco
Nokia 9 PureView
Razer Phone 2
Samsung Galaxy Note 10
Samsung Galaxy Note 10 Plus
Samsung Galaxy Note 5
Samsung Galaxy Note 8
Samsung Galaxy Note 9
Samsung Galaxy S10
Samsung Galaxy S10 5G
Samsung Galaxy S10+
Samsung Galaxy S10e
Samsung Galaxy S20
Samsung Galaxy S20+
Samsung Galaxy S20 Ultra 5G
Samsung Galaxy S21 5G
Samsung Galaxy S21+ 5G
Samsung Galaxy S21 Ultra 5G
Samsung Galaxy S22 5G
Samsung Galaxy S22+ 5G
Samsung Galaxy S22 Ultra 5G
Samsung Galaxy S23
Samsung Galaxy S23+
Samsung Galaxy S23 Ultra
Samsung Galaxy S6
Samsung Galaxy S6 Edge
Samsung Galaxy S6 Edge+
Samsung Galaxy S7
Samsung Galaxy S7 Active
Samsung Galaxy S7 Edge
Samsung Galaxy S8
Samsung Galaxy S8+
Samsung Galaxy S8 Active
Samsung Galaxy S9
Samsung Galaxy S9+
Sony Xperia XZ2
Sony Xperia XZ2 Compact
Sony Xperia XZ3
Xiaomi Mi 9
Xiaomi Mi 9 Explorer
Xiaomi Mi Mix 2S
Xiaomi Mi Mix 3
ZTE Axon 10 Pro
ZTE Axon 9 Pro
Google Pixel 8
Google Pixel 8 Pro
Samsung Galaxy S24
Samsung Galaxy S24+
Samsung Galaxy S24 Ultra
Ask a question
Write your opinion
- View details

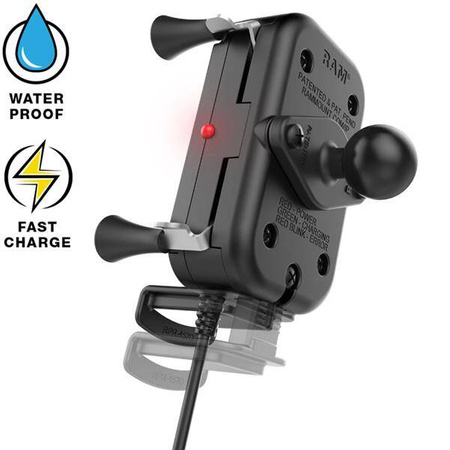

The RAM Tough-Charge with X-Grip Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM X-Grip Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position it's placed at. For added security and peace of mind, a device tether is included thats recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM Tough-Charge with X-Grip Technology wireless charging kit includes a B size diamond base featuring a 1 rubber ball, short length double socket arm, and a RAM Tough-Claw clamping base. With the RAM Tough-Claw base, you can easily attach the wireless phone charger to round, square, and odd-shaped rails and bars ranging from .625 to 1.14 in outer diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger. BrandSymbolRAM-B-400-A-UN12W-V7M-1Producer code793442900105SeriesProduct Weight821 gHardware Included(1) Safety Tether|(1) Glue Tube for Rubber Caps|(1) Cradle Leg|(1) Cradle Leg Cover|(1) Silicon sleeve for USB waterproof connection|(1) Hardwire Charger with Cable|(4) Small zip ties|(4) Large zip tiesHolder DimensionsWidth Range: 2.375" - 3.25"|Depth Range: .875" maxClamp Range.625" - 1.14" diameterSocket To Socket Length1.75"Ball SizeB Size (1")Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsHigh strength composite|Stainless steelPackaging TypeRetail BoxOperating Temperature0°C to +37.7°CRegulatoryOver Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture ResistantCertificationsCE Certification|KC|E-Mark Certification|RCM Certification|FCC CertificationCE Certification|E-Mark Certification|RCM Certification|FCC CertificationComponent partsRAM-B-201U-ARAM-HOL-UN12WB-V7M-1RAP-B-400U - CompatibilityApple iPhone 11Apple iPhone 11 ProApple iPhone 11 Pro MaxApple iPhone 8Apple iPhone 8 PlusApple iPhone SEApple iPhone XApple iPhone XrApple iPhone XsApple iPhone Xs MaxBlackberry Evolve XBlackview BV9900Blackview BV9900 ProGoogle Pixel 3Google Pixel 3 XLGoogle Pixel 4Google Pixel 4 XLGoogle Pixel 5Google Pixel 6Google Pixel 6 ProGoogle Pixel 7Google Pixel 7 ProHuawei Mate 20 ProHuawei P30 ProLG G6LG G6+LG G7 ThinQLG G8 ThinQLG G8S ThinQLG V30LG V35 ThinQLG V40 ThinQLG V50 ThinQNokia 8 SiroccoNokia 9 PureViewRazer Phone 2Samsung Galaxy Note 10Samsung Galaxy Note 10 PlusSamsung Galaxy Note 5Samsung Galaxy Note 8Samsung Galaxy Note 9Samsung Galaxy S10Samsung Galaxy S10 5GSamsung Galaxy S10+Samsung Galaxy S10eSamsung Galaxy S20Samsung Galaxy S20+Samsung Galaxy S20 Ultra 5GSamsung Galaxy S21 5GSamsung Galaxy S21+ 5GSamsung Galaxy S21 Ultra 5GSamsung Galaxy S22 5GSamsung Galaxy S22+ 5GSamsung Galaxy S22 Ultra 5GSamsung Galaxy S23Samsung Galaxy S23+Samsung Galaxy S23 UltraSamsung Galaxy S6Samsung Galaxy S6 EdgeSamsung Galaxy S6 Edge+Samsung Galaxy S7Samsung Galaxy S7 ActiveSamsung Galaxy S7 EdgeSamsung Galaxy S8Samsung Galaxy S8+Samsung Galaxy S8 ActiveSamsung Galaxy S9Samsung Galaxy S9+Sony Xperia XZ2Sony Xperia XZ2 CompactSony Xperia XZ3Xiaomi Mi 9Xiaomi Mi 9 ExplorerXiaomi Mi Mix 2SXiaomi Mi Mix 3ZTE Axon 10 ProZTE Axon 9 ProGoogle Pixel 8Google Pixel 8 ProSamsung Galaxy S24Samsung Galaxy S24+Samsung Galaxy S24 Ultra
