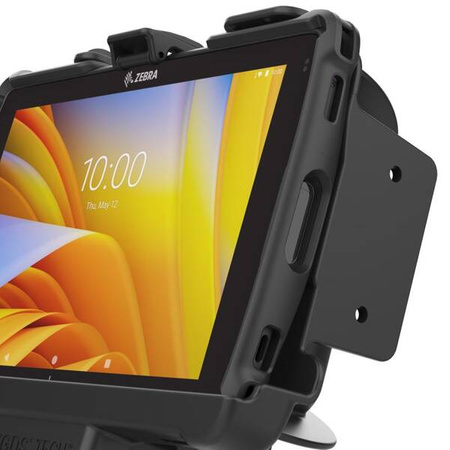

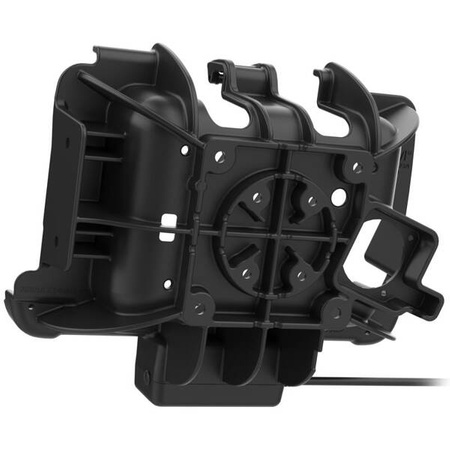

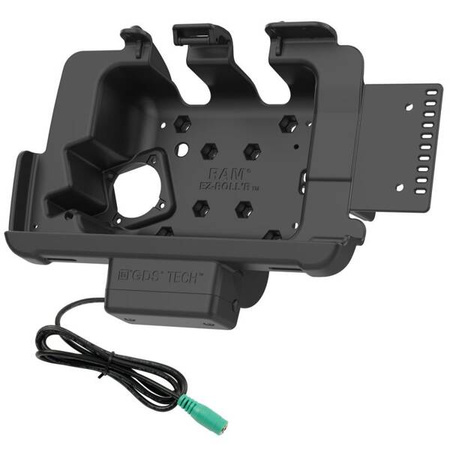

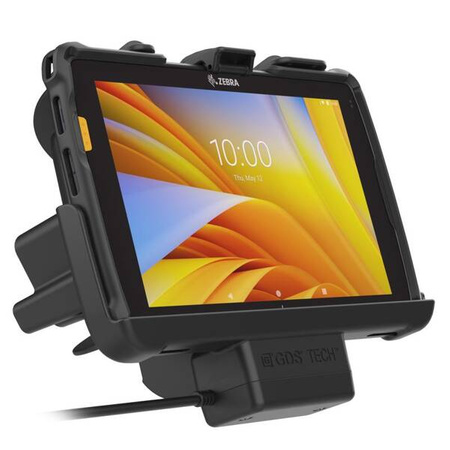

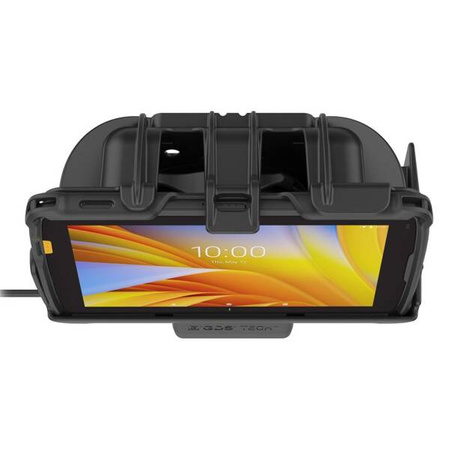

RAM® Tough-Dock™ for Zebra ET4x 8" Tablet
Part#:UPC:
RAM-HOL-ZE20PU
793442935152
- Features:
- RAM® Tough-Dock™ with EZ-Roll'r™ design provides charging capabilities for the Zebra ET40 & ET45 8" enterprise tablets with Rugged Frame via DC 5.5mm power jack; MIL-STD 810G Shock and Vibration tested
- When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Brand
Symbol
RAM-HOL-ZE20PU
Producer code
793442935152
Series
Product Weight
562 g
Hardware Included
(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable Ties
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Certifications
CE Certification|E-Mark Certification|RCM Certification|FCC Certification
RoHS|WEEE|CE|UKCA
Zebra ET40 8" Tablet with Rugged Frame
Zebra ET45 8" Tablet with Rugged Frame
Ask a question
Write your opinion
- View details
The RAM Tough-Dock for Zebra ET40 & ET45 8" enterprise tablets with Rugged Frame allows you to keep the device charged through the pogo pin contacts when the device is dockedpower is provided by connecting to the dock's 5.5mm DC power jack. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone or other handheld device. BrandSymbolRAM-HOL-ZE20PUProducer code793442935152SeriesProduct Weight562 gHardware Included(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable TiesHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagInput Connector5.5mm DC ConnectorInput Cable Length1 MeterCertificationsCE Certification|E-Mark Certification|RCM Certification|FCC CertificationRoHS|WEEE|CE|UKCA - CompatibilityZebra ET40 8" Tablet with Rugged FrameZebra ET45 8" Tablet with Rugged Frame
