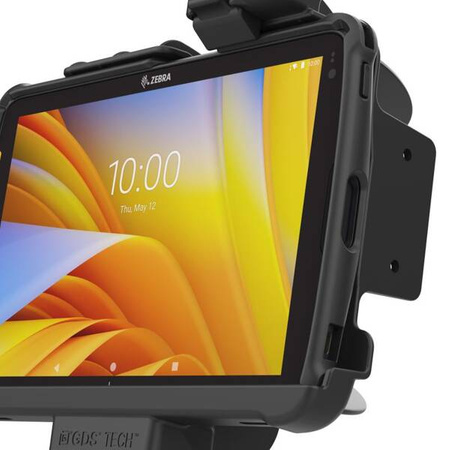

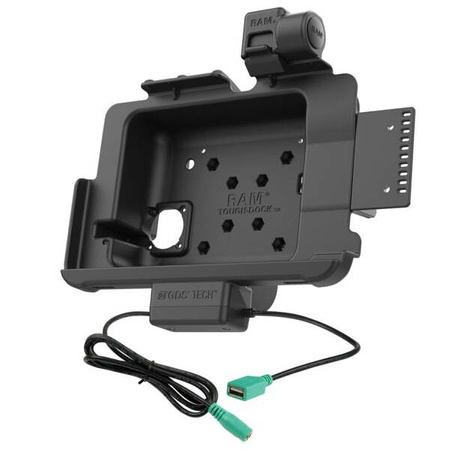

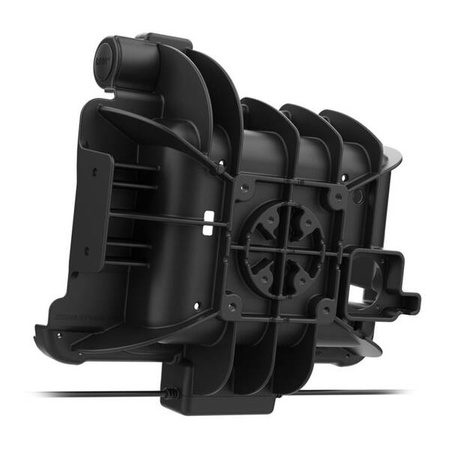

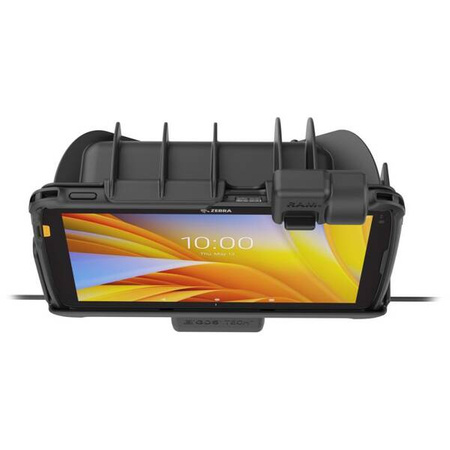

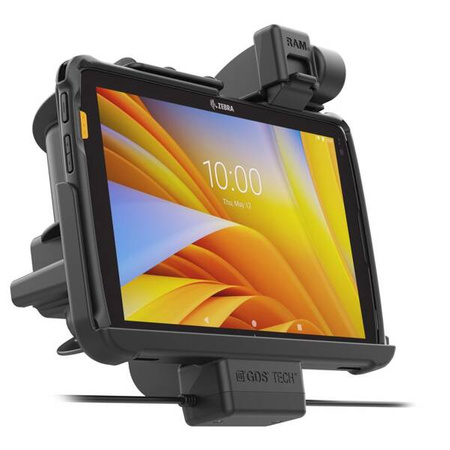

RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10" Tablet
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10" Tablet
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10" Tablet
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10" Tablet
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10" Tablet
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10" Tablet
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10" Tablet
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10" Tablet
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10" Tablet
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10" Tablet
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10" Tablet
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10" Tablet

RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10" Tablet

Part#:
RAM-HOL-ZE21PDNLLU
UPC:
793442017148
+ Add to compareAdd to shopping list
  • Features:
  • Form-fit + single USB Type-A dock designed specifically for the Zebra ET40 & ET45 10" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
  • When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked
  • Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
  • Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
  • Backed by a 3-year warranty
  • When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked, and a USB Type A connector for adding a peripheral
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
320,95 €
/ pc incl. VAT
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
The RAM Tough-Dock Power + Data with Latch for Zebra ET4x 10" Tablet (RAM-HOL-ZE21PDNLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A single USB Type-A pigtail connector is provided for adding one additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS Ergo accessories like the GDS Roto-Mag and GDS Hand-Stand. To mount this dock, pair any RAM 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
Brand
RAM Mounts
Symbol
RAM-HOL-ZE21PDNLLU
Producer code
793442017148
Series
Tough-Dock
Product Weight
735 g
Hardware Included
(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable Ties
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Output Connector
USB 2.0 Type A
Output Cable Length
242mm
Transfer Speed
12Mbps
Certifications
CE Certification|E-Mark Certification|RCM Certification|FCC Certification
RoHS|WEEE|CE|UKCA
New
Yes
Peripheral Output
500mAh
Zebra ET40 10" Tablet with Rugged Frame
Zebra ET45 10" Tablet with Rugged Frame
