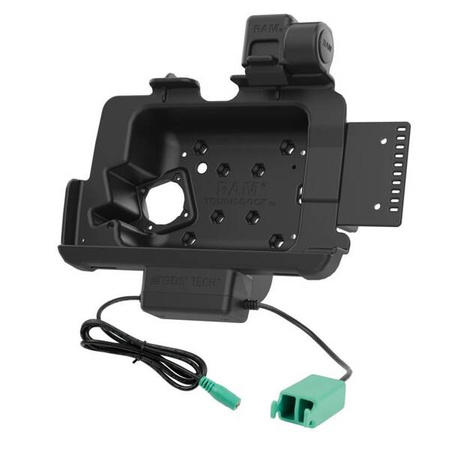

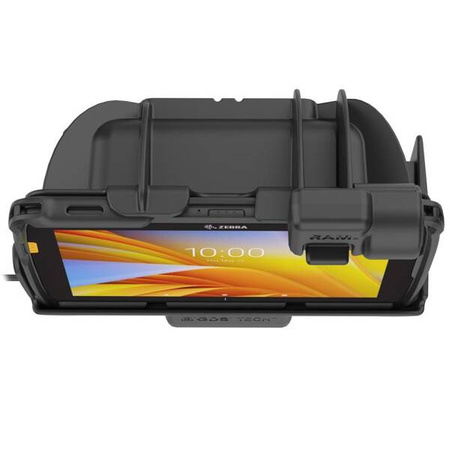

RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET4x 8" Tablet
Part#:UPC:
RAM-HOL-ZE20PD2NLLU
793442017117
- Features:
- Form-fit + dual USB Type-A dock designed specifically for the Zebra ET40 & ET45 8" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
- When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked
- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
- Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
- Backed by a 3-year warranty
- When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked, and a dual USB Type A connector for adding up to 2 peripherals
Brand
Symbol
RAM-HOL-ZE20PD2NLLU
Producer code
793442017117
Series
Product Weight
689 g
Hardware Included
(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable Ties
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Output Connector
(2) USB 2.0 Type A
Output Cable Length
250mm
Transfer Speed
12Mbps
Certifications
CE Certification|E-Mark Certification|RCM Certification|FCC Certification
RoHS|WEEE|FCC|CE|ICES|UKCA
New
Yes
Peripheral Output
900mAh (per port)
Zebra ET40 8" Tablet with Rugged Frame
Zebra ET45 8" Tablet with Rugged Frame
Ask a question
Write your opinion
- View details
The RAM Tough-Dock Power + Dual USB with Latch for Zebra ET4x 8" Tablet (RAM-HOL-ZE20PD2NLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A dual USB Type-A pigtail connector is provided for adding up to two additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS Ergo accessories like the GDS Roto-Mag and GDS Hand-Stand. To mount this dock, pair any C and D size RAM 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. BrandSymbolRAM-HOL-ZE20PD2NLLUProducer code793442017117SeriesProduct Weight689 gHardware Included(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable TiesHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagInput Connector5.5mm DC ConnectorInput Cable Length1 MeterOutput Connector(2) USB 2.0 Type AOutput Cable Length250mmTransfer Speed12MbpsCertificationsCE Certification|E-Mark Certification|RCM Certification|FCC CertificationRoHS|WEEE|FCC|CE|ICES|UKCANewYesPeripheral Output900mAh (per port) - CompatibilityZebra ET40 8" Tablet with Rugged FrameZebra ET45 8" Tablet with Rugged Frame
