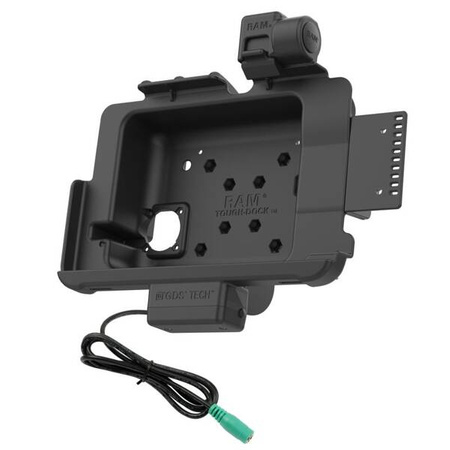

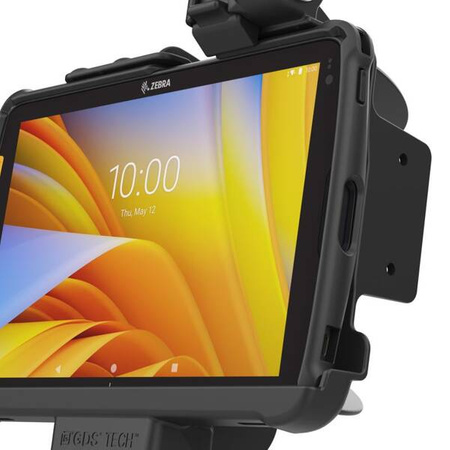

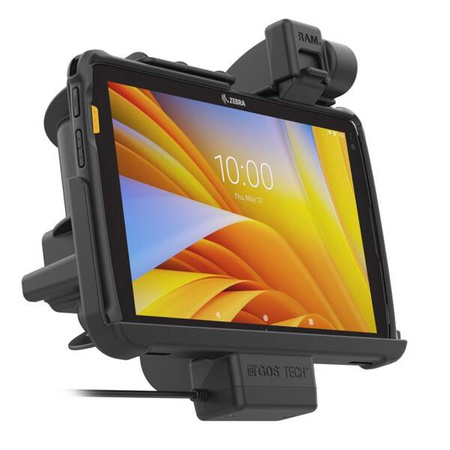

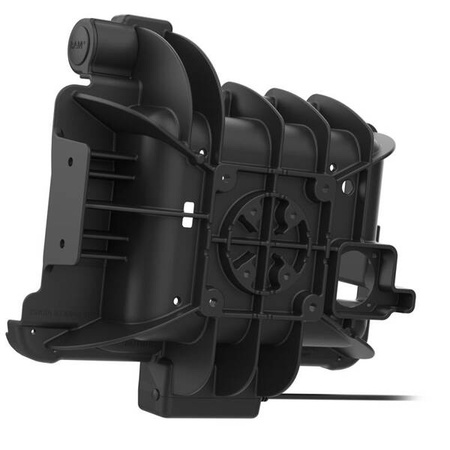

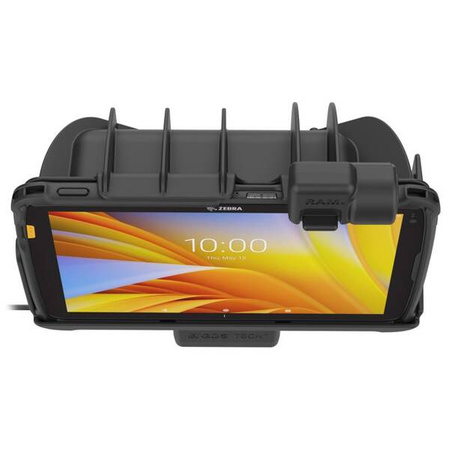

RAM® Tough-Dock™ with Latch for Zebra ET4x 10" Tablet
Part#:UPC:
RAM-HOL-ZE21PNLLU
793442015625
- Features:
- Form-fit dock designed specifically for the Zebra ET40 & ET45 10" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
- When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked
- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
- Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
- Backed by a 3-year warranty
Brand
Symbol
RAM-HOL-ZE21PNLLU
Producer code
793442015625
Series
Product Weight
748 g
Hardware Included
(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable Ties
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Certifications
CE Certification|E-Mark Certification|RCM Certification|FCC Certification
RoHS|WEEE|CE|UKCA
Zebra ET40 10" Tablet with Rugged Frame
Zebra ET45 10" Tablet with Rugged Frame
Ask a question
Write your opinion
- View details
For frequent docking and undocking of the Zebra ET40 & ET45 10" tablets wrapped in a Rugged Frame, this form-fit RAM Tough-Dock(RAM-HOL-ZE21PNLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS Ergo accessories like the GDS Roto-Mag and GDS Hand-Stand. To mount this dock, pair any C and D size RAM 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. BrandSymbolRAM-HOL-ZE21PNLLUProducer code793442015625SeriesProduct Weight748 gHardware Included(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable TiesHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagInput Connector5.5mm DC ConnectorInput Cable Length1 MeterCertificationsCE Certification|E-Mark Certification|RCM Certification|FCC CertificationRoHS|WEEE|CE|UKCA - CompatibilityZebra ET40 10" Tablet with Rugged FrameZebra ET45 10" Tablet with Rugged Frame
