RAM® Tough-Mag™ 48MM 4-Point Magnetic Mounting Base
Part#:UPC:
RAM-MAG48-4U
793442921261
- Features:
- Four-point steel plate with 2 sets of 4 rubber coated external magnets for attaching to windows up to 6mm in thickness
- 4-hole AMPS and VESA patterns for attaching C or D size RAM® drill-down ball bases
- External magnets include handles for ease of install
- Backed by a lifetime warranty
Brand
Symbol
RAM-MAG48-4U
Producer code
793442921261
Series
Product Weight
2109 g
Hardware Included
Assembly Hardware|(8) #4-40 x 1/4" Machine Screws|(4) #10-24 x 3/4" Machine Screws|(4) #10-24 Nylock Nuts|(4) Rubber Caps
Product Dimensions
Overall Length: 8.99"|Overall Width: 8.99"|Overall Thickness (inside surface): 1.64"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|75 x 75mm VESA
Packaging Type
Poly Bag
Ask a question
Write your opinion
- View details

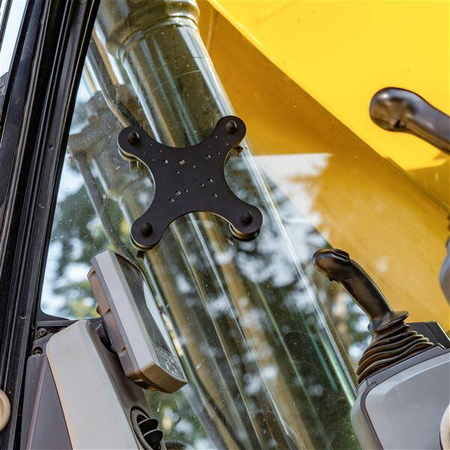

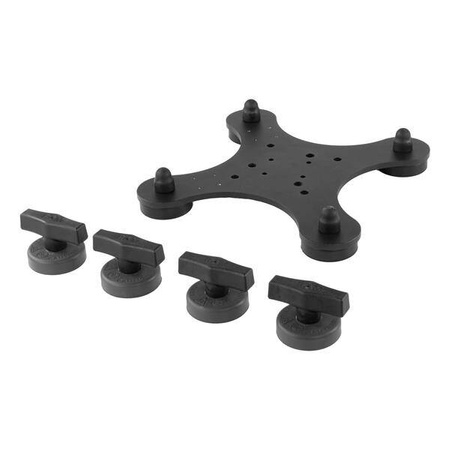

The RAM Tough-Mag Magnetic Window Mount (RAM-MAG48-4U) consists of a steel plate with four magnetic ends and four 48mm external magnets for mounting on a window, or any other flat glass surface. The plate contains pre-drilled 4-hole AMPS and VESA patterns for attaching a recommended C, or D size drill-down ball base. The base is designed with rubber coated magnets to prevent scratching the mounting surface and reduce the impact of the jarring magnetic pull. Each external magnet includes a handle in order to easily install the base to a window. Compatible with any sturdy, flat surface up to 6mm in thickness. BrandSymbolRAM-MAG48-4UProducer code793442921261SeriesProduct Weight2109 gHardware IncludedAssembly Hardware|(8) #4-40 x 1/4" Machine Screws|(4) #10-24 x 3/4" Machine Screws|(4) #10-24 Nylock Nuts|(4) Rubber CapsProduct DimensionsOverall Length: 8.99"|Overall Width: 8.99"|Overall Thickness (inside surface): 1.64"Hole Pattern4-Hole AMPS: 1.181" x 1.496"|75 x 75mm VESAPackaging TypePoly Bag - Recommended products
