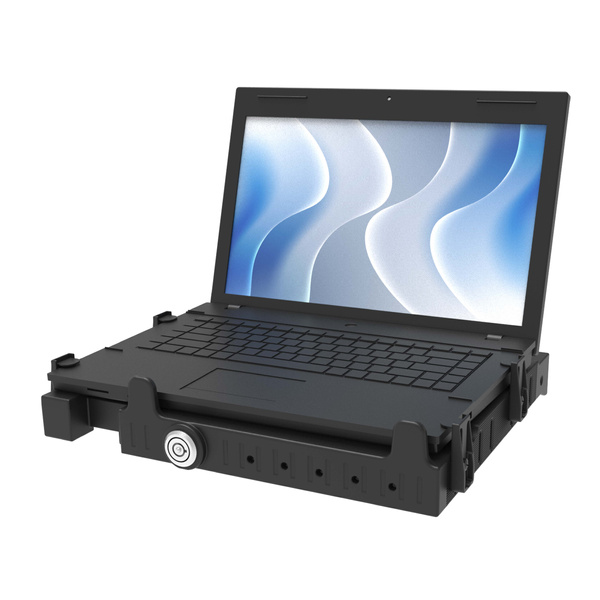

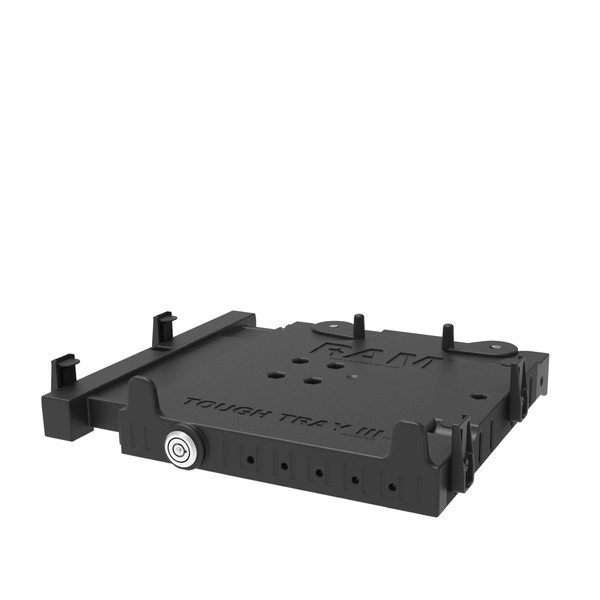

RAM® Tough-Tray™ III Spring Loaded Laptop Tray
Part#:UPC:
RAM-234-7
793442033247

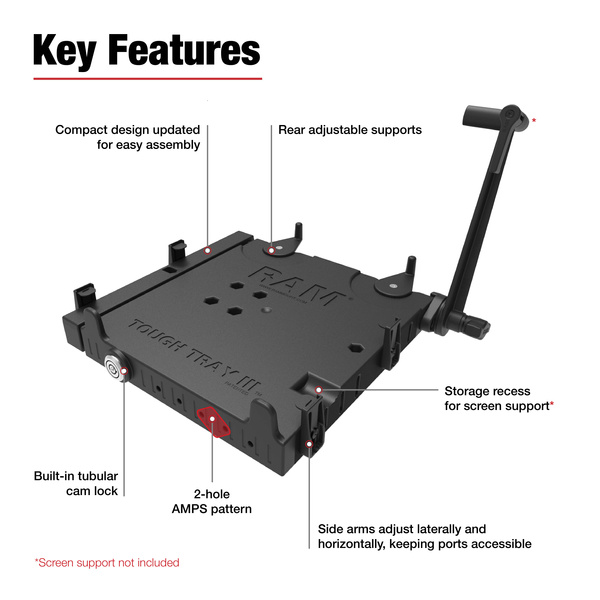

- Features:

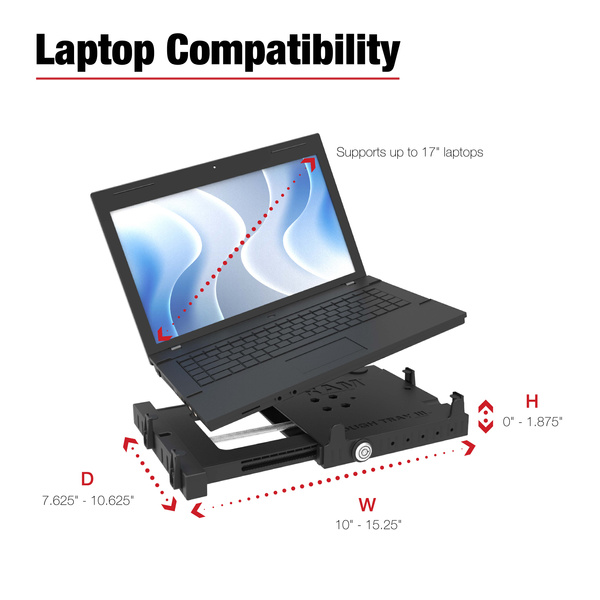

- Spring-loaded universal laptop tray accommodates most 10" to 17" laptops (measured diagonally)
- Adjustable supports keep laptop secure and leave ports accessible

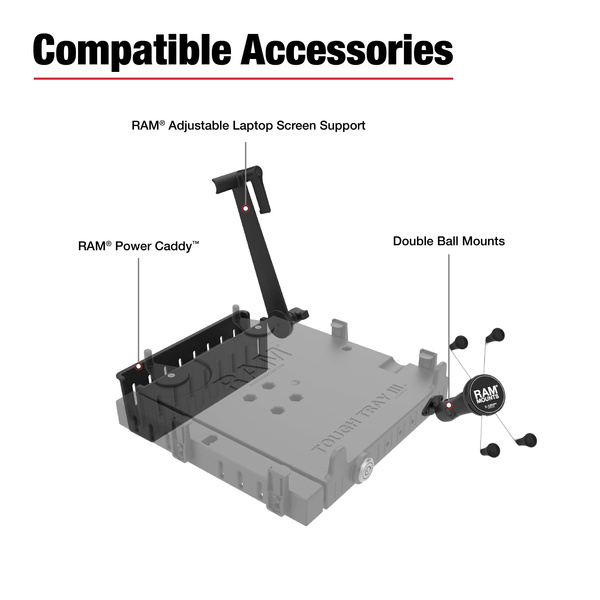

- Compatible with RAM® Power Caddy™ and Adjustable Screen Support
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Brand
Symbol
RAM-234-7
Producer code
793442033247
Series
New
Yes
Hardware Included
(2) Keys|(4) #10-24 x 3/4" Machine Screws|(4) #10-24 Nylock Nuts

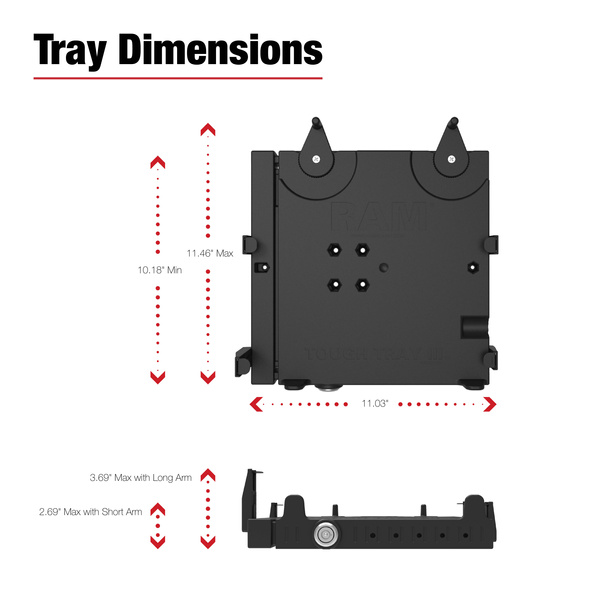

Tray Dimensions
Width Range: 10" - 15.25"|Side Arm Clamp Height: 0" - 1.875"|Depth Range: 7.625" - 10.625"|Tray Thickness: 1.26"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Ask a question
Write your opinion
- View details
The RAM Tough-Tray III Spring Loaded Laptop Tray (RAM-234-7) is a rugged, highly adjustable vehicle and marine laptop mounting solution designed for secure use in mobile workstations, fleets, boats, and off-road environments. This third-generation Tough-Tray improves on earlier designs with a reduced footprint, enhanced adjustability, and simplified assembly. The spring-loaded cradle expands from 10" to 15" wide, securely accommodating laptops up to 17 inches (measured diagonally). Adjustable side supports fit laptops ranging from 0" to 1.875" thick and include two interchangeable support lengthslong supports for rugged laptops, and shorter supports for slim devices. Side supports adjust horizontally to avoid blocking ports and feature foam padding to protect devices from vibration and scuffs. Swiveling rear supports accommodate laptop depths from 7.625" to 10.625", ensuring a secure and customized fit. An integrated tubular cam lock provides added security by locking the laptop in place, making this tray ideal for professional and commercial applications. The Tough-Tray III also features a built-in recess for the RAM Adjustable Laptop Screen Support, allowing it to nest cleanly when not in use, and is compatible with the RAM Power Caddy for convenient power management. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners. BrandSymbolRAM-234-7Producer code793442033247SeriesNewYesHardware Included(2) Keys|(4) #10-24 x 3/4" Machine Screws|(4) #10-24 Nylock NutsTray DimensionsWidth Range: 10" - 15.25"|Side Arm Clamp Height: 0" - 1.875"|Depth Range: 7.625" - 10.625"|Tray Thickness: 1.26"Hole Pattern4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly Bag - Recommended products
