RAM® Track Ball™ Marine Electronic Mount
RAM® Track Ball™ Marine Electronic Mount
RAM® Track Ball™ Marine Electronic Mount
RAM® Track Ball™ Marine Electronic Mount
RAM® Track Ball™ Marine Electronic Mount
RAM® Track Ball™ Marine Electronic Mount

RAM® Track Ball™ Marine Electronic Mount

Part#:
RAM-111B-354-TRA1U
UPC:
793442954696
+ Add to compareAdd to shopping list
  • Features:
  • Fishfinder track mount designed for track mounting systems including the RAM® Tough-Track™ and other third party track systems
  • Includes 1.5" diameter C size RAM® Track-Ball™, medium length C size socket arm, and 6.25" x 2" adapter plate for fishfinders and GPS chartplotters; RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • RAM® Track-Ball® compatible with most integrated kayak tracks
  • Adapter plate compatible with select Garmin, Lowrance, Raymarine and Humminbird Fishfinders and GPS chartplotters
  • Backed by a lifetime warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price131,19 €
132,15 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

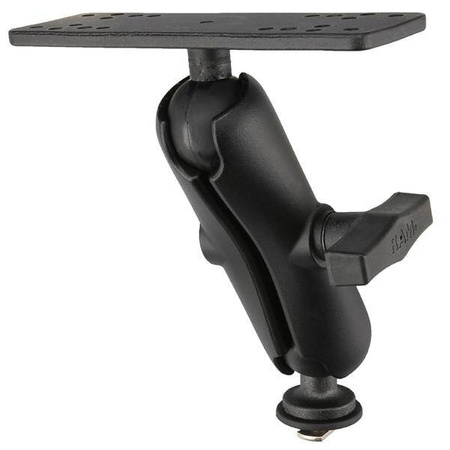

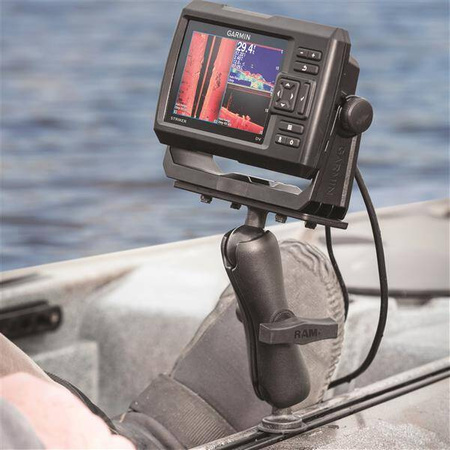

The RAM-111B-354-TRA1U consists of a Track Ball base that can attach to any track system including the RAM Tough-Track. Connected to the base is a standard length double socket arm and 6.25" x 2" rectangle plate for supporting a wide range of fishfinders and chartplotters. The rectangular plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
Brand
RAM Mounts
Symbol
RAM-111B-354-TRA1U
Producer code
793442954696
Series
Track Ball
Product Weight
544 g
Hardware Included
(1) Friction Washer|(1) 1/4"-20 x 7/8" T-Bolt
Product Dimensions
Overall Height: 7.5"
T-Bolt Dimensions
.48" x .95"
Socket-to-Socket Length
4.66"
Hole Pattern
See Drawing
Plate Size
6.25" x 2"
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Track
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Kayak
Component parts
RAM-111BU
RAM-201U
RAP-354U-TRA1
T Bolt Dimensions
.48" x .95"
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
Garmin ECHOMAP Plus 72cv
Garmin ECHOMAP Plus 73cv
Garmin ECHOMAP Plus 74cv
Garmin ECHOMAP Plus 75cv
Garmin ECHOMAP Plus 77cv
Garmin Fishfinders and GPS Chartplotters
Garmin GPSMAP 722
Garmin GPSMAP 722xs
Garmin GPSMAP 723
Garmin GPSMAP 723xsv
Garmin GPSMAP 742
Garmin GPSMAP 742xs
Garmin GPSMAP 743
Garmin GPSMAP 743xsv
Garmin Striker Plus 5cv
Garmin Striker Plus 7cv
Garmin Striker Plus 7sv
Garmin Striker Vivid 5cv
Garmin Striker Vivid 7cv
Garmin Striker Vivid 7sv
Humminbird Fishfinders and GPS Chartplotters
Lowrance Fishfinders and GPS Chartplotters
Lowrance HDS Carbon 7
Lowrance HDS LIVE 7
Raymarine Fishfinders and GPS Chartplotters
Garmin ECHOMAP UHD2 5"
Garmin ECHOMAP UHD2 7"
