RAM® Twist-Lock™ Suction Cup and Composite Yoke Clamp Mount

RAM® Twist-Lock™ Suction Cup and Composite Yoke Clamp Mount

Part#:
RAP-B-121-224-1U
UPC:
793442925054
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price98,85 €
110,19 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping

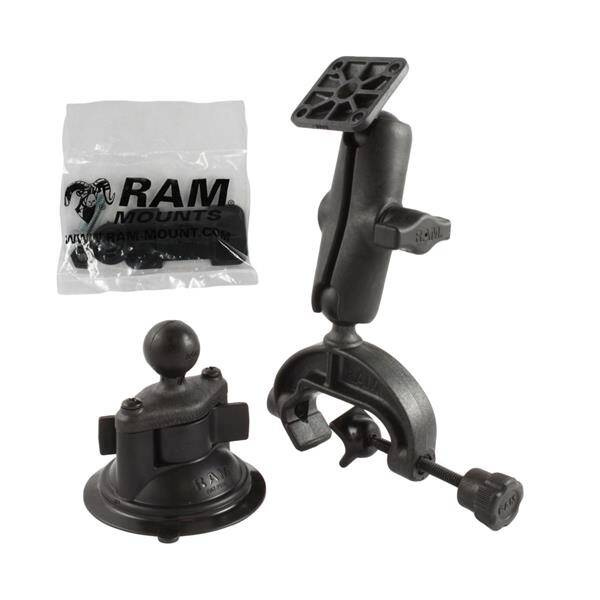

The RAP-B-121-224-1U consists of a yoke clamp base, 3.3" diameter suction cup base, standard length double socket arm and 2" x 1.7" square base that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface. Clamp Base Dimensions: Accommodates rails from 0.625" to 1.25" in diameter
Brand
RAM Mounts
Symbol
RAP-B-121-224-1U
Producer code
793442925054
Series
Twist-Lock
Warranty
RAM MOUNT
Product Weight
0.8 lb
Hardware Included
Assembly Hardware|Flat Clamp Hardware Adapter
Clamp Range
.625" - 1.25"
Suction Size
3.3" Diameter
Socket-to-Socket Length
3"
Hole Pattern [eng]
4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
Weight Capacity
Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
Materials
High strength composite
Packaging Type
Poly Bag
Mounting Type
Suction Cup
Ball & Socket Size
B Size 1" (Holds 2 lbs)
Socket Arm Length
Medium Arm
RAM MOUNT
RAM MOUNT
