RAM® Twist-Lock™ Suction Cup Mount for Raymarine Dragonfly
Part#:UPC:
RAM-B-224-1-379-M616U
793442948015
Brand
Symbol
RAM-B-224-1-379-M616U
Producer code
793442948015
Series
Product Weight
272 g
Hardware Included
Assembly Hardware
Suction Size
3.3" Diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Suction Cup
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Thread Pitch
M6-1
Socket Arm Length
Medium Arm
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Kayak
Component parts
RAM-B-201U
RAM-B-224-1U
RAP-B-379U-M616
Socket To Socket Length
3"
Ball Size
B Size (1")
Raymarine Dragonfly 7 Pro
Raymarine Dragonfly-4 DV
Raymarine Dragonfly-4 DVS
Raymarine Dragonfly-4 PRO
Raymarine Dragonfly-5 DVS
Raymarine Dragonfly-5 M
Raymarine Dragonfly-5 Pro
Raymarine WiFish
Ask a question
Write your opinion
- View details

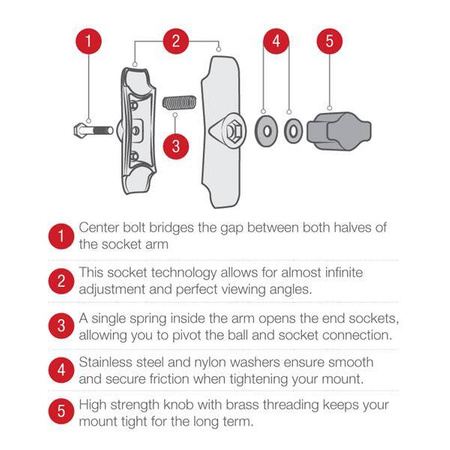

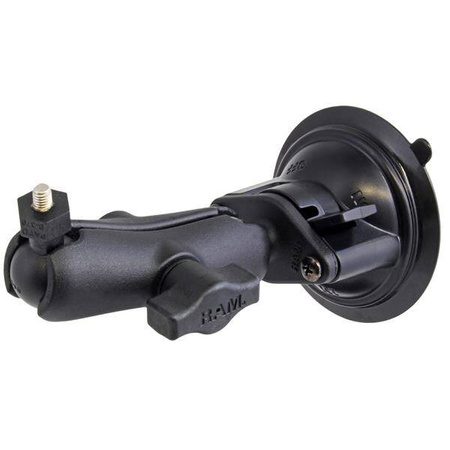

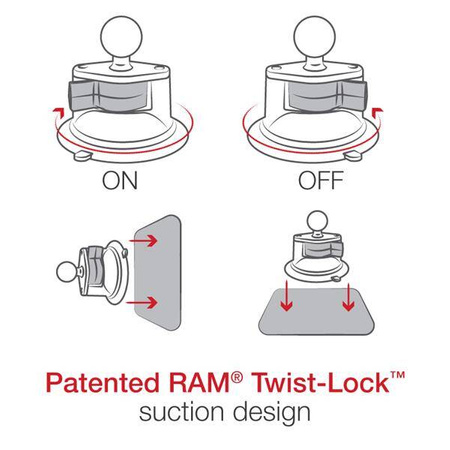

The RAM-B-224-1-379-M616U consists of a 3.3" diameter suction cup twist lock base, STANDARD length double socket arm and 1" diameter ball, containing a M6 x 30 SS HEX head bolt. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces. The RAM-B-224-1-379-M616U reduces the mounting footprint, compared to old dragonfly units that contain a large neck. This mount allows for a seamless marriage of RAM components into your Raymarine system, opening up the ball and socket system and all of our mounting options to you. BrandSymbolRAM-B-224-1-379-M616UProducer code793442948015SeriesProduct Weight272 gHardware IncludedAssembly HardwareSuction Size3.3" DiameterSocket-to-Socket Length3"Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|High strength compositePackaging TypePoly BagMounting TypeSuction CupBall & Socket SizeB Size 1" (Holds 907.18 gramss)Thread PitchM6-1Socket Arm LengthMedium ArmDevice or Accessory TypeFishfinderChartplotterVehicle TypePower BoatKayakComponent partsRAM-B-201URAM-B-224-1URAP-B-379U-M616Socket To Socket Length3"Ball SizeB Size (1") - CompatibilityRaymarine Dragonfly 7 ProRaymarine Dragonfly-4 DVRaymarine Dragonfly-4 DVSRaymarine Dragonfly-4 PRORaymarine Dragonfly-5 DVSRaymarine Dragonfly-5 MRaymarine Dragonfly-5 ProRaymarine WiFish
