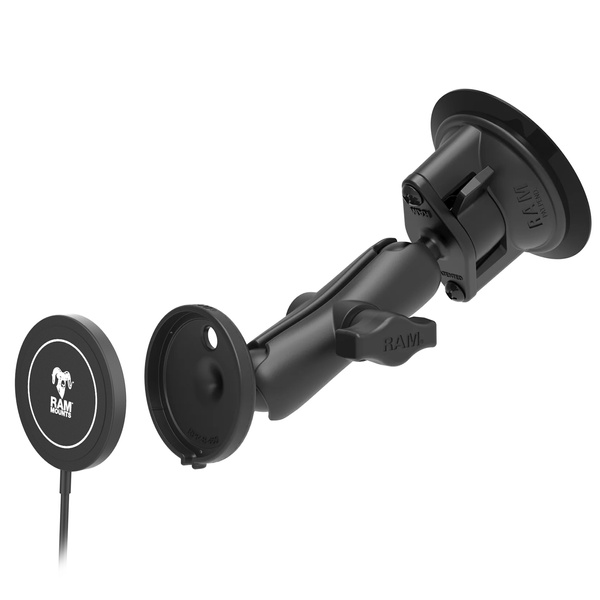

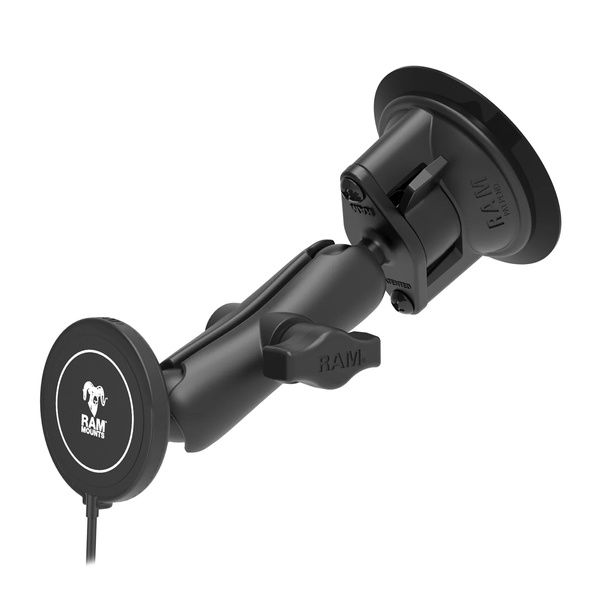

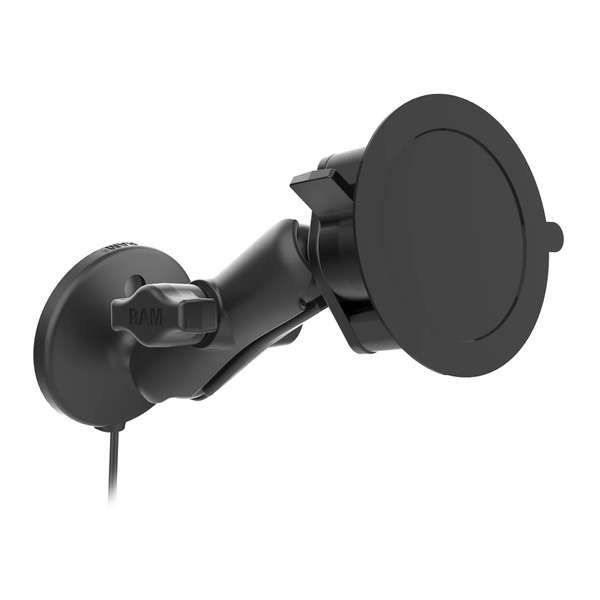

RAM® Twist-Lock™ Suction Cup Mount with RAM® Qi2 15W Wireless Charger
Part#:UPC:
RAM-B-166-AP-MAG-1-W2MU
793442031724
- Features:
- Wireless charging bundle built for windshields and other non-porous surfaces
- 15W Qi2 fast charging for efficient power delivery

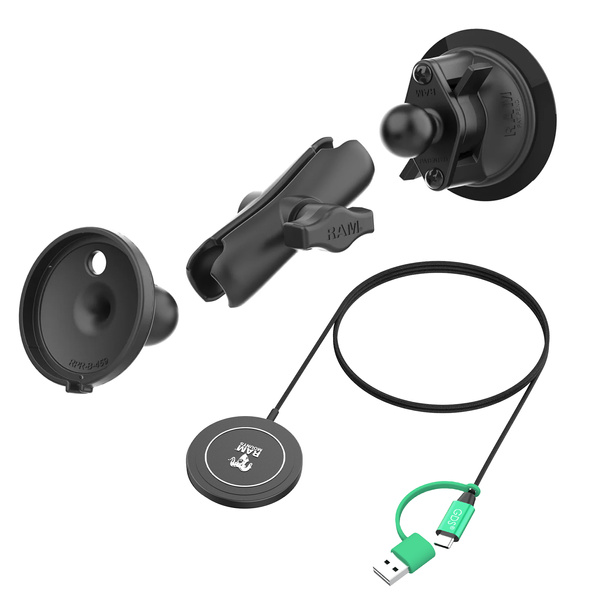

- Includes RAM® Twist-Lock™ suction cup base and medium length B size RAM® double socket arm
- Magsafe compatible; precise magnetic alignment for iPhone 12 and later, and AirPods
- Mounting components backs by a lifetime warranty; electronics backed by a 3-year warranty
Brand
Symbol
RAM-B-166-AP-MAG-1-W2MU
Producer code
793442031724
Series
New
Yes
Hardware Included
Assembly Hardware (1) RAM® Qi2 Wireless Charging Puck
Suction Size
3.3" Diameter
Socket To Socket Length
3"
Ball Size
B Size (1")
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Power Specifications
Operating Frequency: 360KHZ|Stand-by Consumption ~ 0.008A / 8mA @5VDC|80% Wireless Power Transfer Efficiency or Greater|Supports USB 2.0 BC1.2 Power Supply (5V)|Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
Input Voltage
USB 5V @ 3A|QC2.0 9V @ 2.22A|USB PD 2.0 5-15V @ 2A
Power Output
BPP - 5W|EPP - 7.5W|MPP - 15W
Output Connector

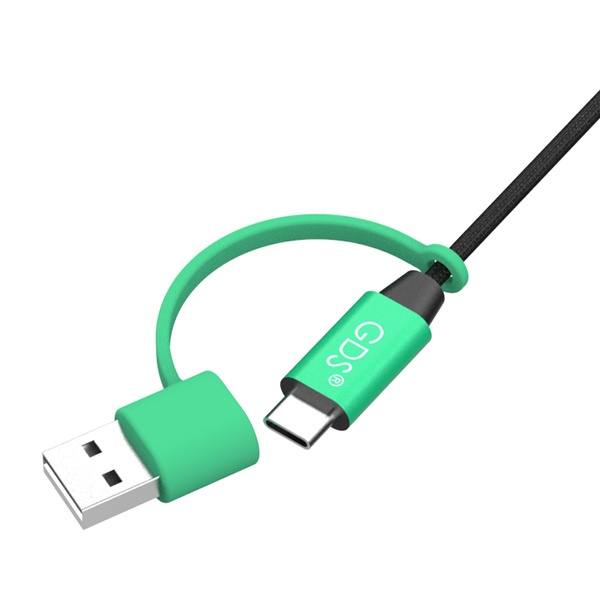

USB Type-C Male with USB-A Adapter
Output Cable Length
1 Meter
Operating Temperature
0°C to +40°C
Storage Temperature
-20°C to +80°C
Regulatory
Over Current Protection|Short Cirtcuit Protection|Over Temperature Protection|RoHS Compliance|WEEE Compliance
Certifications
IP67|SAE J1455|FCC Certification|CE Certification|E-Mark Certification|RCM Certification
Component parts
RAM-B-201U
RAM-B-224-1U
RAM-GDS-CHARGE-W2M
RAP-B-202-AP-MAG-1U
Ask a question
Write your opinion
- View details
The RAM Twist-Lock Suction Cup Mount with RAM Qi2 15W Wireless Charger (RAM-B-166-AP-MAG-1-W2MU) is your all-in-one solution for mounting and charging on the go. Just secure the Twist-Lock with the flick of a lever for a no-tools installation, its that easy. This kit includes the RAM Qi2 15W Wireless Charger, ball adapter, Twist-Lock suction cup base, and B size medium socket armdesigned to secure to any non-porous surface like windshields. With IP67 waterproof protection and a durable woven USB-C cord, youll get a reliable charge every time. Plus, harness your iPhones MagSafe magnetic charging for a seamless, secure connection, no fumbling with cables. BrandSymbolRAM-B-166-AP-MAG-1-W2MUProducer code793442031724SeriesNewYesHardware IncludedAssembly Hardware (1) RAM® Qi2 Wireless Charging PuckSuction Size3.3" DiameterSocket To Socket Length3"Ball SizeB Size (1")Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|High strength compositePackaging TypePoly BagPower SpecificationsOperating Frequency: 360KHZ|Stand-by Consumption ~ 0.008A / 8mA @5VDC|80% Wireless Power Transfer Efficiency or Greater|Supports USB 2.0 BC1.2 Power Supply (5V)|Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0Input VoltageUSB 5V @ 3A|QC2.0 9V @ 2.22A|USB PD 2.0 5-15V @ 2APower OutputBPP - 5W|EPP - 7.5W|MPP - 15WOutput ConnectorUSB Type-C Male with USB-A AdapterOutput Cable Length1 MeterOperating Temperature0°C to +40°CStorage Temperature-20°C to +80°CRegulatoryOver Current Protection|Short Cirtcuit Protection|Over Temperature Protection|RoHS Compliance|WEEE ComplianceCertificationsIP67|SAE J1455|FCC Certification|CE Certification|E-Mark Certification|RCM CertificationComponent partsRAM-B-201URAM-B-224-1URAM-GDS-CHARGE-W2MRAP-B-202-AP-MAG-1U - Recommended products
