Part#:UPC:
RAM-B-111U-C
793442943270
- Features:
- Complete flat surface, drill-down mounting solution with an overall height of 7.5"

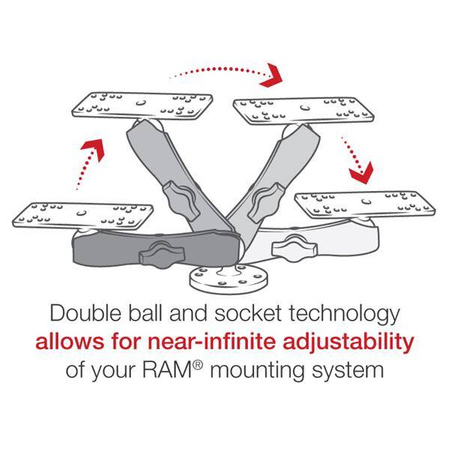

- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Brand
Symbol
RAM-B-111U-C
Producer code
793442943270
Product Weight
431 g
440 g

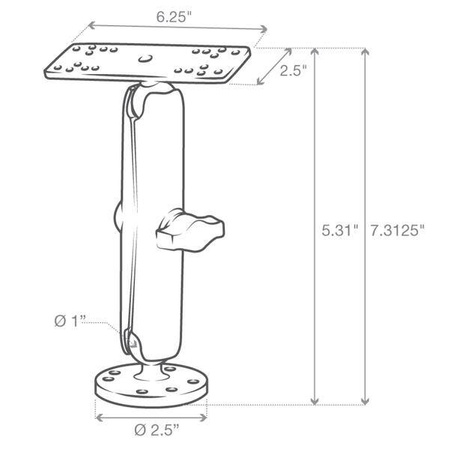

Product Dimensions
Overall Height: 7.3125"
Socket-to-Socket Length
5.31"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter|See Drawing
AMPS 4-Hole
3-Hole 120 Degree (Small)
Plate Size
Top Plate: 6.25" x 2.5"|Bottom Plate: 2.5" Diameter
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Long Arm
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Kayak
Component parts
RAM-B-111BU
RAM-B-201U-C
RAM-B-202U
Socket To Socket Length
5.31"
Ball Size
B Size (1")
Garmin GPSMAP 162
Garmin GPSMAP 168
Garmin GPSMAP 175
Garmin GPSMAP 180
Garmin GPSMAP 180C
Garmin GPSMAP 182
Garmin GPSMAP 185
Garmin GPSMAP 188
Garmin GPSMAP 232
Garmin GPSMAP 238
Garmin Striker 5 Series
Garmin Striker Plus 5cv
Garmin Striker Vivid 5cv
Ask a question
Write your opinion
- View details
The RAM-B-111U-C consists of a long double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1" B size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1" B size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters. BrandSymbolRAM-B-111U-CProducer code793442943270Product Weight431 g440 gProduct DimensionsOverall Height: 7.3125"Socket-to-Socket Length5.31"Hole Pattern4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter|See DrawingAMPS 4-Hole3-Hole 120 Degree (Small)Plate SizeTop Plate: 6.25" x 2.5"|Bottom Plate: 2.5" DiameterWeight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminumPackaging TypePoly BagMounting TypeDrill DownBall & Socket SizeB Size 1" (Holds 907.18 gramss)Socket Arm LengthLong ArmDevice or Accessory TypeFishfinderChartplotterVehicle TypePower BoatKayakComponent partsRAM-B-111BURAM-B-201U-CRAM-B-202USocket To Socket Length5.31"Ball SizeB Size (1") - CompatibilityGarmin GPSMAP 162Garmin GPSMAP 168Garmin GPSMAP 175Garmin GPSMAP 180Garmin GPSMAP 180CGarmin GPSMAP 182Garmin GPSMAP 185Garmin GPSMAP 188Garmin GPSMAP 232Garmin GPSMAP 238Garmin Striker 5 SeriesGarmin Striker Plus 5cvGarmin Striker Vivid 5cv
