RAM® Vertical 5" Offset Drill-Down Laptop Mount

RAM® Vertical 5" Offset Drill-Down Laptop Mount

Name: RAM® Vertical 5" Offset Drill-Down Laptop Mount
Brand: RAM Mounts
Price: 456.05 EUR
Availability: OutOfStock

Part#:

RAM-VB-184T-SW1

UPC:

793442926297

+ Add to compare Add to shopping list

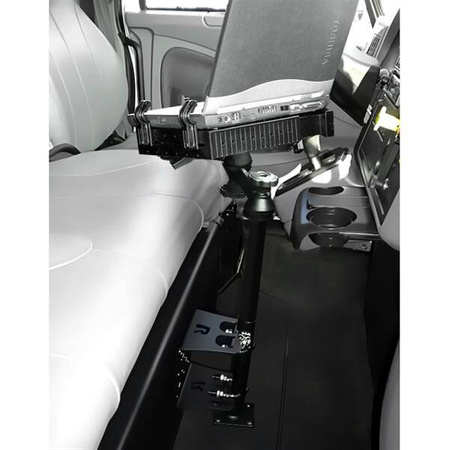

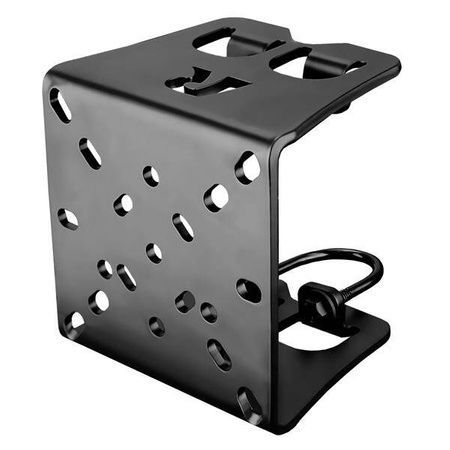

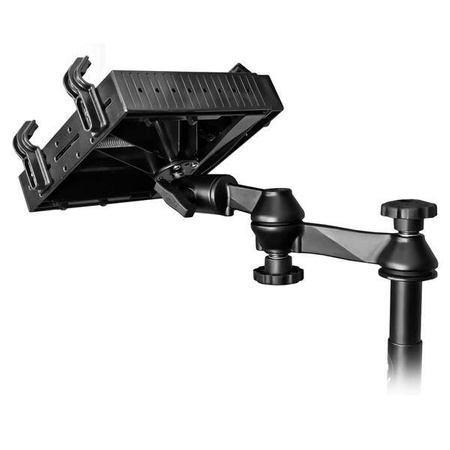

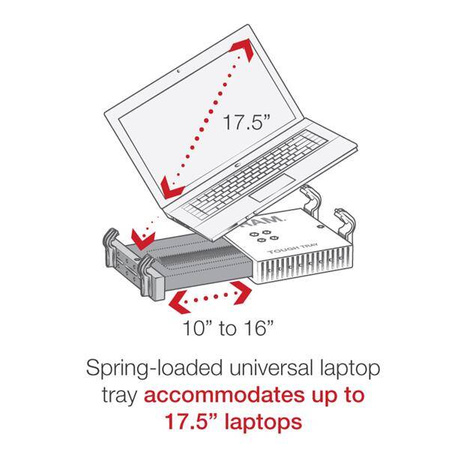

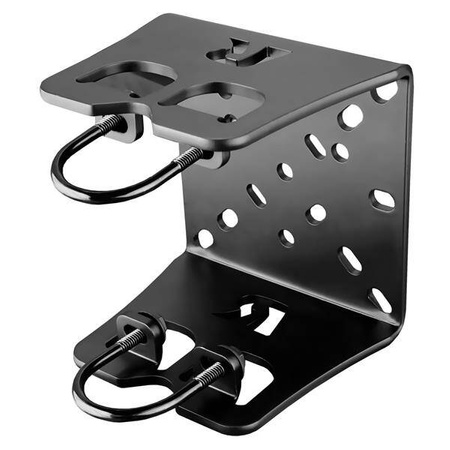

The RAM Tough-Tray is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four (4) side clamping arm with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics. The Tough-Tray is compatible with laptops that have 17" screens. Truck fleets world wide will appreciate the well crafted universal multi-function vehicle base now offered by RAM. Considering the wide variety of seating arrangements in the commercial vehicle market, this new vehicle base is reversible by design. Now installers dont have to choose between locating a flat surface or round tubing to attach to under the vehicle seat. RAM has you covered with either configuration. Tubing framed seats can be attached to in minutes using the supplied u-bolts. Once in place and safely secured, several hole patterns are available allowing the freedom to choose how best to create your custom mounting solution. Steel box frame seats need only four discrete holes drilled to secure the base. Using hardware chosen and supplied by the installer, secure the base where its most convenient. Using the supplied u-bolt hardware, attach any number of RAM pedestal mounts to create a mounting system unmatched in its versatility and stability. There simply is no substitute for RAM vehicle products.

Brand

RAM Mounts

Symbol

RAM-VB-184T-SW1

Producer code

793442926297

Series

Tough-Tray No-Drill

Product Weight

5443 g

5897 g

Hardware Included

Assembly Hardware|(2) 1/4"-20 x 3.375" U-Bolts|(4) 1/4"-20 Nylock Nuts|(4) 1/4" Flat Washers

Tray Dimensions

Width Range: 10" - 16"|Side Arm Clamp Height: .5" - 1.75"|Tray Depth: 10"|Tray Thickness: 2.125"

Hole Pattern

See Drawing

Materials

Powder coated steel|Marine grade-aluminum|High strength composite

Packaging Type

Box

Mounting Type

Drill Down

Ball & Socket Size

C Size 1.5" (Holds 1814.37 gramss)

Device or Accessory Type

Laptop

Vehicle Type

Car & Truck

Component parts

RAM-234-3

RAM-VB-184T

RAM-VP-SW1-8

Ball Size

C Size (1.5")
