RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Short
RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Short
RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Short
RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Short
RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Short
RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Short
RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Short
RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Short
RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Short
RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Short

RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Short

  • Features:
  • Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
  • Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
The product is available
Shipment on Wednesday 1594 pcs in stock
List price131,45 €
131,45 €
/ pc incl. VAT
14 days for easy returns
Find out in which store you can check the product and buy it right away
RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Short
RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Short
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

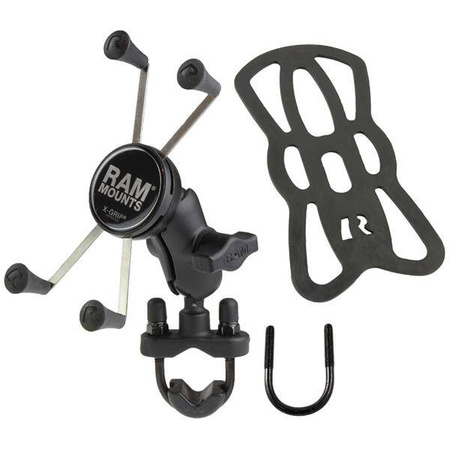

    The RAM-B-149Z-A-UN10U consists of a zinc coated u-bolt base, short double socket arm and universal spring loaded X-Grip IV cradle for large phones and phablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM B size 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip IV cradle expands and contracts, allowing for a perfect custom fit of your phone or phablet. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
    Symbol
    RAM-B-149Z-A-UN10U
    Producer code
    793442952579
    Product Weight
    313 g
    308 g
    Hardware Included
    (1) Optional Tether|(1) Glue Tube for Rubber Caps|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
    Holder Dimensions

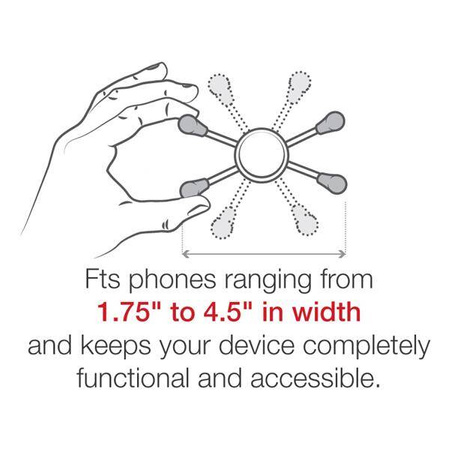

    Width Range: 1.75" - 4.5"|Depth Range: .875" max
    Clamp Range
    .5" - 1.25" diameter
    Socket-to-Socket Length
    1.75"
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|High strength composite|Stainless steel
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Short Arm
    Diameter Range
    .5" - 1.25"
    Device or Accessory Type
    Phone
    Vehicle Type
    Motorcycle
    Bicycle
    ATV
    UTV
    Dirt Bike
    Component parts
    RAM-B-201U-A
    RAM-B-231ZU
    RAM-HOL-UN10BU
    Socket To Socket Length
    1.75"
    Ball Size
    B Size (1")
