RAM® X-Grip® Large Tablet Mount with Handlebar U-Bolt Base
RAM® X-Grip® Large Tablet Mount with Handlebar U-Bolt Base
RAM® X-Grip® Large Tablet Mount with Handlebar U-Bolt Base
RAM® X-Grip® Large Tablet Mount with Handlebar U-Bolt Base

RAM® X-Grip® Large Tablet Mount with Handlebar U-Bolt Base

  • Features:
  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 12" tablets
  • Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price244,79 €
285,81 €
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping

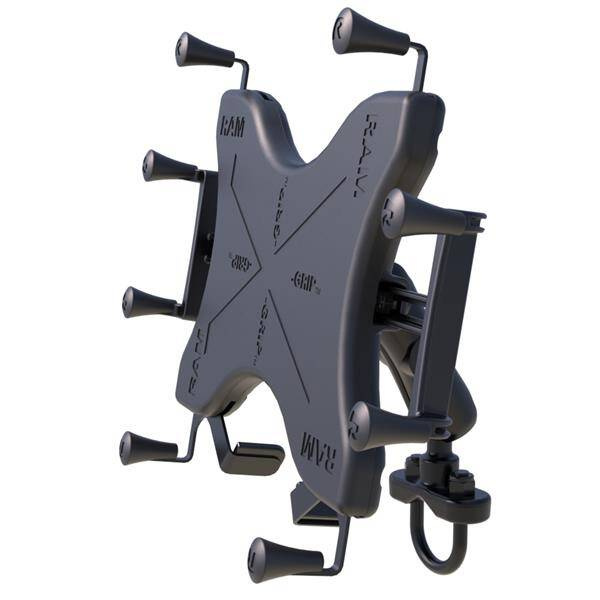

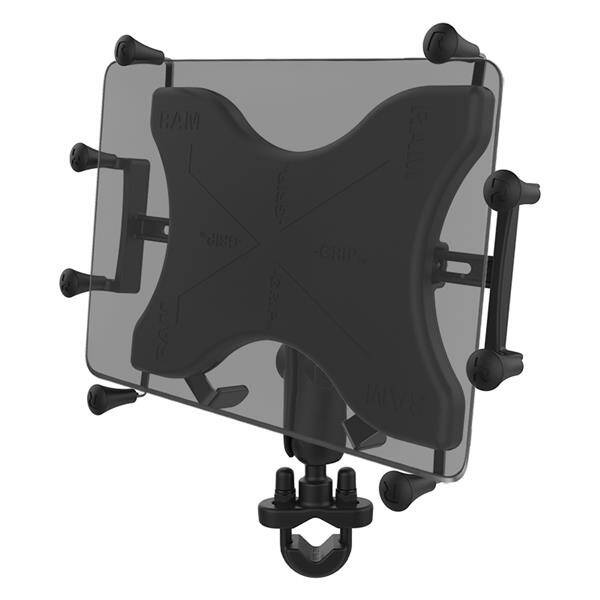

The RAM-B-149Z-UN11U consists of a zinc coated u-bolt base, double socket arm, round base adapter and universal X-Grip clamping cradle for 12" tablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip clamping cradle expands and contracts for perfect fit of most 12" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip.
Symbol
RAM-B-149Z-UN11U
Producer code
793442946769
Warranty
Product Weight
812 g
Hardware Included
Assembly Hardware|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
Holder Dimensions
Max Height: 10.25" (using optional supports)|Width Range: 7.25" - 8.75"|Max Depth: .875"
Clamp Range
.5" - 1.25" diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Diameter Range
.5" - 1.25"
Device or Accessory Type
Tablet
Component parts
RAM-B-149Z-202U
RAM-HOL-UN11U
Compatibility
Apple iPad Pro 12.9 (1st Gen)
Apple iPad Pro 12.9 (2nd Gen)
Apple iPad Pro 12.9 (3rd Gen)
Apple iPad Pro 12.9 (4th Gen)
Apple iPad Pro 12.9 (5th Gen)
Dell Latitude 5285
Google Pixelbook
HP Elite X2 1012 G1
HP Elite X2 1012 G2
HP Pro X2 612
HP Pro X2 612 G1
Lenovo IdeaTab Lynx K3011
Lenovo Miix 720
Lenovo Yoga A12
Microsoft Surface 3
Microsoft Surface Book
Microsoft Surface Pro (2017)
Microsoft Surface Pro 3
Microsoft Surface Pro 4
Microsoft Surface Pro 5
Microsoft Surface Pro 6
Microsoft Surface Pro 7
Microsoft Surface Pro 8
Microsoft Surface Pro X
Samsung Galaxy Book 12"
Samsung Galaxy Pro 12.2
Samsung Galaxy Tab S8 Ultra
Samsung Galaxy TabPro S
Zebra R12 XSLATE
Apple iPad Pro 12.9 (6th Gen)
Socket To Socket Length
3"
Ball Size
B Size (1")
